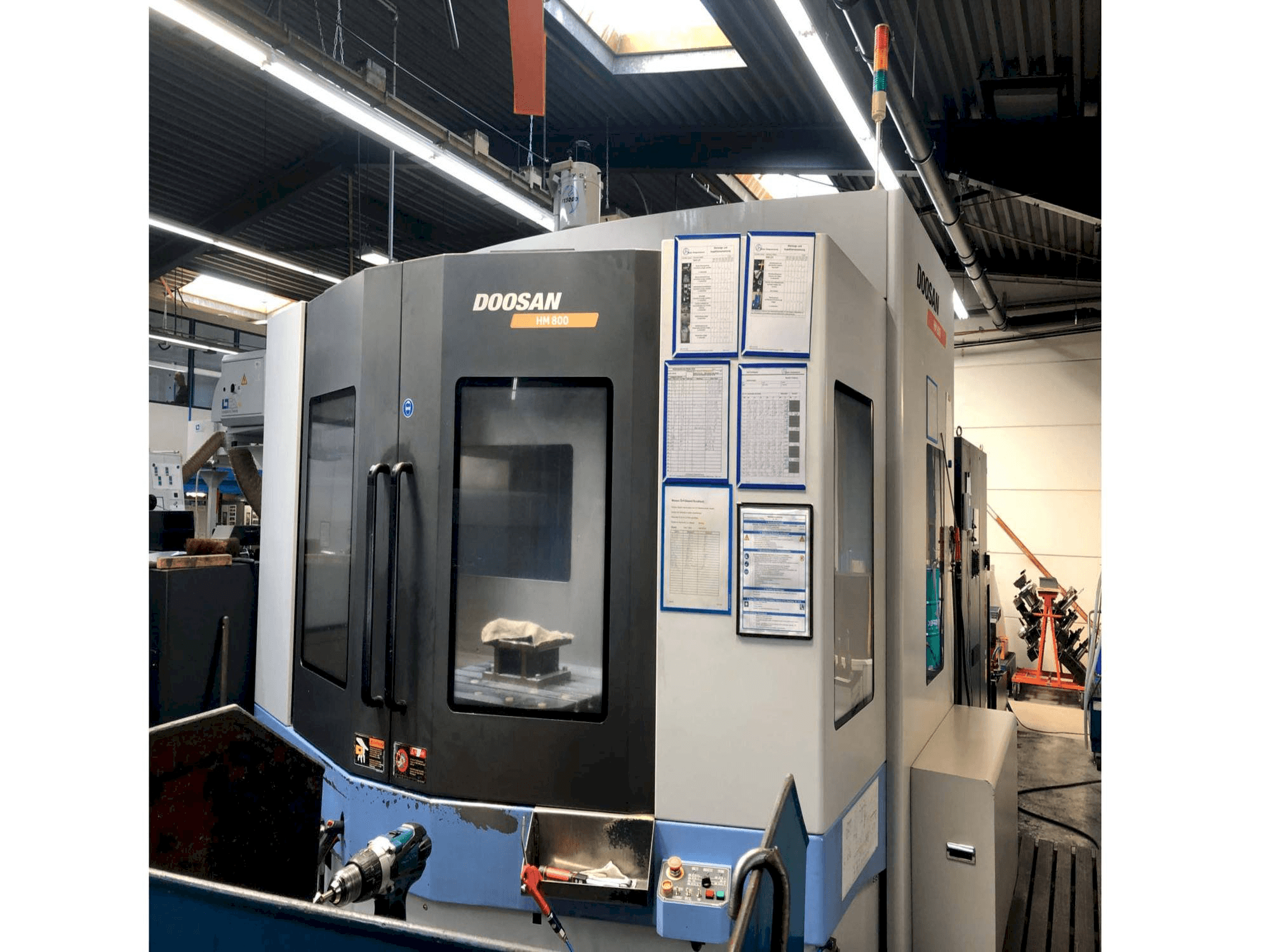

Doosan HM 800 Horizontal Machining center

Show in original language

This Doosan HM 800 Horizontal Machining center was manufactured in the year 2007 in Korea. It is equipped with a FANUC 18 - IM control unit and has 4 axis. The machine has a spindle speed of 20 - 6000 rpm.

Overview

brand: DOOSAN
year: 2007
MODEL: HM 800
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN HM 800

Control Unit

Model: 18 - IM
Brand: FANUC

Main drive

Spindle speed range: 20 - 6000 1/MIN
Spindle motor power: 8,5 -22 kW
Number of axis: 4

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1000 mm

Table

Outer length: 800 mm
Outer width: 800 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max workpiece height: 1200 mm
- - Number of magazine places: 90
- - Tool taper: a50, din 69871 b tool length max. Mm. : 550
- - Tool Ø max. : 250 / with free auxiliary space tool weight max. Kg : 25
- - Macro package
- - Tool offsets: 200
- - Paper belt filter
- - Extraction
- - Schanier belt chip conveyor
- - Machine ran 70% of the time in 2 shifts in 14 years.
Qualitative Machine Benefits:
- - Number of pallets: 2

Extra information

- Optional: around 500 tools available for purchase

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
