➤ Used Kitamura Mycenter H250 - Horizontal Machining Center

Show in original language

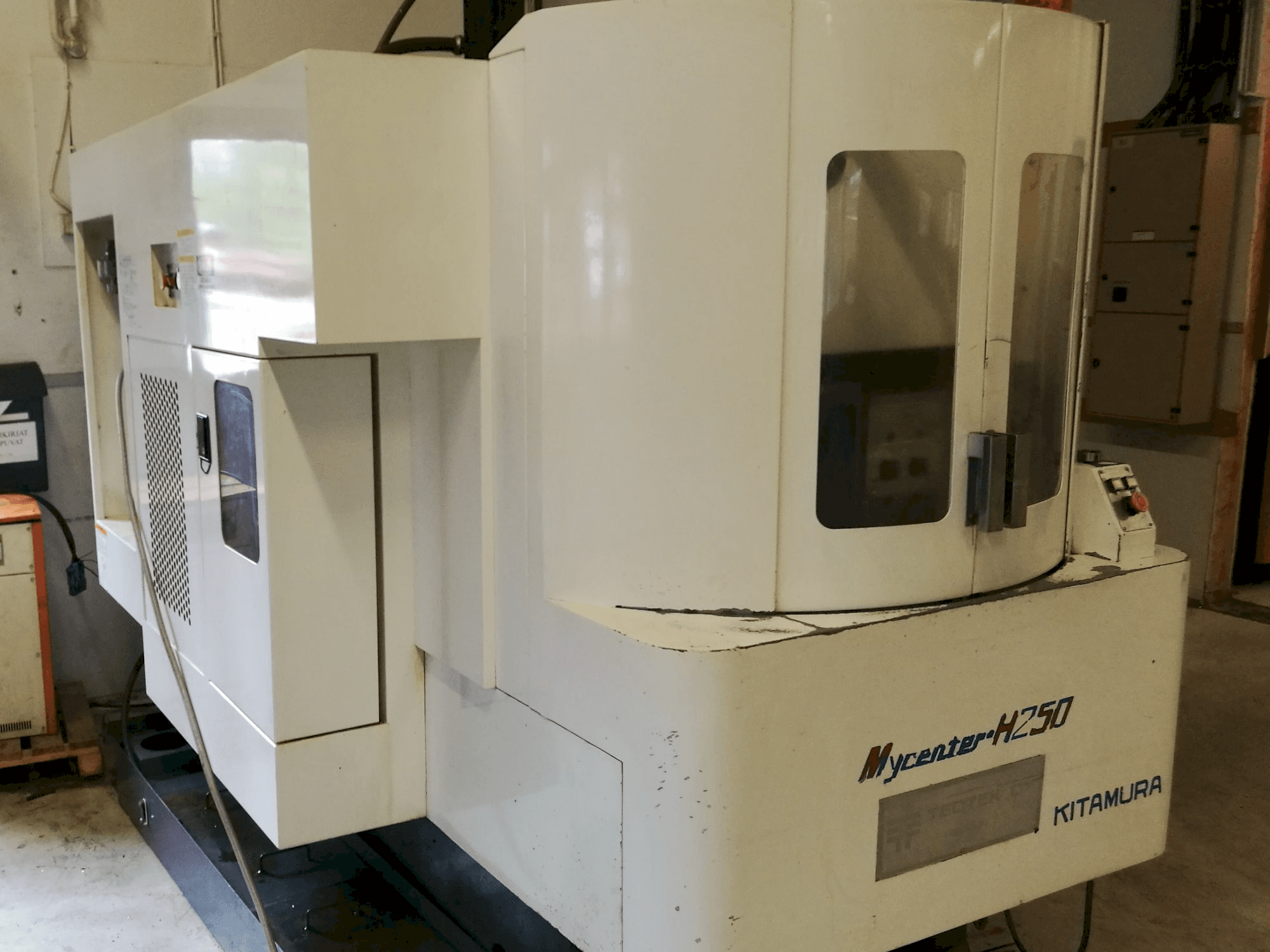

This Kitamura Mycenter H250 Horizontal Machining Center was manufactured in 1997 in Japan. Operated through a YASNAC i80M Control unit, this machine counts with a spindle speed up to 8000 rpm. Toolholders are included as additional equipment within the machine.

Overview

brand: Kitamura
year: 1997
MODEL: Mycenter H250
application type: Milling
Location: Finland
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - Kitamura Mycenter H250

General Data

Measurements width: 1550 mm
Measurements depth: 2850 mm
Measurements height: 2284 mm
Machine weight: 3250 kg

Control Unit

Model: i80M

Main drive

Number of spindles: 1
Spindle speed range: 8000 rpm 1/MIN

Movement

X-AXIS Movement: 305 mm
Y-AXIS Movement: 305 mm
Z-AXIS Movement: 330 mm
B-AXIS Movement: 360 mm

Table

Outer length: 254 mm
Outer width: 254 mm

Tools

Max weight: 2 kg
Max tool diameter: 50 mm
Max tool length: 20 mm

Media

Main electronic connection: 220 V
Power consumption: 8 kVA
Chip conveyor: Yes

Additional equipment

- Toolholders

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
