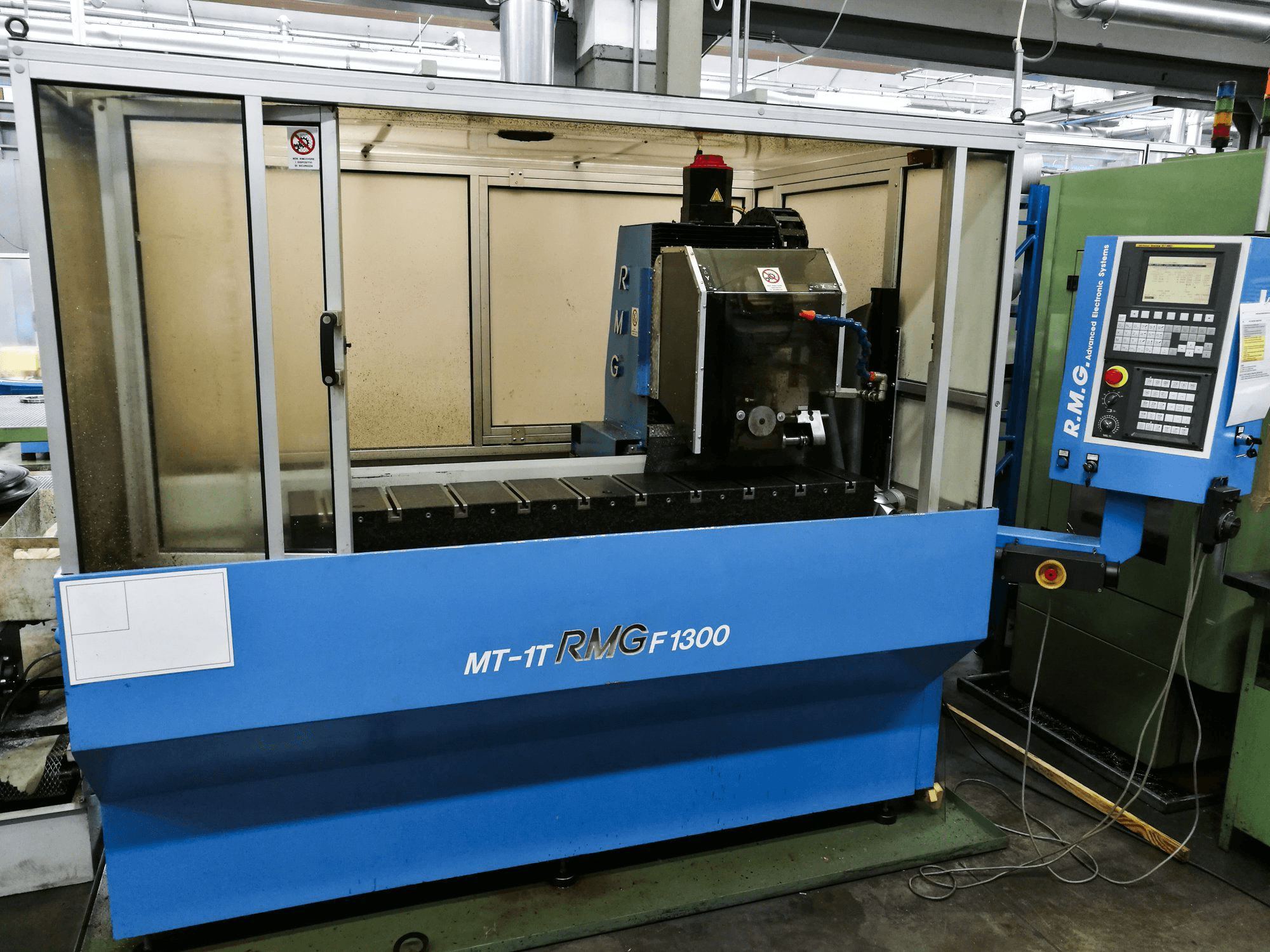

RMG MT-1T-F 1300 Milling Machine

Show in original language

This RMG MT-1T-F 1300 Milling Machine from 2008 has a production record of 16640 working hours and is equipped with a FANUC 0i-MC control unit with included remote control. Between its additional Alberti TCU-1.5 adjustable angle head and long X-Axis, this machine offers a wide range of production possibilities, and has in the past worked mainly with steel parts for the textile industry.

Overview

brand: RMG
year: 2008
MODEL: MT-1T-F 1300
production hours: 16640
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - RMG MT-1T-F 1300

General Data

Measurements width: 5000 mm
Measurements depth: 3500 mm
Measurements height: 2000 mm
Machine weight: 2900 kg

Control Unit

Model: 0i-MC
Remote control: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 2800 1/min
Spindle motor power: 1.8 kW

Movement

X-AXIS Movement: 1285 mm
X-AXIS Backlash: 0.04 mm
Y-AXIS Movement: 140 mm
Z-AXIS Movement: 225 mm
Z-AXIS Backlash: 0.01 mm

Table

Outer length: 1000 mm
Outer width: 250 mm
Number of tslots: 10
Distance between: 100 mm

Media

Main electronic connection: 400 V
Power consumption: 4 kVA
Chip conveyor: Yes

Additional equipment

- Alberti TCU-1 5 Angle head

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
