➤ Used Hyundai Wia F400 - Vertical Machining Center

Show in original language

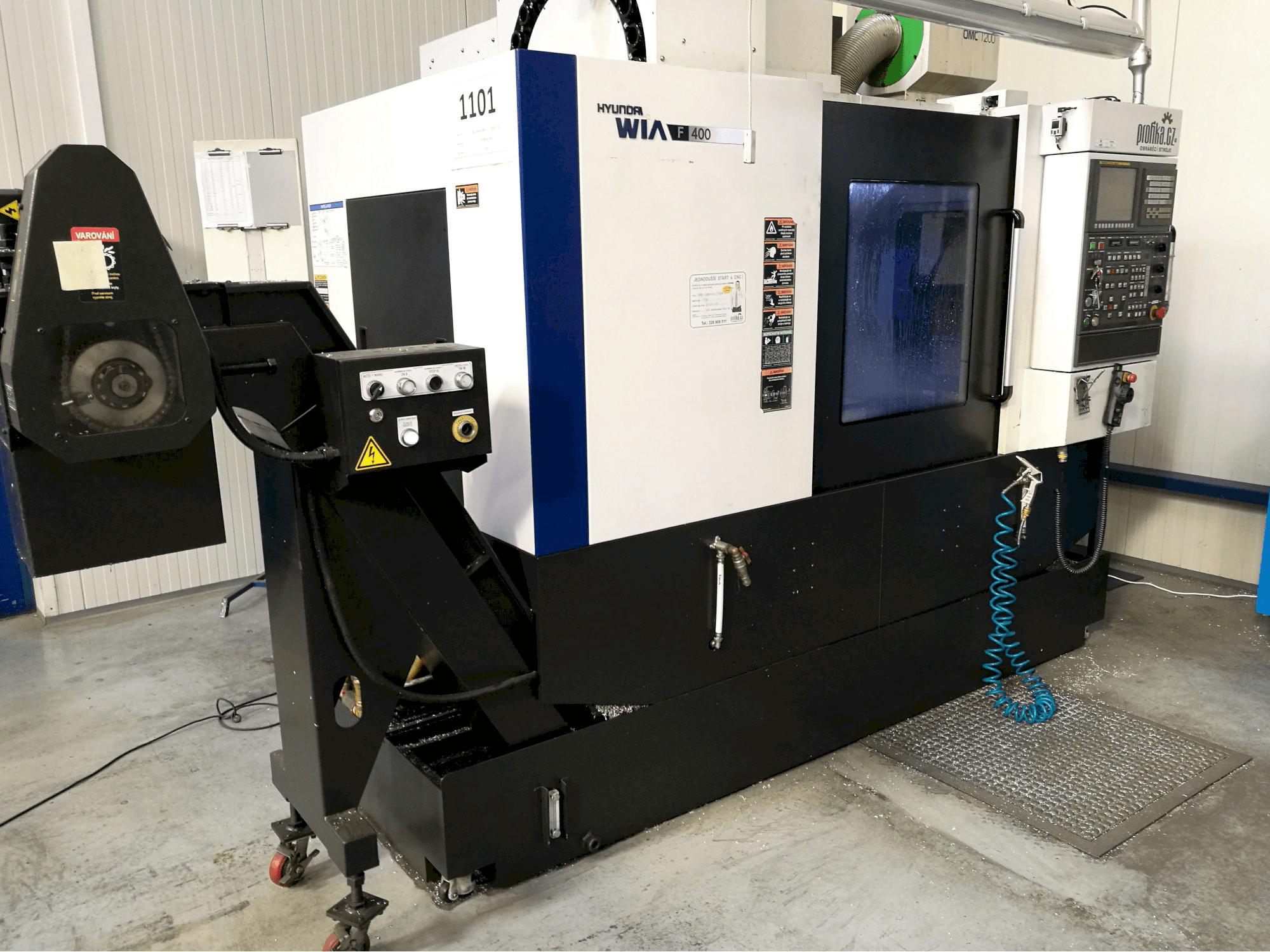

This Hyundai Wia F400 Vertical Machining Center was manufactured in the year 2015 in South Korea and has a production history of only 5600 working hours. Operated through a FANUC i Series Control unit, this machine benefits from a cooling system of 20 bars through the spindle and a rapid feed of 32-32-32 mm/min. As additional equipment, this machine includes a chip conveyor.

Overview

brand: Hyundai Wia
year: 2015
MODEL: F400
production hours: 5600
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Hyundai Wia F400

Control Unit

Model: i Series
CNC main language: Czech
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 60-8000 rpm 1/MIN

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 460 mm
Z-AXIS Movement: 520 mm

Workpiece

Workpiece weight: 600 kg

Table

Outer length: 1000 mm
Outer width: 460 mm

Tools

Slots in storage: 24

Media

Main electronic connection: 380 V /50 Hz
Power consumption: 20 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Chip Conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
