- Bridgeport VMC 500 XP Machining Center

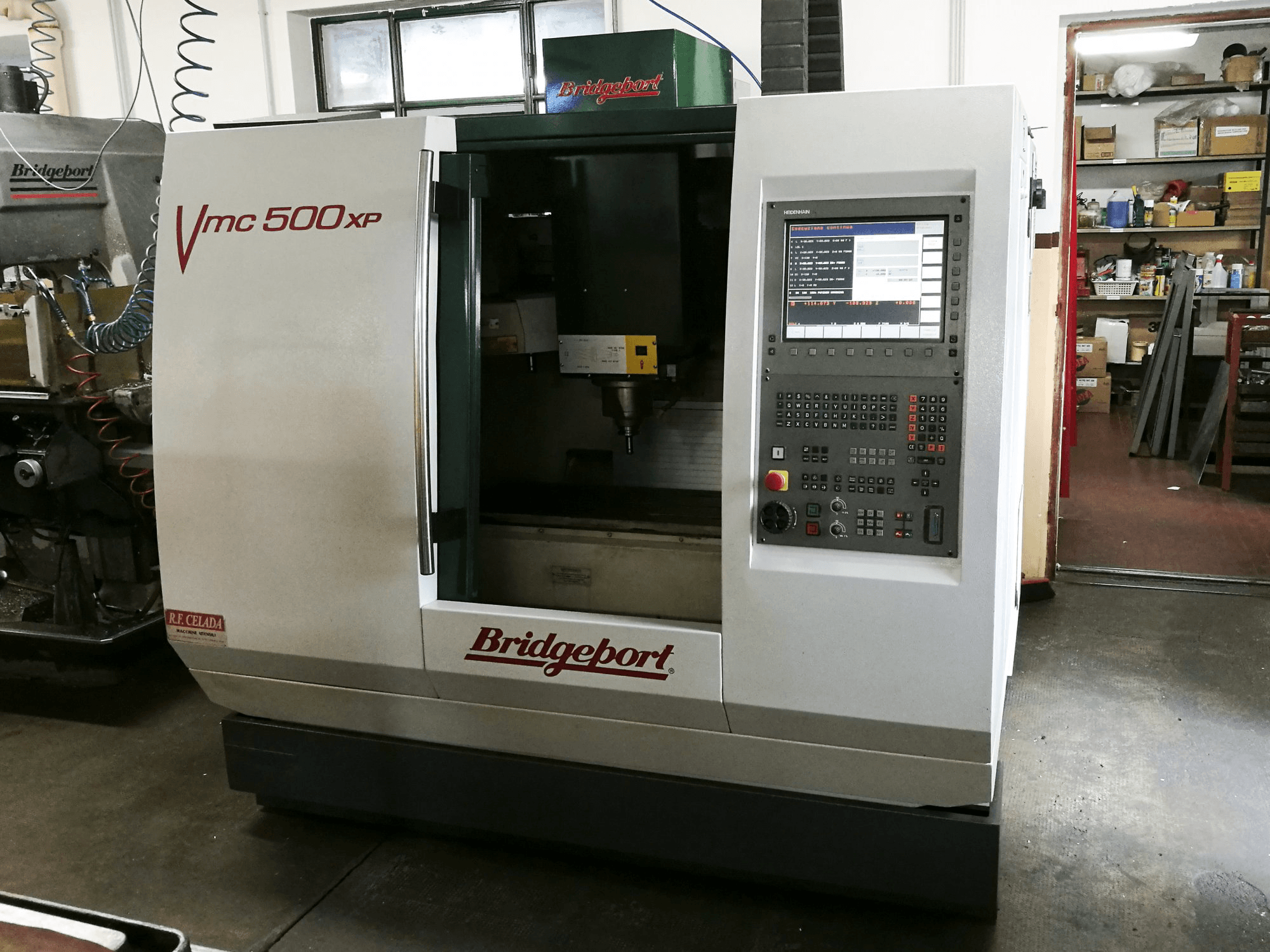

This Bridgeport VMC 500 XP Machining Center was manufactured in 2003 and has been working for approximately 29120 production hours since then. The machine is equipped with the HEIDENHAIN iTNC 530 control unit and fits well in any kind of environment thanks to its compact design. This equipment’s guides stand in an excellent condition, and the machine itself has received a new coat of paint. Furthermore, it features a 14x automatic tool changer and includes 21x tool holders as additional equipment.
Overview
- brand: Bridgeport
- year: 2003
- MODEL: VMC 500 XP
- production hours: 29120
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - Bridgeport VMC 500 XP
General Data
- Measurements width: 2300 mm
- Measurements depth: 2100 mm
- Measurements height: 2290 mm
- Machine weight: 2500 kg
Control Unit
- Model: iTNC 530
- Brand: HEIDENHAIN
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/min
- Spindle motor power: 10 kW
- Tool taper: BT 40
Movement
- X-AXIS Movement: 500 mm
- X-AXIS Rapid traverse: 43 m/min
- X-AXIS Backlash: 0.05 mm
- Y-AXIS Movement: 340 mm
- Y-AXIS Rapid traverse: 43 m/min
- Y-AXIS Backlash: 0.06 mm
- Z-AXIS Movement: 520 mm
- Z-AXIS Rapid traverse: 20 m/min
Table
- Outer length: 840 mm
- Outer width: 360 mm
- TSlots size: 18 mm
- Number of tslots: 3
Tools
- Slots in storage: 14
- Max weight: 6 kg
- Max tool diameter: 75 mm
- Max tool length: 250 mm
Media
- Main electronic connection: 380 V / 3 P / 50 Hz
- Power consumption: 10 kVA
- Air pressure: 6 bar
Additional equipment
- - 21x Tool holders
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
