- Okuma MB-46VAE Vertical Machining center

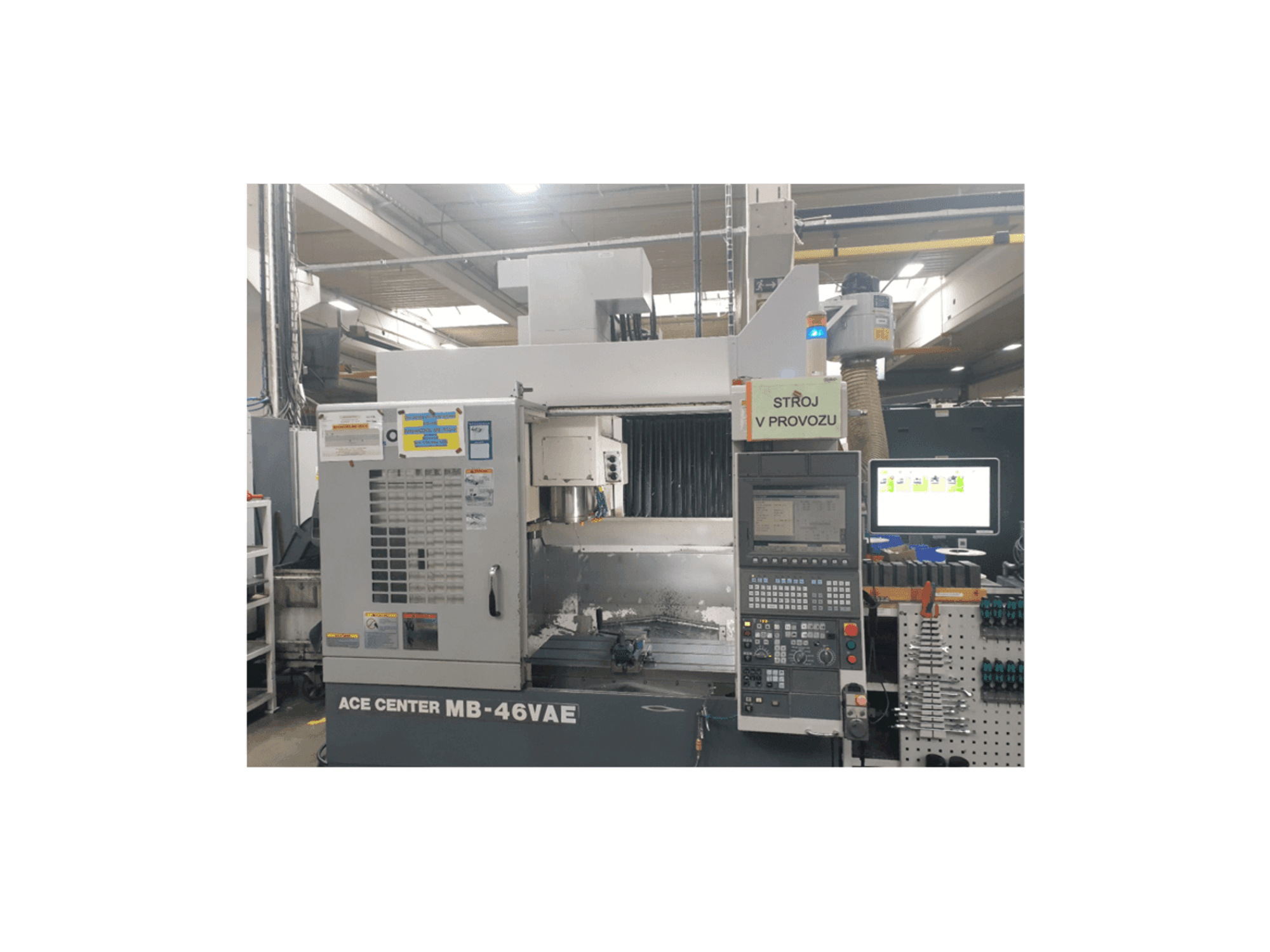

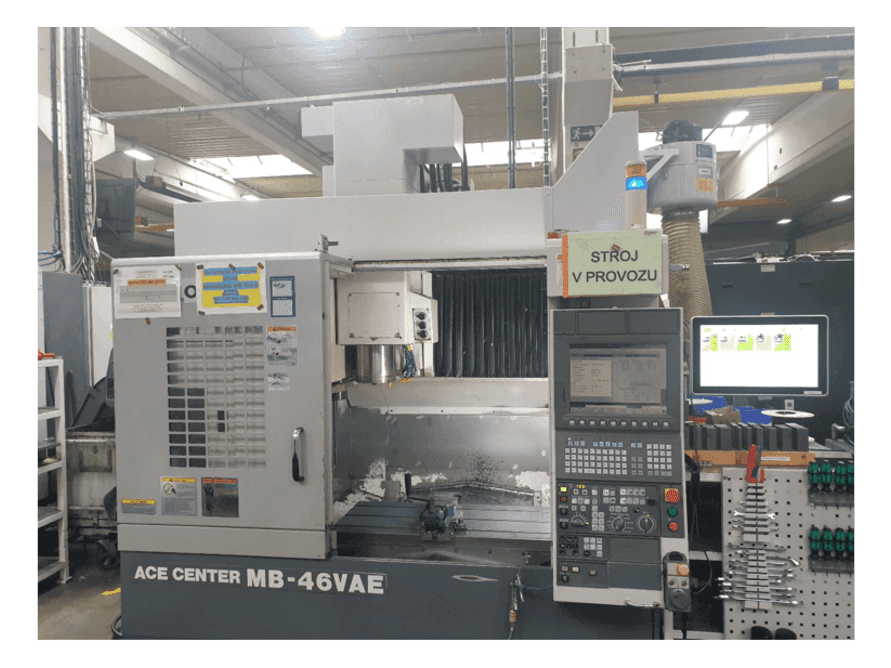

This Okuma MB-46VAE Vertical Machining center was manufactured in the year 2007 in Japan. It is equipped with an Okuma OSP-P200M control unit and has 3 axis. The machine has a spindle speed of 15000 rpm.
Overview
- brand: Okuma
- year: 2007
- MODEL: MB-46VAE
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: OKUMA
Technical Information - Okuma MB-46VAE
General Data
- Measurements width: 2805 mm
- Measurements depth: 2160 mm
- Measurements height: 2746 mm
- Machine weight: 7500 kg
Control Unit
- Model: OSP-P200M
- Brand: OKUMA
Main drive
- Number of spindles: 1
- Spindle speed range: 15000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 762 mm
- Y-AXIS Movement: 460 mm
- Z-AXIS Movement: 460 mm
Workpiece
- Workpiece weight: 700 kg
Table
- Outer length: 1000 mm
- Outer width: 460 mm
Tools
- Slots in storage: 32
- Max weight: 8 kg
- Max tool diameter: 90/125 mm
- Max tool length: 300 mm
- Type of tool holder: SK 40
Media
- Power consumption: 37,2 kVa
Additional Information
- Technical Machine Benefits:
- - Min. -max. Height under spindle 150-610 mm
- - Feedrate 32 m/min.
- - Rapid feedrate x/y: 40, z: 32 m/min.
- - Spindle motor power 22 kw
- - Through spindle coolant
- - Mist collector
- - Chip conveyor
- Qualitative Machine Benefits:
- - Good condition, regularly maintained
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
