DECKEL FP5NC Milling Machine

Show in original language

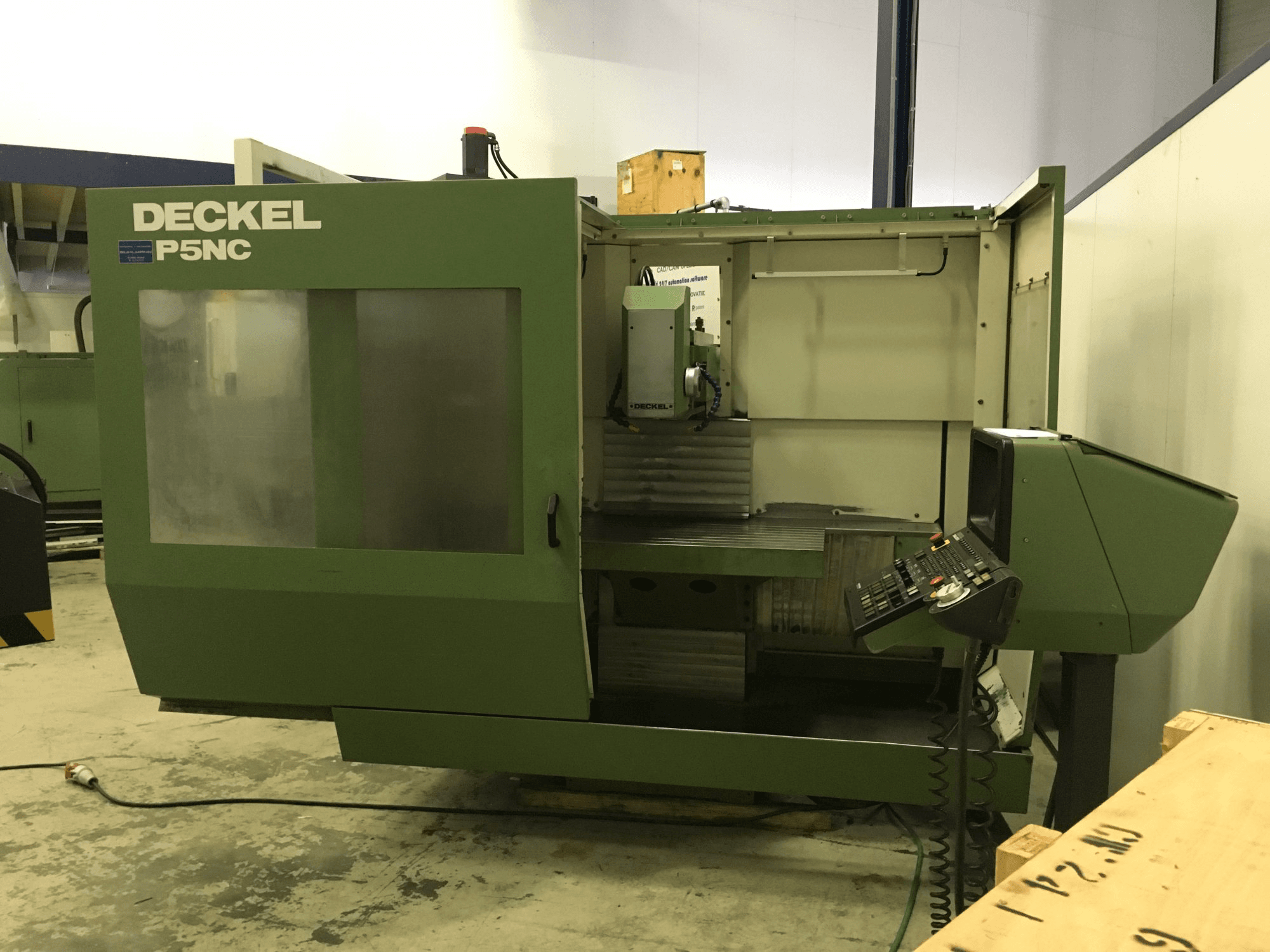

This DECKEL FP5NC Milling Machine was constructed in Germany in 1990 and has been operative for approximately 26000 production hours since then. Operated through a Grundig Dialog 11 Control unit, this machine has mainly worked with steel and aluminium during the past.

Overview

brand: DECKEL
year: 1990
MODEL: FP5NC
production hours: 26000
application type: Milling
Location: Netherlands
machine type: Universal Machining Centre
availability: Sold

Technical Information - DECKEL FP5NC

General Data

Measurements width: 3000 mm
Measurements depth: 2500 mm
Measurements height: 2400 mm
Machine weight: 4200 kg

Control Unit

Brand: Grundig
Model: Dialog 11

Main drive

Number of spindles: 1
Spindle speed range: 6300 1/min

Movement

X-AXIS Movement: 710 mm
Y-AXIS Movement: 445 mm
Z-AXIS Movement: 600 mm

Workpiece

Workpiece drm: 80 mm
Workpiece weight: 600 kg

Table

Outer length: 900 mm
Outer width: 550 mm

Tools

Max weight: 450 kg
Max tool diameter: 130 mm
Max tool length: 220 mm

Media

Main electronic connection: 400 V
Power consumption: 20 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
