LVD STRIPPIT Global 30 1525 Turret Punching Machine

Show in original language

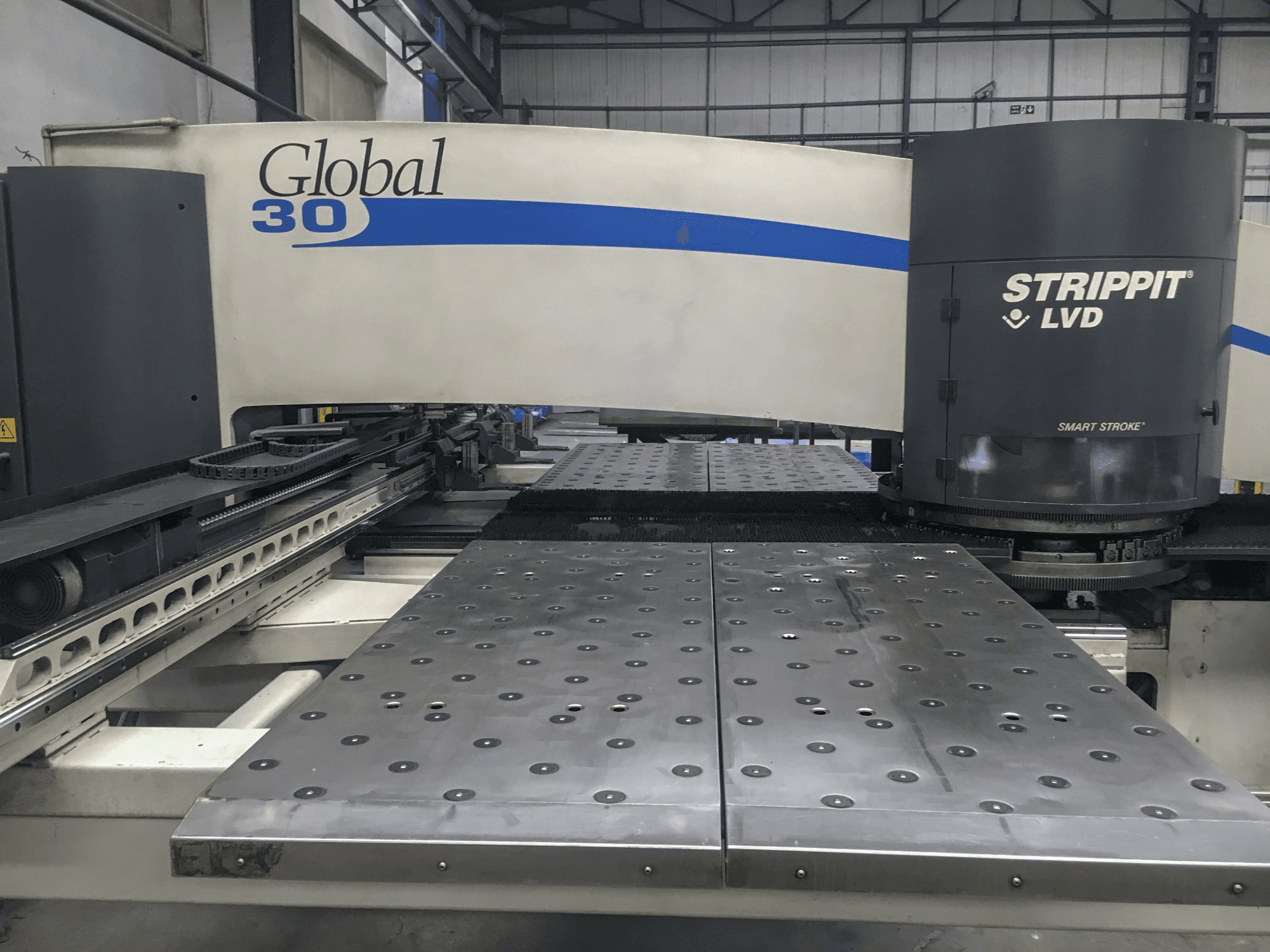

This LVD STRIPPIT Global 30 1525 Turret Punching Machine was manufactured in 2005 in the United States and has a working record of 25112 production hours. Operated through a GE FANUC 180i-PB Control unit, this model stands out due to its working table equipped with brushed and balls for scratch-free sheet handling and has been working mainly with carbon steel sheets between 3-4 mm of thickness.

Overview

brand: LVD
year: 2005
MODEL: STRIPPIT Global 30 1525
production hours: 25112
application type: Punching
Location: Turkey
machine type: CNC Punch Press
availability: Sold
control unit brand: FANUC

Technical Information - LVD STRIPPIT Global 30 1525

General Data

Measurements width: 6133 mm
Measurements depth: 5164 mm
Measurements height: 2330 mm
Machine weight: 18329 kg

Control Unit

Brand: FANUC
Model: Series 180i-PB

Main drive

Punching force: 300 kN
Maximum sheet thickness: 6.35 mm

Movement

X-AXIS Movement: 2576 mm
Y-AXIS Movement: 1611 mm

Workpiece

Workpiece x: 1524 mm
Workpiece y: 2500 mm
Workpiece weight: 100 kg

Tools

Number of index: 3
Number of stations: 30

Max Material thickness

Steel: 6.35 mm

Media

Main electronic connection: 400 V / 3 P

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
