➤ Used TRUMPF Trumatic TC200R For Sale | gindumac.com

Show in original language

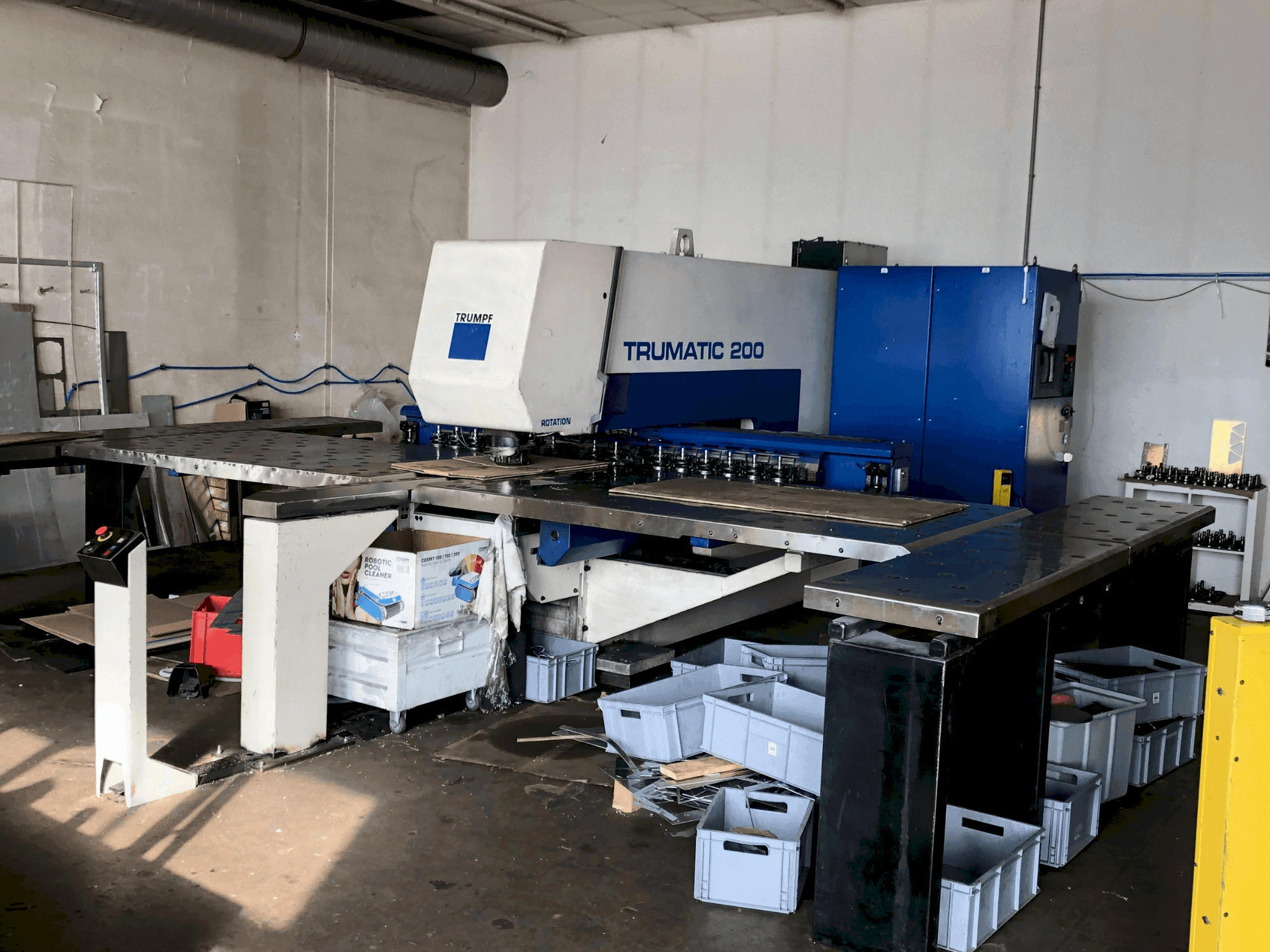

This TRUMPF Trumatic TC200R was manufactured in 1998. A robust CNC punching machine featuring a BOSCH CNC TYPE 3 control system, it offers a large working area with X-axis travel of 2500mm and Y-axis travel of 1250mm. It supports 360° tool rotation and has 17 available T-slots. An excellent opportunity to buy this TRUMPF Trumatic TC200R CNC punching machine. Contact us for further details regarding this CNC punching machine.

Overview

brand: TRUMPF
year: 1998
MODEL: Trumatic TC200R
application type: Bending & Punching
Location: Austria
machine type: CNC Punching Machine
availability: Immediately
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic TC200R

General Data

Measurements width: 4100 mm
Measurements depth: 6000 mm
Measurements height: 2070 mm
Machine weight: 8000 kg

Control Unit

Brand: BOSCH
Model: CNC TYPE 3

Main drive

Number of axis: 2

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm

Table

Number of tslots: 17

Tools

Number of index: 1

Additional equipment

- Number of tools: 1
- 17 available T-slots
- 360° tool rotation
- Optional: wide range of accessories
- quickset with tools and spanners
- 2x multitool 4-fold / 25x scaffolding cassettes / 50 adjustment rings / 50 matrix holders / 25x die plates
- quicksharp complete + 1x spare parts dispenser / 2x beit table / 100x scraper rings / 2x multitool 6-fold
- 2 complete cutting tools / approx. 350 different tools / 1 set of forming tools

Additional Information

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
