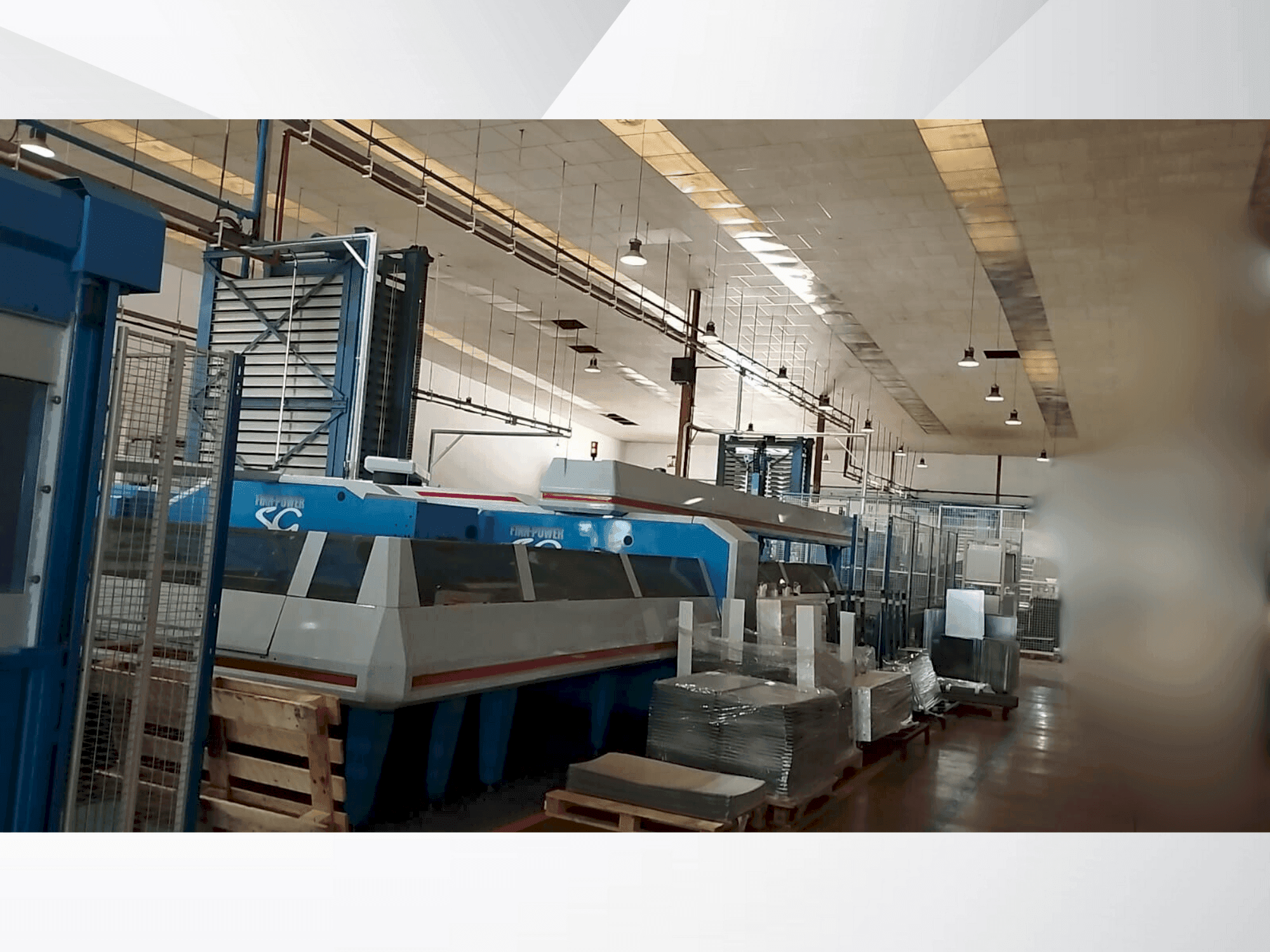

Front view of Prima Power Shear Genius 1530 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Finn-Power Shear Genius 1530

Finn-Power - Shear Genius 1530ES-PUN-PRI-2003-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Finn Power Shear Genius 1530 | Punching Machine

Show in original language

This Finn Power Shear Genius 1530 was manufactured in 2003. A robust punching shearing systems bending machine featuring a 300 kN force, 20 turret stations, and a maximum punch diameter of 88.9 mm. It handles a maximum sheet size of 3081 mm x 1528 mm and supports up to 200 kg. Ideal for materials like aluminum up to 5 mm and steel up to 3 mm. A great opportunity to buy this Finn Power Shear Genius 1530 punching machine. Genius shear line connected to bce5 panelling machine (PSSB punching shearing systems bending. Contact us for further details regarding this punching machine.

Overview

brand: Finn-Power
year: 2003
MODEL: Shear Genius 1530
application type: Punching
Location: Spain
machine type: Punch-Laser Combination
availability: Sold

Technical Information - Finn-Power Shear Genius 1530

General Data

Machine weight: 22800 KG

Main drive

Punching force: 300 kN
Maximum sheet thickness: 8 mm

Movement

X-AXIS Movement: 3081 mm
Y-AXIS Movement: 1528 mm

Workpiece

Workpiece x: 3081 mm
Workpiece y: 1528 mm
Workpiece weight: 200 kg

Table

Max punching diameter: 88.9 mm

Tools

Number of index: 10 pcs

Max Material thickness

Steel: 3 mm
Stainless steel: 3 mm
Aluminum: 5 mm

Additional equipment

- Clamps with automatic positioning: 3 pcs

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum punch length: 90 mm
- - Maximum tool rotation: 58 min⁻¹
- - Repositioning x: 2480 mm (x2 + x5242)
- - Repositioning y: 1500 mm (y2 + y1535)
- - High force and precision punching large working area with repositioning capability
Qualitative Machine Benefits:
- - Robust design suitable for various materials and thicknesses automatic positioning clamps for improved accuracy

Extra information

- Machine still under power
