GINDUMAC
Products
Sheet Metal Machinery

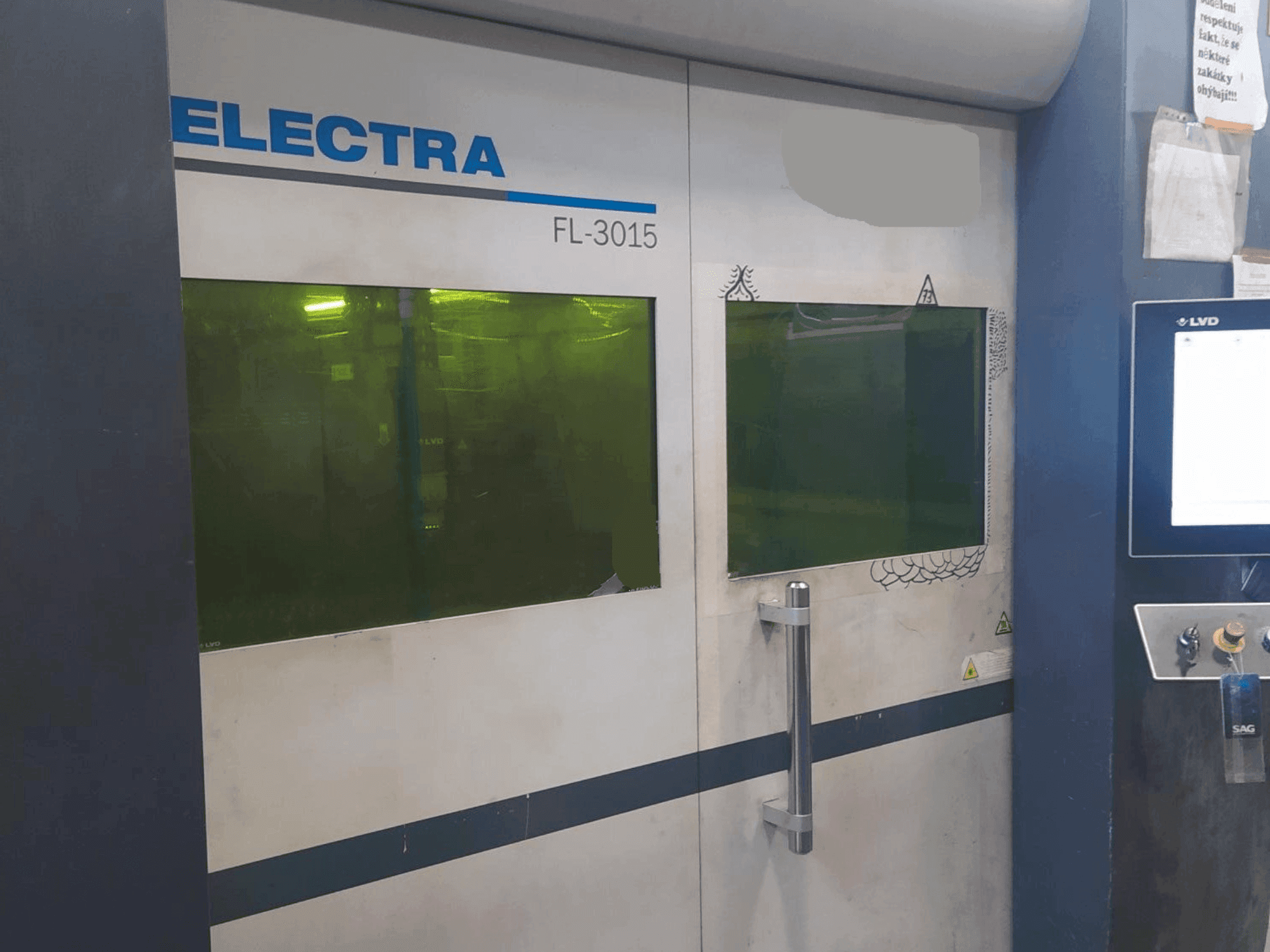

LVD ELECTRA FL-3015 Fiber laser cutting machine

Show in original language

This LVD ELECTRA FL-3015 Fiber laser cutting machine was manufactured in 2015 and is equipped with a 4 kW FL 040 Rofin laser with Precitec cutting head. The machine is operated with a Siemens Sinumerik 840D control unit and can cut up to 10mm ST3, 8mm INOX and 6 mm PA11. It comes with a Rittal cooling unit. The table cutting area is 3000 x 1500 mm with X, Y, Z axis movement range of 3080 x 1555 x 100 mm. In January 2024 the cutting head was replaced. This Fiber laser cutting machine is in very good conditions with only 12,000 cutting hours. It is still under production and can be visited at any time.

Overview

brand: LVD
year: 2015
MODEL: ELECTRA FL-3015
production hours: 12000
application type: Cutting
Location: Czech Republic
machine type: Fiber Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - LVD ELECTRA FL-3015

General Data

Machine weight: 15000 kg

Control Unit

Model: SINUMERIK 840D sl
Brand: SIEMENS

Main drive

Laserpower: 4 KW
Laser type: Fiber
Maximum sheet thickness: ST3: 10 mm, INOX: 8 mm, PA11: 6 mm
Laser brand: FL 040 Rofin

Movement

X-AXIS Movement: 3080 MM
Y-AXIS Movement: 1555 MM
Z-AXIS Movement: 100 MM

Table

Outer length: 3000 mm
Outer width: 1500 mm

Max Material thickness

Steel: 10 mm
Stainless steel: 8 mm
Aluminum: 6 mm

Machine specific data

Laser Cutting Head: PRECITEC

Additional equipment

- Cooling Unit: Rittal

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table cutting area: 3000 x 1500 mm
- - X, y, z axis movement range: 3080 x 1555 x 100 mm
- - Rapid feed speed: 170 m/min
- - Maximum thickness of cut material: st3: 10 mm, inox: 8 mm, pa11: 6 mm
- - Laser source: fl 040 rofin
- - Cutting head: precitec
Qualitative Machine Benefits:
- - 4kw fiber laser
- - 12. 000 cutting hours
- - 01/2024 new cutting head

Extra information

- Machine is under power and can be inspected at any time

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
