LVD PARMA 1225 TK Punching Machine

Show in original language

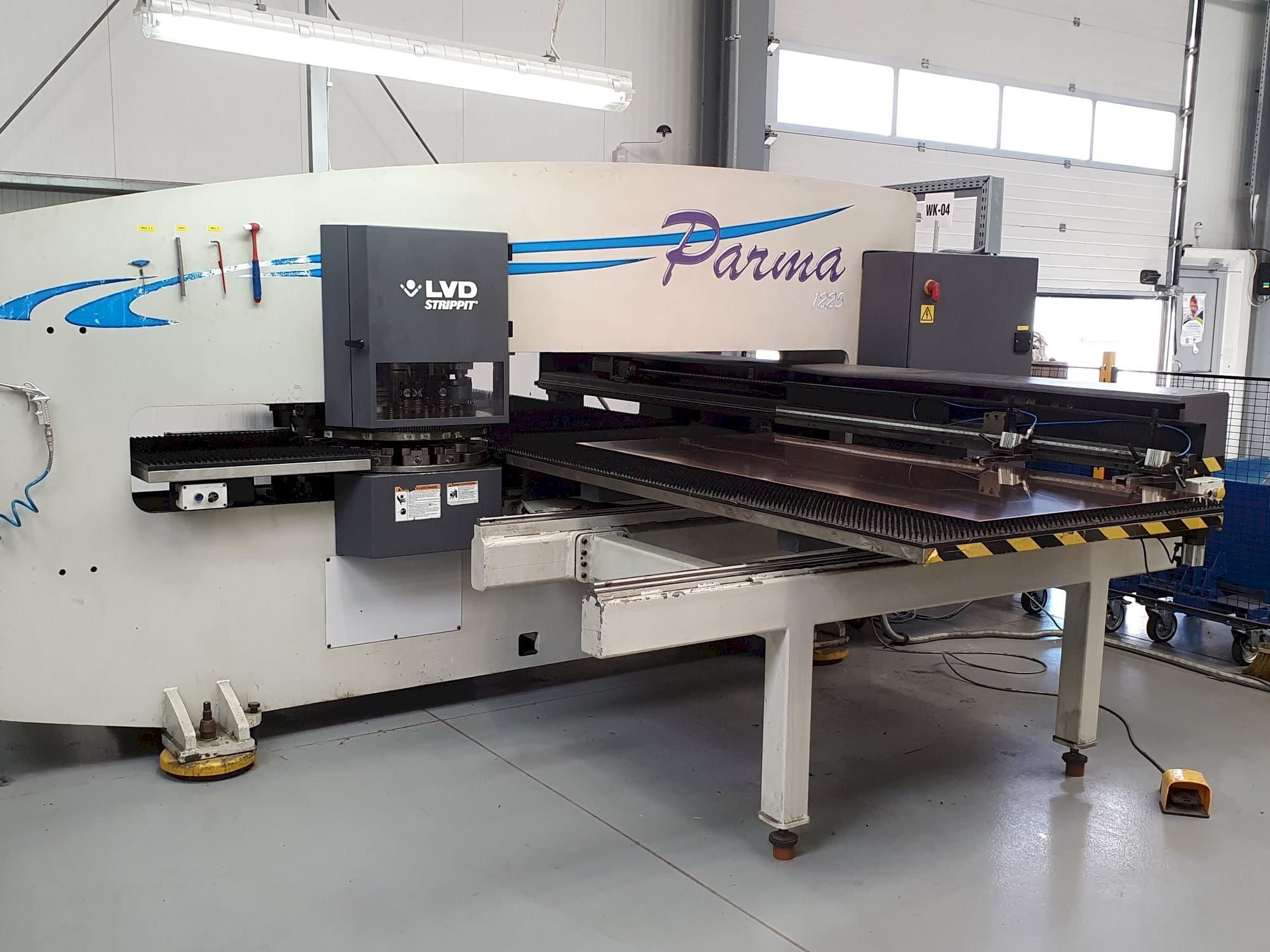

This LVD PARMA 1225 TK Punching Machine was built in the year 2007 in Belgium. The model is operated through a GE Fanuc Series Oi-PC control unit. This machine comes with a punching force of 200 kN. It includes a set of tools for 21 stations (a set for full turret). It presents very good working conditions, serviced always by LVD.

Overview

brand: LVD
year: 2007
MODEL: PARMA 1225 TK
application type: Punching
Location: Poland
machine type: CNC Punch Press
availability: Sold

Technical Information - LVD PARMA 1225 TK

General Data

Measurements width: 5050 mm
Measurements depth: 4500 mm
Measurements height: 2150 mm
Machine weight: 10000 kg

Main drive

Punching force: 200 kN

Tools

Number of stations: 21

Media

Main electronic connection: 400V - 50 Hz
Power consumption: 14.3 kW

Additional Information

Machine history

Material type: Aluminum
Material thickness: 6,35 mm

Machine Benefits

Technical Machine Benefits:
- - The maximum stroke of the x axis: 2550 mm
- - The maximum stroke of the y axis: 1299 mm
- - The dimensions of the processed sheet: 1250 x 2500 mm
- - Spacing of clamps: 1900mm
- - Punching performance: 88. 9 mm diameter for 2 mm mild steel, 30. 0mm diameter for 6mm mild stee
- - Linear positioning accuracy: ± 0. 1 mm
- - Rotational positioning accuracy: ± 0. 05 deg
Qualitative Machine Benefits:
- - Full technical documentation, including the user manual and service docs.
- - Serviced always by lvd poland

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
