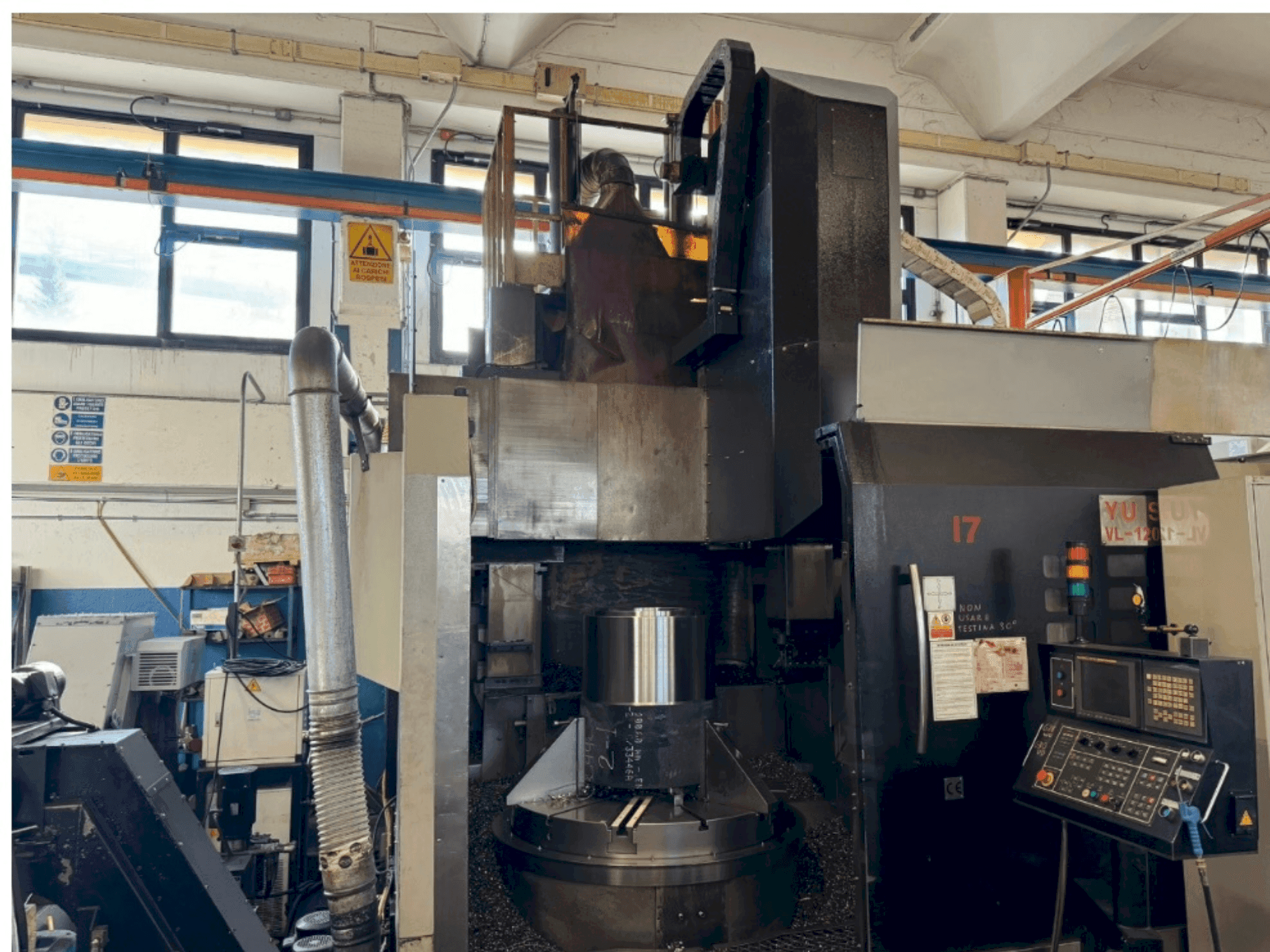

YU SHINE - YS-VL-1200 ATC+CIT-TUR-YUS-2008-00001

Additional equipment

• - Perimeter Enclosure with Partial Upper Cover
• - Air Conditioner for Table Drive System
• - Automatic Cooling System External to Tool Holder
• - Coolant Collection Tank, Capacity: 700 Liters
• - Oil Separator
• - Hydraulic Unit for Service Power Supply, Capacity: 100 Liters
• - Automatic Lubrication System
• - Machine-Mounted Electrical Cabinet with Air Conditioner
• - End-of-Cycle Alarm Light
• - Work Area Lighting Lamp

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Special table nose
  • - Manual self-centering chuck with 4 independent jaws, Ø 1200 mm
  • - Continuously variable table rotation speed: 2-300 mm
  • - Table motor power (cont. /30 min. ): 37/45 kw
  • - Max. Table motor torque (30 min. ): 12500 nm
  • - Hydraulic stroke of movable crossbeam (4 steps of 200 mm): 800 mm
  • - Hydraulic tool holder clamping via din 69871-a50
  • - Automatic tool changer: fixed position pick-up
  • - Tool change time: approx. 30 s
  • - Max. Turning length (using movable crossbeam stroke): 1250 mm
• Qualitative Machine Benefits:
  • - Transformer
  • - Installation equipment
  • - Toolbox with essential spare parts
  • - Fanuc cnc features – model 0i-tc
  • - Ac motors and digital drives for spindle and axes (fanuc)
  • - Controlled axes: x-z
  • - Display type: 10. 4” color lcd
  • - Extended keyboard
  • - Fanuc manual guide-i standard conversational programming
  • - Graphic tool path display

Extra information

• - Machine still under power. The message display is in Italian, and the machine supports ISO code programming as standard. It allows both absolute and incremental coordinate programming and features constant cutting speed (G96). Additionally, it includes roughing, finishing, and threading cycles (G70-G76) as standard.
