MORI SEIKI - ZL-203SMCIT-TUR-MOR-2002-00003
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- MORI SEIKI ZL-203SMC Lathe

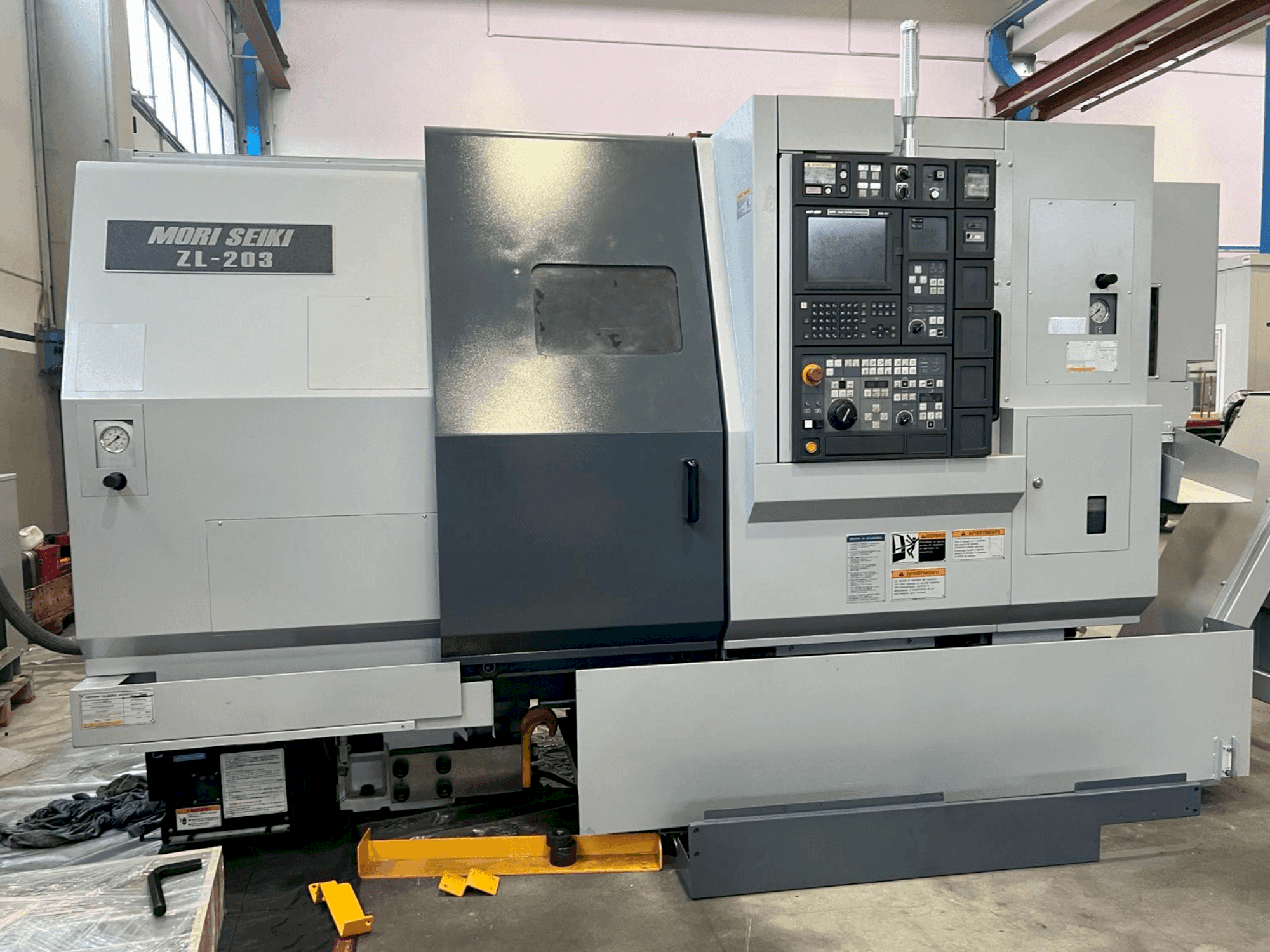

This MORI SEIKI ZL-203SMC Lathe was manufactured in the year 2002. It is equipped with 3 axis, 2 turrets (static positions and driven tools) and a spindle speed of 4000 rpm. It will be delivered with a chip conveyor belt, cooling tank, automatic workpiece unloading system, 3 axial driven tools, 2 radial driven tools, 3 boring bar holders, detachable presetting arm and a collet chuck.
Overview
- brand: MORI SEIKI
- year: 2002
- MODEL: ZL-203SMC
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- availability: Immediately
Technical Information - MORI SEIKI ZL-203SMC
General Data
- Measurements width: 4000 mm
- Measurements depth: 2150 mm
- Measurements height: 2200 mm
- Machine weight: 5850 kg
Movement
- X-AXIS Movement: 235 mm HD1 / 175 mm HD2
- Z-AXIS Movement: 520 mm HD1 / 490 mm HD2
- B-AXIS Movement: 505 mm
Additional equipment
- - Chip conveyor belt
- - Cooling tank
- - Automatic workpiece unloading system
- - 3 axial driven tools, 2 radial driven tools, 3 boring bar holders
- - Detachable presetting arm Collet chuck + chuck
Additional Information
- Technical Machine Benefits:
- - Spindle diametre: 350 mm
- - Max. Diametre machinable: 390 mm
- - Max. Length machinable: 424 mm
- - Spindle hole: 65 mm hd1, 51 mm hd2
- - Max. Spindle rpm: 4000 rpm hd1, 4000 rpm hd2
- - Power on spindle: 11 kw hd1, 7. 5 kw hd2
- - Driven tool speed: 4000 rpm hd1, 3000 rpm hd2
- - Turret 1: 12 static pos. And driven tool
- - Turret 2: 8 static pos. And driven tool
- - Floor space required: 2200 mm
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
