KOVOSVIT MAS - SP 430MCCZ-TUR-KOV-2011-00002

Name: KOVOSVIT MAS SP 430MC
Brand: KOVOSVIT MAS
SKU: CZ-TUR-KOV-2011-00002
Price: 5153200 INR
Availability: InStock

Rs. 5,153,200

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used KOVOSVIT MAS SP 430MC For sale | gindumac.com

Show in original language

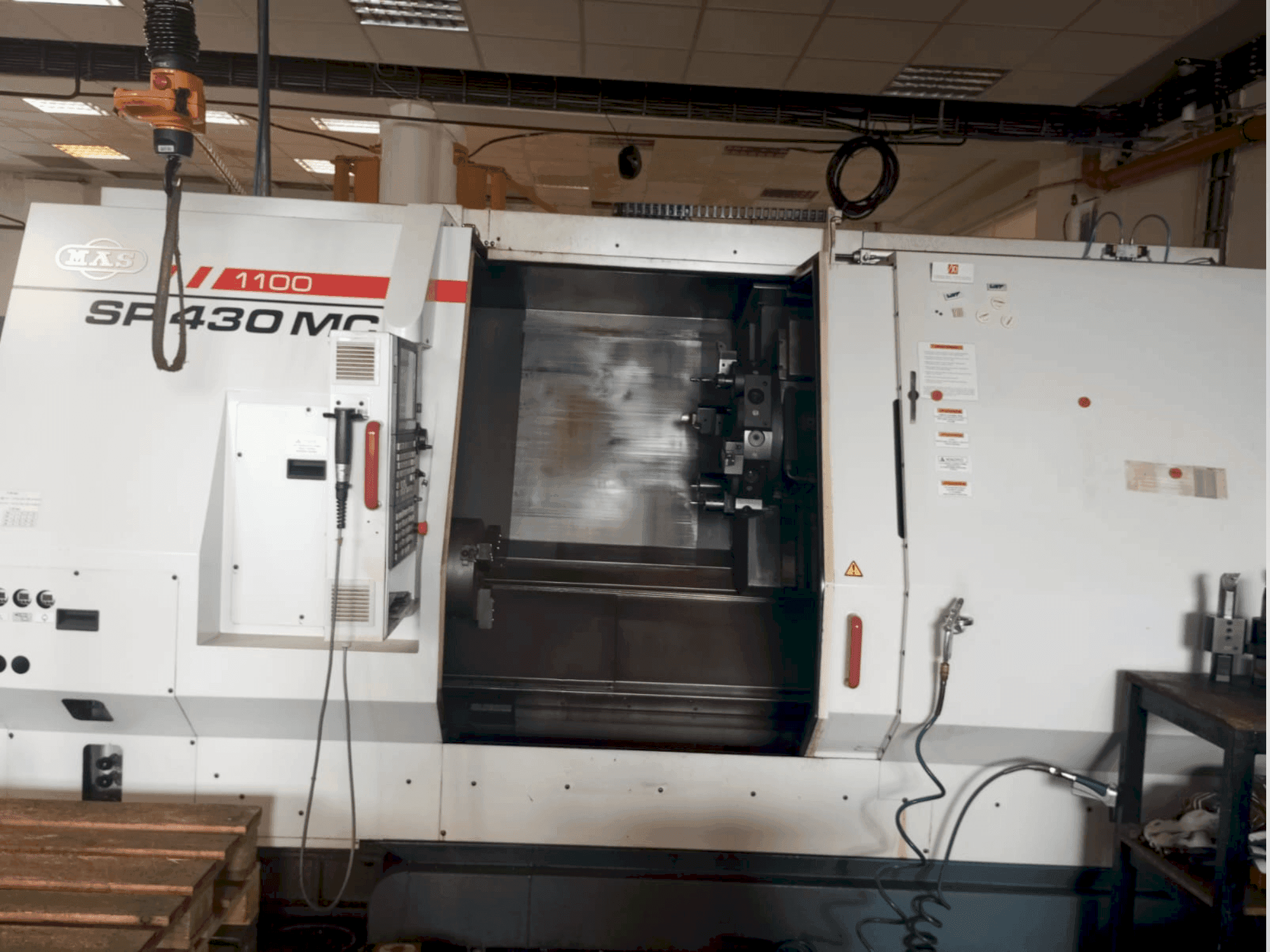

This 3-axis KOVOSVIT MAS SP 430MC lathe was manufactured in 2011. It features a maximum turning length of 1100 mm and a turning diameter up to 550 mm. The main spindle supports a bar passage of 90 mm. Equipped with a 12-position tool head and a VDI diameter of 50 mm, it also includes a Fanuc Oi TD control system. Ideal for precision tasks with its robust 12,000 kg frame. Contact us for further details regarding this lathe.

Overview

brand: KOVOSVIT MAS
year: 2011
MODEL: SP 430MC
application type: Turning
Location: Czech Republic
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - KOVOSVIT MAS SP 430MC

General Data

Measurements width: 2594 MM
Measurements depth: 5591 MM
Measurements height: 2402 MM
Machine weight: 12000 KG

Control Unit

Model: Oi TD
Brand: FANUC

Main drive

Spindle speed range: 3150 1/MIN
Spindle motor power: 28 / 42 kW (S1/S6 - 40%)

Movement

X-AXIS Movement: 345 mm
Z-AXIS Movement: 1225 mm

Workpiece

Workpiece drm over bed: 550 mm

Tail Stock

Pinol tool taper: MORSE 5

Tools

Slots in storage: 12

Additional equipment

- C axis + milling function (driven tools)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning length: 1100 mm
- - Max. Main spindle bar passage: 90 mm
- - Vdi diameter: 50 mm
- - Max. Milling rpm: 4,000 rpm
- - Quill stroke: 160 mm
- - Quill diameter: 150 mm
- - Rapid feedrates (30 min-1)
- - Max. Milling power (100/40%) 8,2/15,4 kw
Qualitative Machine Benefits:
- - Precision from fanuc oi td control very good condition with low hours

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
