- ➤ Used Weeke Optimat BHC 655 - CNC Processing Center

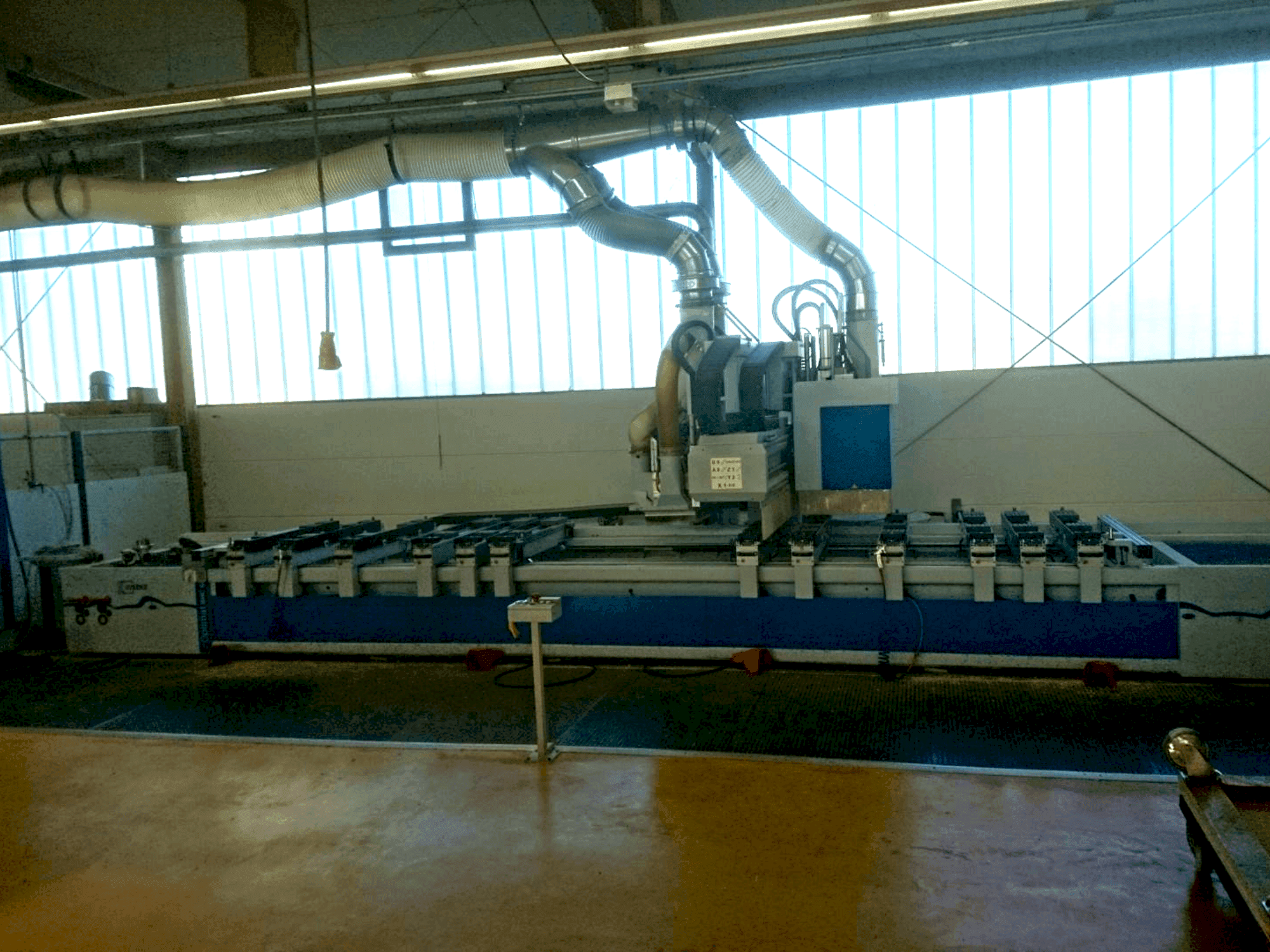

This woodworking machine was manufactured in 2004. It features a robust CNC processing centre with a compact linear guide system and a ball screw spindle for precise X, Y, and Z axis movement. Equipped with a 9 kW milling spindle, adjustable from 1250-24000 RPM and a 360° positioning axis, it ensures versatile and efficient operations. The machine includes a 100 m³/h vacuum pump and an 18-fold tool holder. For more information about this woodworking machine, please reach out to us.
Overview
- brand: Weeke
- year: 2004
- MODEL: Optimat BHC 655
- application type: CNC Wood Machining
- Location: Germany
- machine type: CNC Router
- availability: Immediately
Technical Information - Weeke Optimat BHC 655
Main drive
- Spindle speed range: 1250-24000 1/MIN
Additional equipment
- - BASIS-table with 6 traverses
- - Vacuum pumps (2x 100 m3/h)
- - Multiple stop systems
- - 18-fold tool holder
- - LED positioning system
- - side stop cylinder, pneumatically lowerable
- - longitudinal stop cylinder, pneumatically lowerable
- - Double centre stop lockable with 4 cylinders
- - Separate vacuum clamping system (4 vacuum fields in X direction)
- - Separate vacuum clamping system for the use of at least 8 workpiece supports with four-fold assignment
Additional Information
- Technical Machine Benefits:
- - Axis movement (x-/y-/z-direction): via a compact linear guide system, dust-protected
- - Ball screw spindle (y- and z-direction)
- - Rack and pinion drive (x direction)
- - 4 program-controlled workpiece stops, mounted as a rear row of stops
- - 6 program-controlled workpiece stops, mounted as a front row of stops
- - 2 side stops mounted on an aluminium profile in y-direction, which can be switched off manually when oversized workpieces are being processed. The side stops can be adjusted manually in y-direction.
- - 6 workpiece lifting arms for heavy workpieces
- - Milling spindle hsk 9 kw (s6 50%), liquid circulation cooling
- - 360 degree positioning axis
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
