➤ Used BUSELLATO Easy Jet 7.10 D AH/119579 | For Sale

Show in original language

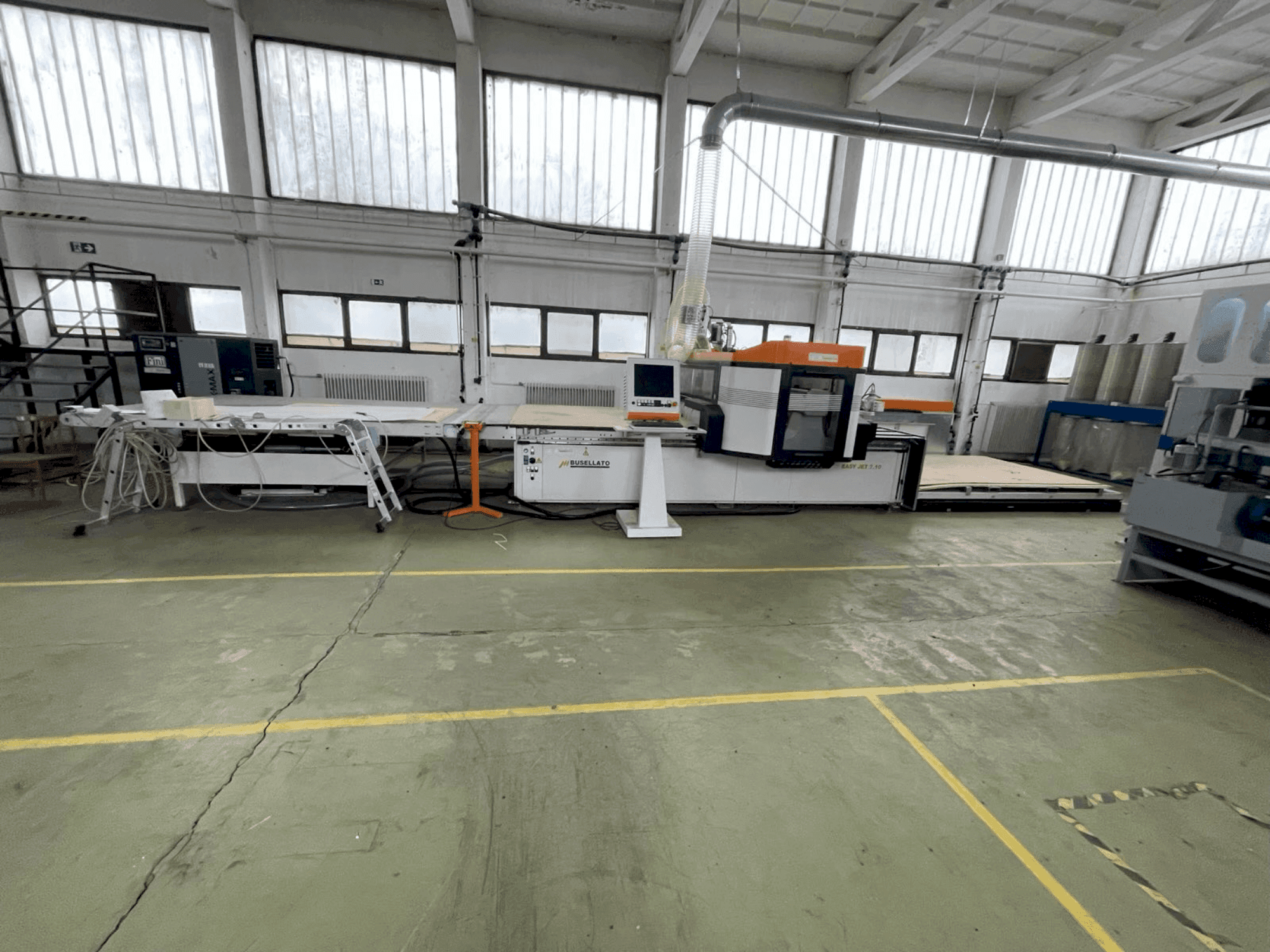

This 3-axis BUSELLATO Easy Jet 7.10 D AH/119579 was manufactured in 2016. A CNC Wood Machining Centre featuring a working area of 3200 mm by 1300 mm, it boasts a spindle power of 12 kW and speeds up to 24,000 RPM. Equipped with an automatic tool changer supporting 8-16 positions and a robust vacuum system for secure clamping. Ideal for precision woodworking, the BUSELLATO Easy Jet 7.10 D machine we have for sale. Contact us for further details regarding this CNC Wood Machining Centre.

Overview

brand: BUSELLATO
year: 2016
MODEL: Easy Jet 7.10 D AH/119579
application type: CNC Wood Machining
Location: Hungary
machine type: CNC Wood Machining Centre
availability: Immediately

Technical Information - BUSELLATO Easy Jet 7.10 D AH/119579

General Data

Measurements width: 2500 MM
Measurements depth: 5500 MM
Measurements height: 2500 MM
Machine weight: 6000 KG

Main drive

Spindle speed range: 24000 1/MIN
Spindle motor power: 12 kW (16 HP) or higher
Tool taper: HSK-F63 or ISO 30

Movement

X-AXIS Movement: 3200 mm
Y-AXIS Movement: 1300 mm
Z-AXIS Movement: 150 - 200 mm

Tools

Slots in storage: 8-16

Additional equipment

- Automatic Tool Changer (ATC)
- Drilling Head with vertical and horizontal spindles
- Integrated grooving saw
- Vacuum system with multiple zones
- Dust extraction ports
- Safety features such as light curtains, safety mats, or full enclosures

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High spindle speed up to 24000 rpm
- - Powerful spindle motor of 12 kw (16 hp) or higher
- - Fast axes speeds: x-axis up to 100 m/min, y-axis up to 60 m/min, z-axis up to 20 m/min
Qualitative Machine Benefits:
- - The machine has never been in production and is currently resting in a warehouse disassembled.
- - The machine can be installed at the buyer's site, if necessary with a suction unit and compressor.
- - Busellato easy jet 7. 10 d type, with dosing and drying system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
