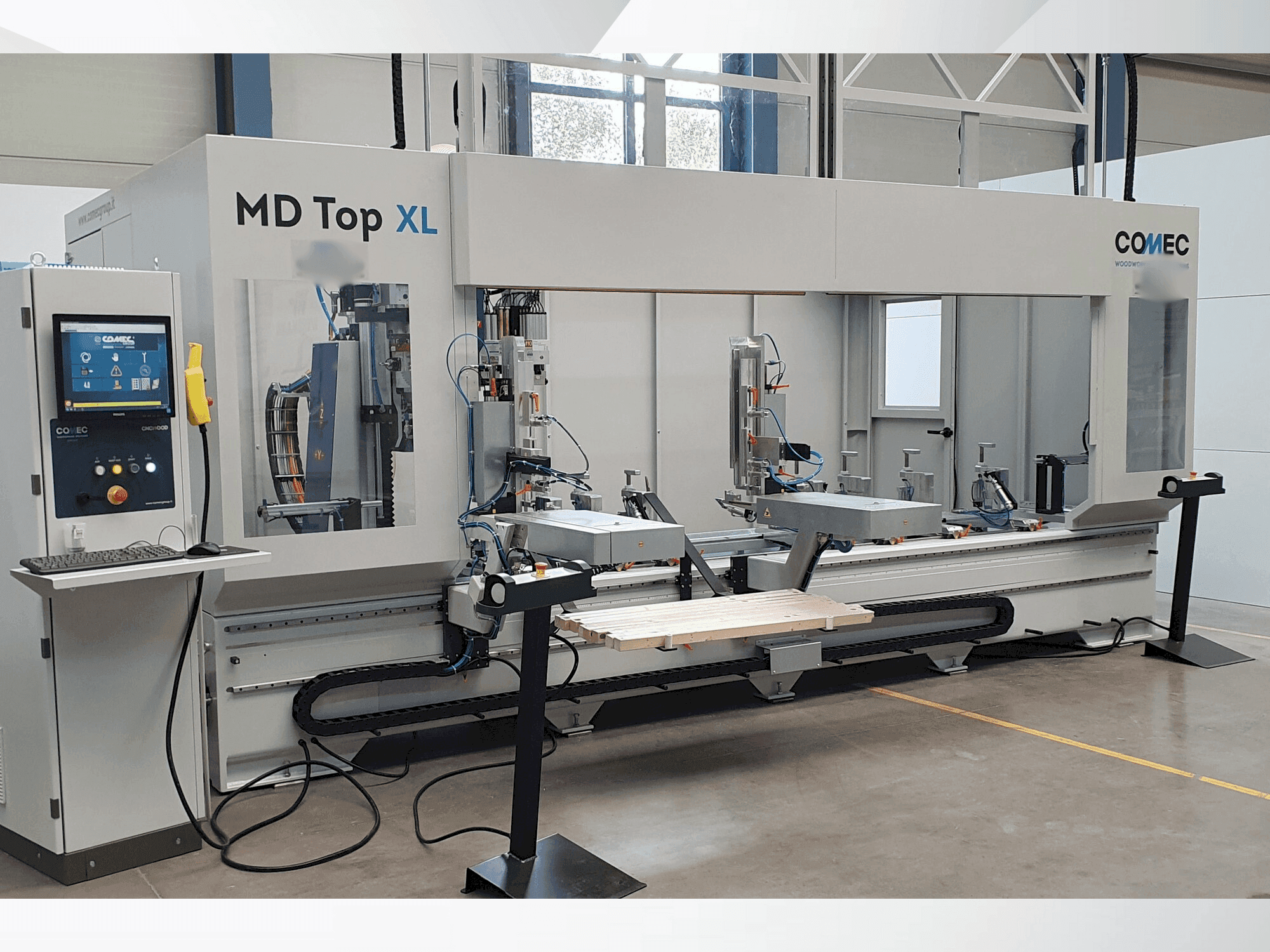

COMEC - MD TOP XLS CA2DE-CNC-COM-2024-00001

Additional equipment

• - Protective Cabin: Surrounding with fixed sheet metal panels and front protective screens, work cycle controlled.
• - Chip Removal Conveyor: With outlet to the right side and motor 0.37 KW.

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Cad cam: free-standing control cabinet next to the machine with an industrial pc featuring a 17" color touchscreen. Includes ssd 120 gb, ethernet, usb/rs 232 interface, and supports 3-d display programming.
  • - Remote capabilities: network connection for programming and remote support. Includes a remote control console for machine operation during testing and setup.
  • - Positioning speed: maximum 70 m/min for the unit carrier.
  • - Maximum sizes: x-axis: 3350 mm (or 1500 + 1500 mm in two work areas) y-axis: 200 mm z-axis: 180 mm
  • - Specially developed clamping table: moves in the x direction automatically under program control.
  • - 5 vertical drilling spindles, spacing 32 mm
  • - 3 horizontal double output spindles on both y and x-axis, spacing 32 mm
  • - Vertical milling electrospindle: 8. 0 kw, 12000/18000 rpm, tool holder iso 30 cone + er 32 collet
  • - Milling/sawing/drilling spindle: motor 7. 0 kw, 8000 - 12000 rpm, 360°c axis interpolating
  • - Horizontal electric spindle: 1 milling spindle, motor 5. 6 kw, 12000 – 18000 rpm, collet er 32
• Qualitative Machine Benefits:
  • - Automatic magazine ca 2: adjustable on linear guides, fixed on the left with easy access for the operator.
  • - Coated discharge chute: for the machined workpieces.
  • - Connection: 400 v/ 50 hz
  • - Automatic magazine loading
  • - 360° sawing, milling, and drilling unit
  • - Self-equipped support benches
  • - Heavy basic machine stand, electro-welded.
  • - Individual equipment configurations possible, including head configurations for saws, milling units, and drilling heads.

Extra information

• - Machine still under power
