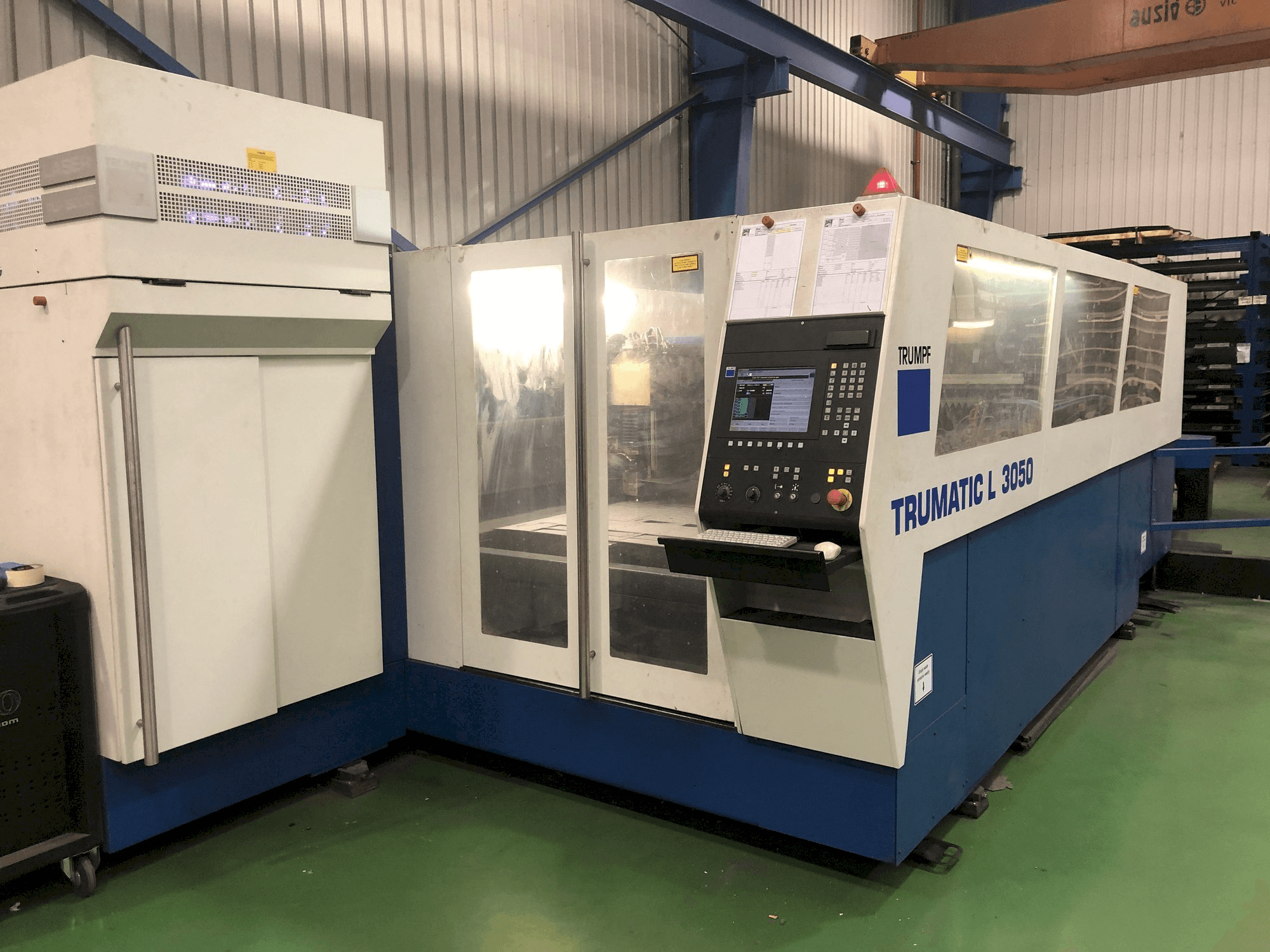

Trumpf Trumatic L3050 Laser Cutting Machine

Show in original language

This Trumpf Trumatic L3050 Laser Cutting Machine was made in the year 2006. Equipped with a SIEMENS SINUMERIK 840D Control unit, this machine comes in a very good condition as it was recently refurbished. It incorporates a laser power of 6 kW and is capable of cutting steel sheets up to 25 mm of thickness.

Overview

brand: TRUMPF
year: 2006
MODEL: Trumatic L3050
production hours: 24456
application type: Cutting
Location: Spain
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L3050

General Data

Measurements width: 4600 mm
Measurements depth: 11250 mm
Measurements height: 2400 mm
Machine weight: 12500 kg

Control Unit

Model: SINUMERIK 840 D
Brand: SIEMENS

Main drive

Laserpower: 6 kW
Laser type: TLF 6000TM
Laser brand: Trumpf

Movement

X-AXIS Movement: 3050 mm
Y-AXIS Movement: 1550 mm
Z-AXIS Movement: 115 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1050 mm
Workpiece weight: 900 kg

Max Material thickness

Steel: 25 mm
Stainless steel: 25 mm

Media

Power consumption: 109 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Refurbished

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
