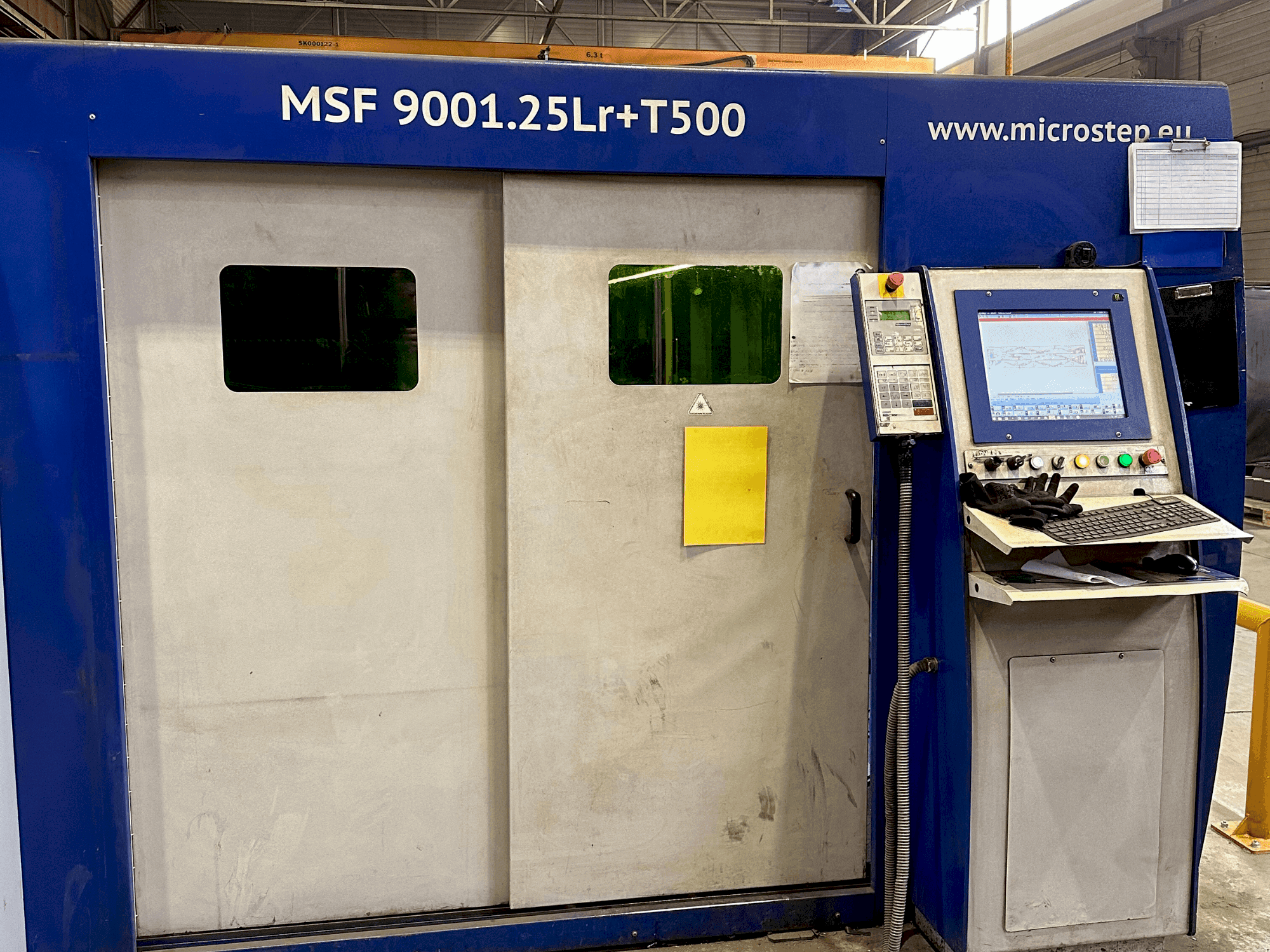

MicroStep - MSF 9001.25Lr+T500 (2015)SK-LAS-MIC-2015-00001

Additional equipment

• - Extraction: Donaldson DFPR08
• - Lubrication system: automatic
• - Beam guidance: via light cable
• - Automatic lower slag conveyor
• - 1x slag drawer
• - Suction segments under the grate
• - Pallet table changer 2 tables
• - Calibration station for bevel cut rotator

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - 3d bevel head cutting up to 50°
  • - Working area 9000 mm x 2500 mm (sheet 9x2. 5 m)
  • - Source power: 10kw
  • - Source: nlight corona-cfx-10000
  • - Head: thermacut ex-trabeam-pro-360 komplet
• Qualitative Machine Benefits:
  • - The maximum cutting capacity of the source with a power of 10kw (up to structural steel of 25 mm)
  • - Positioning speed: up to 130m/min when moving in the direction of one axis; 140m/min when moving in both axes
  • - Automatic nozzle cleaning
  • - Automatic targeting of sheet rotation
  • - Adaptive cutting – the head adapts itself to the sheet (e. G. Corrugated sheet)
  • - Remote support
  • - Protective glass against lens contamination
  • - Camera in the head
  • - 0-point laser sight
  • - At 6kw source before the retrofit action → from 1/1/2018 to 31/3/2022 → number of hours cut 18001h after upgrading to 10kw source → from 1/4/2022 to 28/2/2024 → number of hours cut 6391h

Extra information

• - Touch LED panel // Complete technical documentation // Software for programming the machine 2x Asper license // Consumable parts, e.g. (nozzles, head glasses, rings...) // Possible to Bevel cut of rounds, pipes, profiles in separated station near sheet cutting

Payment Terms

• Payment in advance

• Asset Financing
