Trumpf Trumatic L3050 Laser Cutting Machine

Show in original language

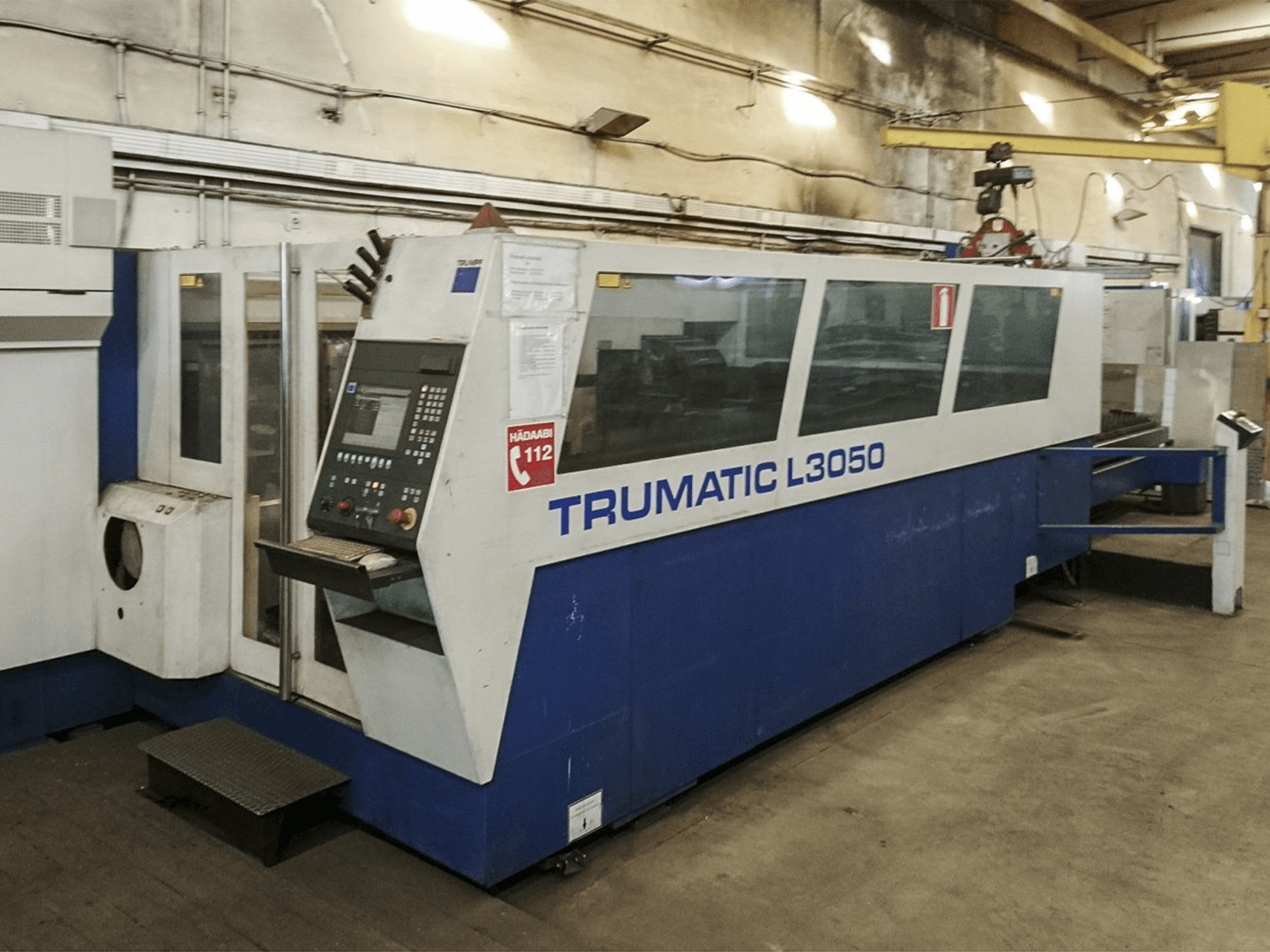

This Trumpf Trumatic L3050 Laser Cutting Machine from 2005 was manufactured in Germany and has a working record of 37620 laser hours respectively 12319 beam hours. Equipped with a SIEMENS SINUMERIK 840D Control unit, this machine comes in a very good condition as it was regularly inspected. As an extra feature, this machine comes with a Trumpf RotoLas device, allowing to cut tubes and profiles. In the past, this machine has mainly worked with steel sheets up to 25 mm of thickness, as well as with tubes and profiles. As additional equipment, this machine comes with four different sized laser cutting heads and an automatic pallet changer for loading and unloading.

Overview

brand: TRUMPF
year: 2005
MODEL: Trumatic L3050
production hours: 37620
application type: Cutting
Location: Estonia
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L3050

General Data

Measurements width: 4600 mm
Measurements depth: 11250 mm
Measurements height: 2400 mm
Machine weight: 12500 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Laserpower: 6 kW
Laser type: TLF 6000TM
Laser brand: Trumpf

Movement

X-AXIS Movement: 3050 mm
Y-AXIS Movement: 1550 mm
Z-AXIS Movement: 115 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1050 mm
Workpiece weight: 900 kg

Max Material thickness

Steel: 25 mm
Stainless steel: 25 mm

Media

Power consumption: 109 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Laser cutting head f = 3.5"
- Laser cutting head f = 5"
- Laser cutting head f = 7"
- Laser cutting head f = 9"

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
