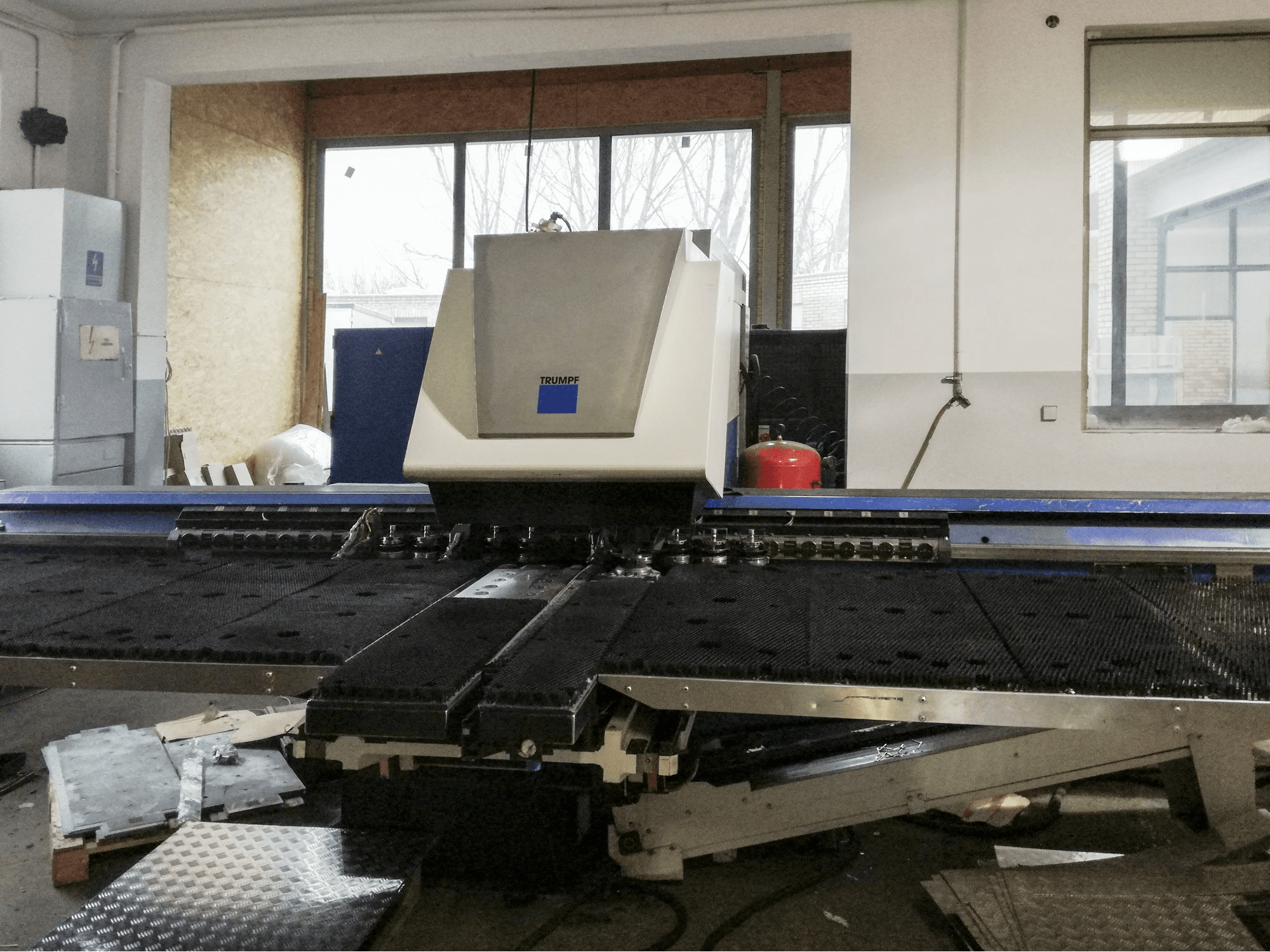

Trumpf Trumatic 3000 L Laser Punch Combination Machine

Show in original language

This Trumpf Trumatic 3000 L Laser Punch Combination Machine was manufactured in 2005 in Germany and has a working record of 31181 production hours. This fast and precise machine is operated through a Trumpf control unit and has mainly processed steel between 1 – 2.5 mm of thickness. Beside various tools, this machine comes with three adjustable workpiece holders.

Overview

brand: TRUMPF
year: 2005
MODEL: Trumatic 3000 L
production hours: 31181
application type: Cutting
Location: Poland
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: TRUMPF

Technical Information - TRUMPF Trumatic 3000 L

General Data

Measurements width: 6800 mm
Measurements depth: 2300 mm
Measurements height: 2100 mm
Machine weight: 13000 kg

Control Unit

Brand: TRUMPF

Main drive

Laserpower: 2 kW
Punching force: 165 kN
Maximum sheet thickness: 4 mm
Laser brand: TruCoax 2000

Movement

X-AXIS Movement: 2175 mm
Y-AXIS Movement: 1250 mm

Workpiece

Workpiece weight: 120 kg

Tools

Number of index: 2
Number of stations: 19

Max Material thickness

Steel: 4 mm

Media

Main electronic connection: 400 V / 50 Hz / 3 P
Power consumption: 65 kVA
Chip conveyor: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
