TRUMPF - TrumaBend V130XDE-BEN-TRU-2004-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Trumpf TrumaBend V130X

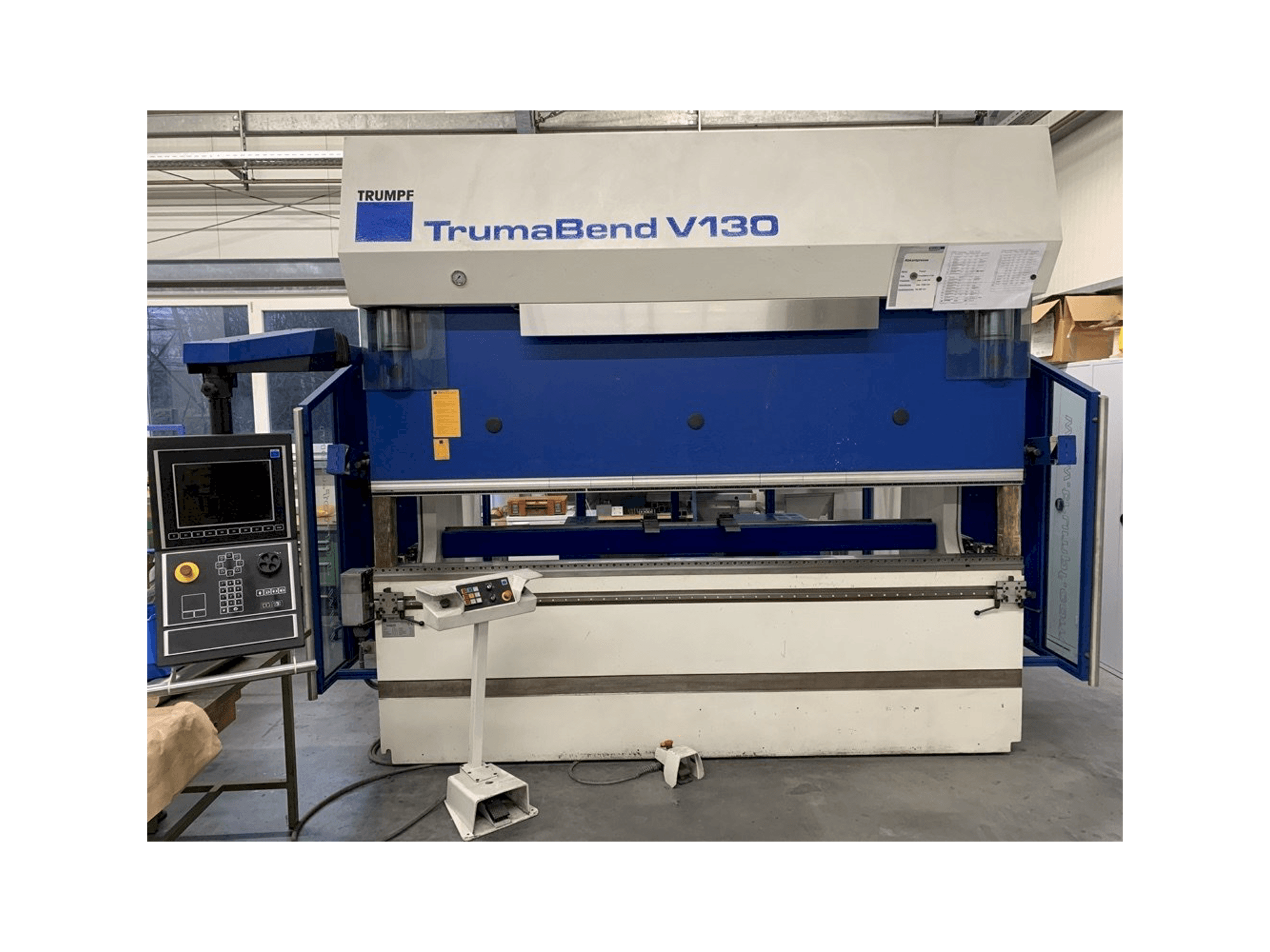

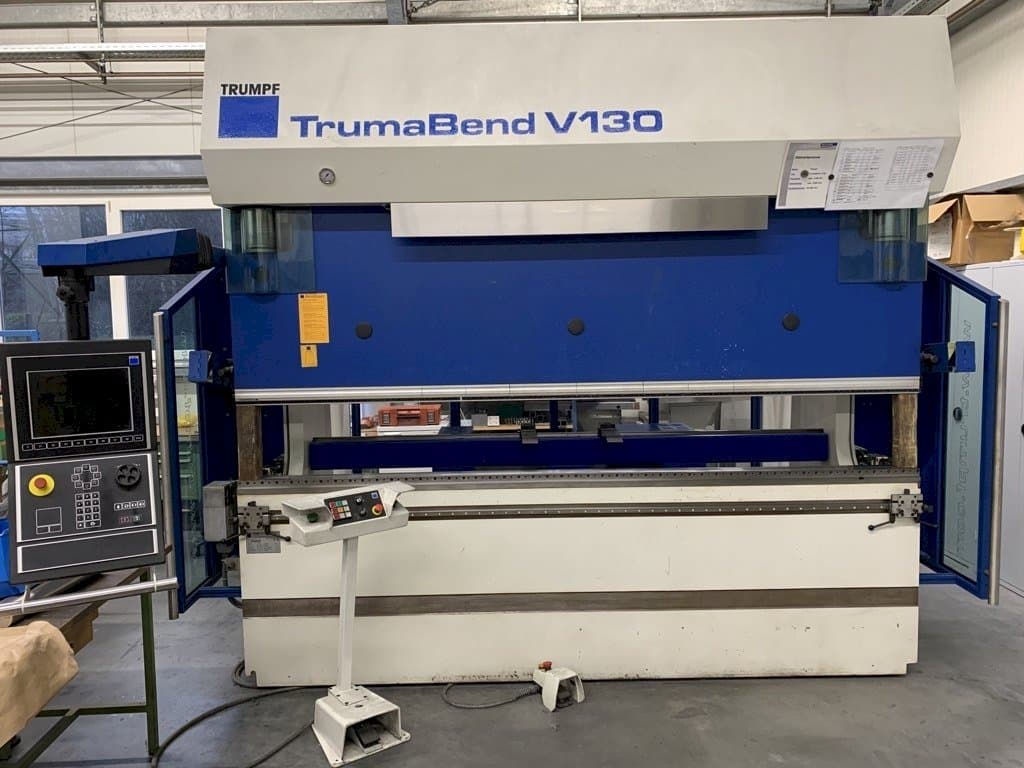

This Trumpf TrumaBend V130X Bending Machine was manufactured in the year 2004 in Austria. It has a record of 11927 production hours. This machine can operate with a nominal pressing force up to 1300 kN and a bending length 3060 mm.
Overview
- brand: TRUMPF
- year: 2004
- MODEL: TrumaBend V130X
- production hours: 11927
- application type: Bending & Punching
- Location: Germany
- machine type: Press Brake
- availability: Sold
Technical Information - TRUMPF TrumaBend V130X
General Data
- Measurements width: 2060 mm
- Measurements depth: 3640 mm
- Measurements height: 2885 mm
- Machine weight: 12950 Kg
Main drive
- Pressing force: 1300 kN
- Bending length: 3060 mm
- Throat: 410 mm
- Stroke: max. 365 mm
Media
- Power consumption: 27.0 kVA
Additional Information
- Technical Machine Benefits:
- - 4 axis backgauge
- - Cnc control: delem
- - Max. Operating pressure 340 bar
- - Slow-down delay 95 ms
- - Safety distance 190 mm
- - Y-operating speed: 1-10 mm/s
- - Y-rapid speed: 200 mm/s
- - Y-return speed: 135 mm/s
- - Beam entry: 535 mm
- - Distance between uprights 2690 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
