➤ Used Euromac FXbend 1547 - Press For Sale | gindumac.com

Show in original language

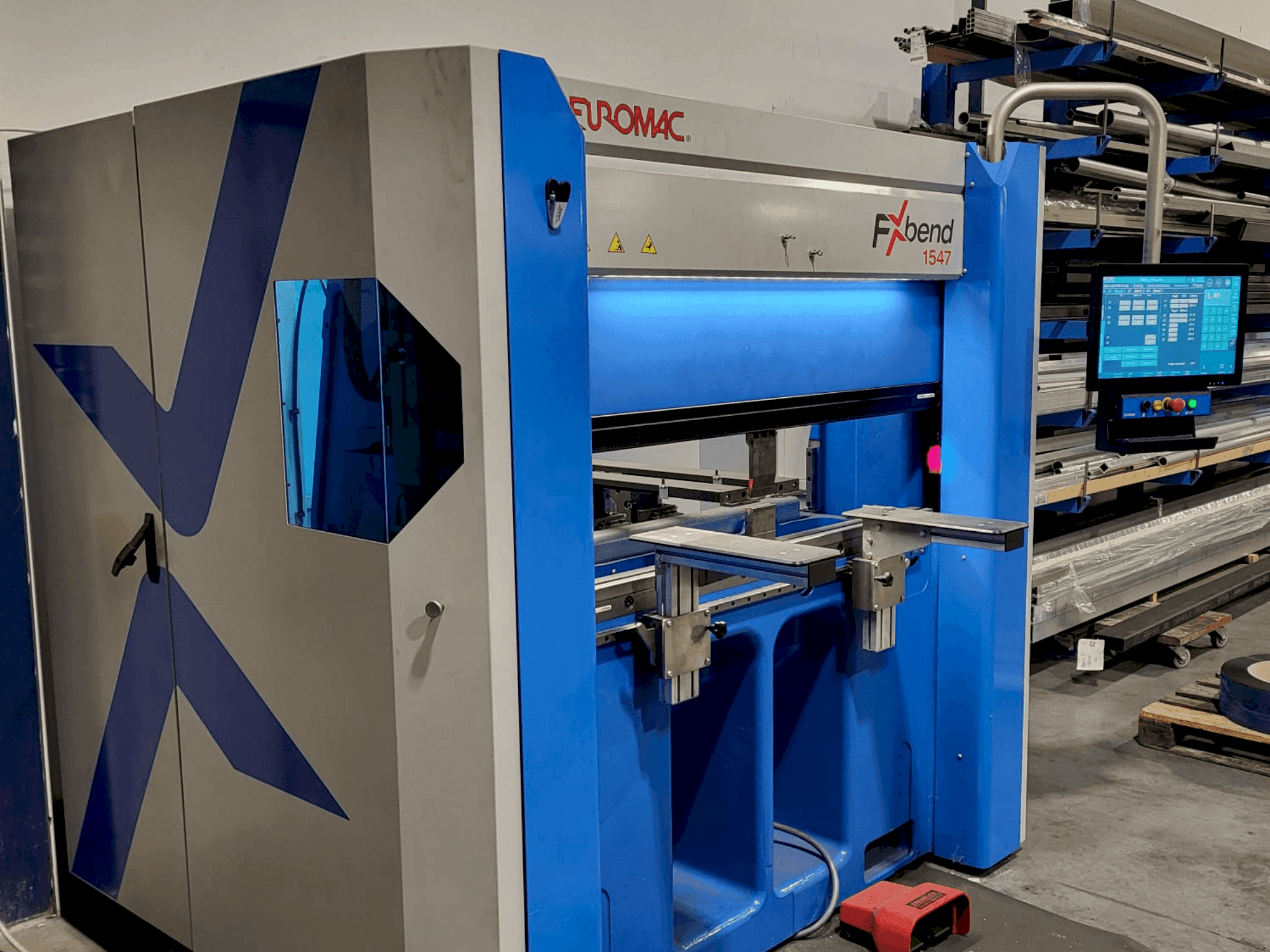

This 8-axis Euromac FXbend 1547 press brake was manufactured in 2022, featuring a maximum bending force of 470 kN and a bending length of 1530 mm. It includes a 6-axis backgauge with extensive stroke capabilities and high-speed movements, ensuring precision and efficiency. If you are looking to get high-quality bending capabilities, consider the Euromac FXbend 1547 machine we have for sale. Contact us for more information about this machine.

Overview

brand: Euromac
year: 2022
MODEL: FXbend 1547
application type: Bending
Location: Netherlands
machine type: Press Brake
availability: Immediately

Technical Information - Euromac FXbend 1547

General Data

Machine weight: 4400 kg

Main drive

Bending length: 1530 mm
Number of axis: 8

Movement

X-AXIS Movement: 375 mm
X-AXIS Rapid traverse: 1000 mm/sec
Y-AXIS Movement: 250 mm
Y-AXIS Rapid traverse: 200 mm/sec
Z-AXIS Movement: 1350 mm
Z-AXIS Rapid traverse: 800 mm/sec
R-AXIS Movement: 180 mm
R-AXIS Rapid traverse: 650 mm/sec

Additional equipment

- Wila hydraulic top and bottom clamping
- Max. bending force: 470 kN
- Inclination (Y1-Y2): ±10 mm
- Opening (table to ram): 470 mm (395 mm)
- Connections wireless/USB port: Yes/2
- Angle measuring system in the laser (option)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
