➤ Trumpf TrumaBend V130 | Bending Machine For Sale

Show in original language

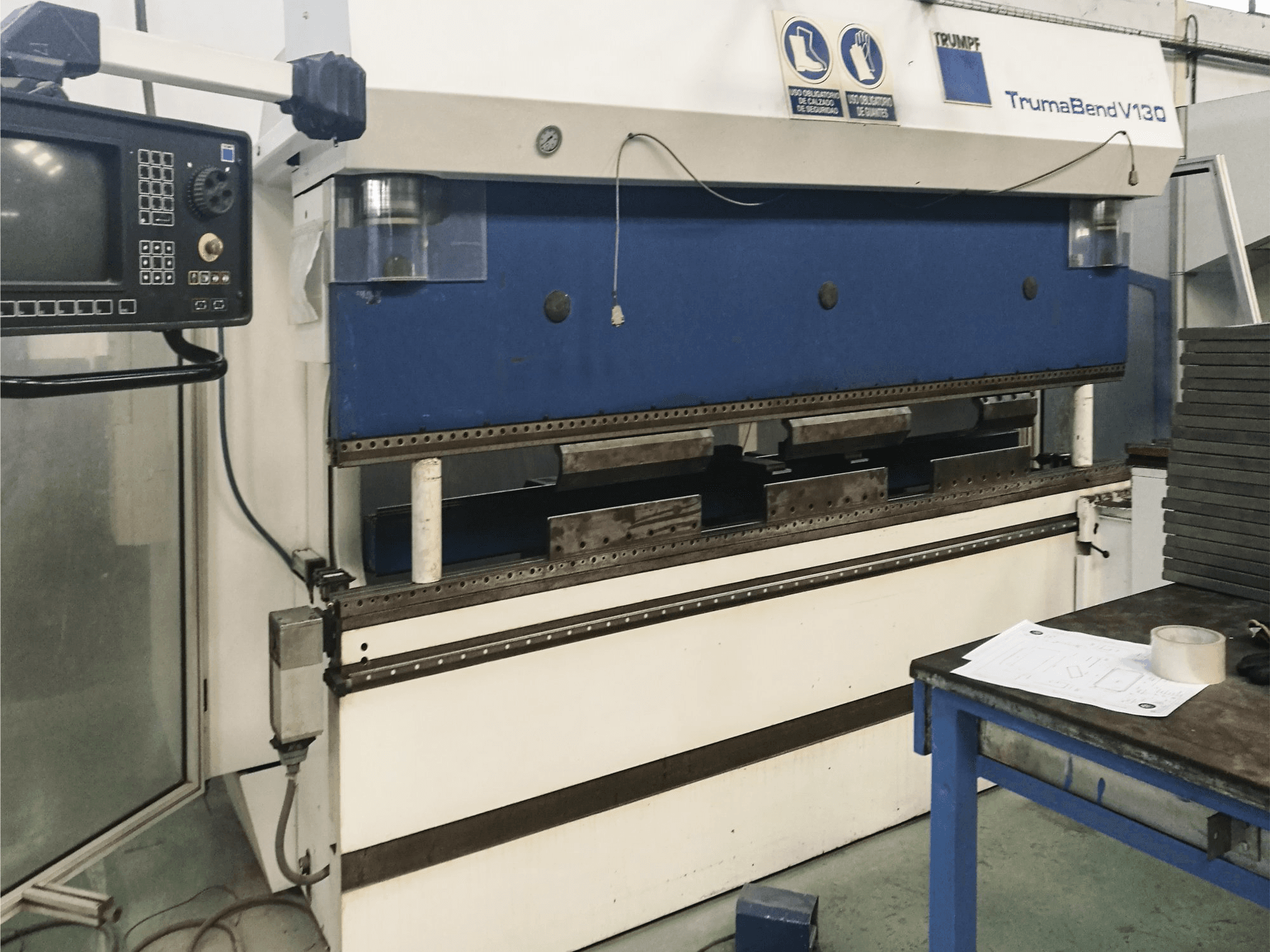

This Trumpf TrumaBend V130 Bending Machine was manufactured in 2001 in Austria and has a working record of 32195 production hours. Equipped with a Dalem DA-65 Control unit, this precise and easy-to-use machine stands out due to its hydraulic tool clamping system and comes in very good working condition as Trumpf maintenance was performed regularly. As additional equipment, several matrices as well as a punch are included.

Overview

brand: TRUMPF
year: 2001
MODEL: TrumaBend V130
production hours: 32195
application type: Bending
Location: Spain
machine type: Press Brake
availability: Sold
control unit brand: DELEM

Technical Information - TRUMPF TrumaBend V130

General Data

Measurements width: 3640 mm
Measurements depth: 2210 mm
Measurements height: 2885 mm
Machine weight: 11250 kg

Control Unit

Model: DA-65
Brand: DELEM

Main drive

Pressing force: 1300 kN
Bending length: 3060 mm

Movement

Backgauge-X Movement: 860 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 16 kVA
Air pressure: 6 bar

Additional equipment

- Punch, radius 1°
- Matrix 8x3000mm 30°
- Matrix 12x3000mm 30°
- Matrix 16x3000mm 30°
- Matrix 20x3000mm 30°

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
