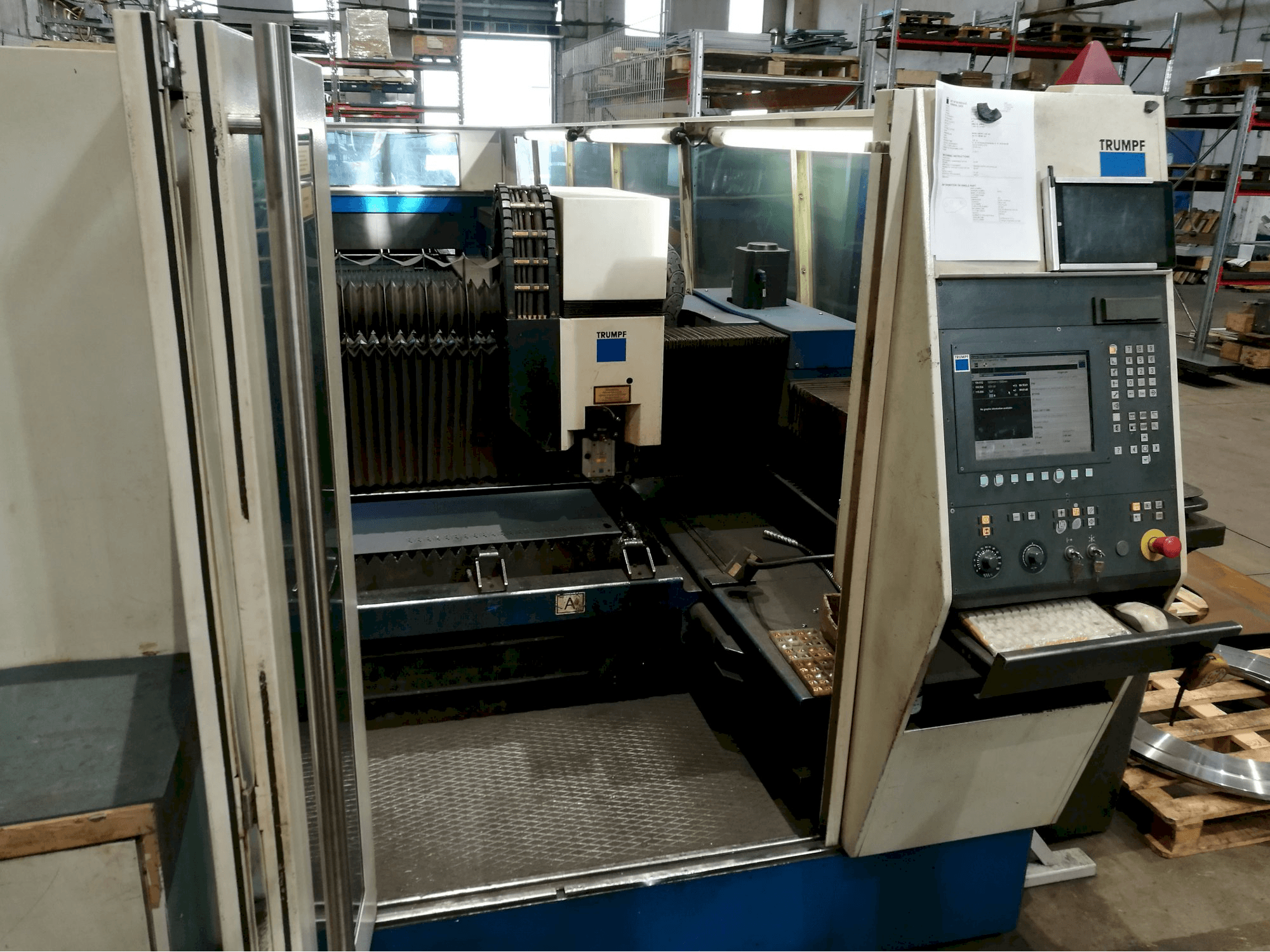

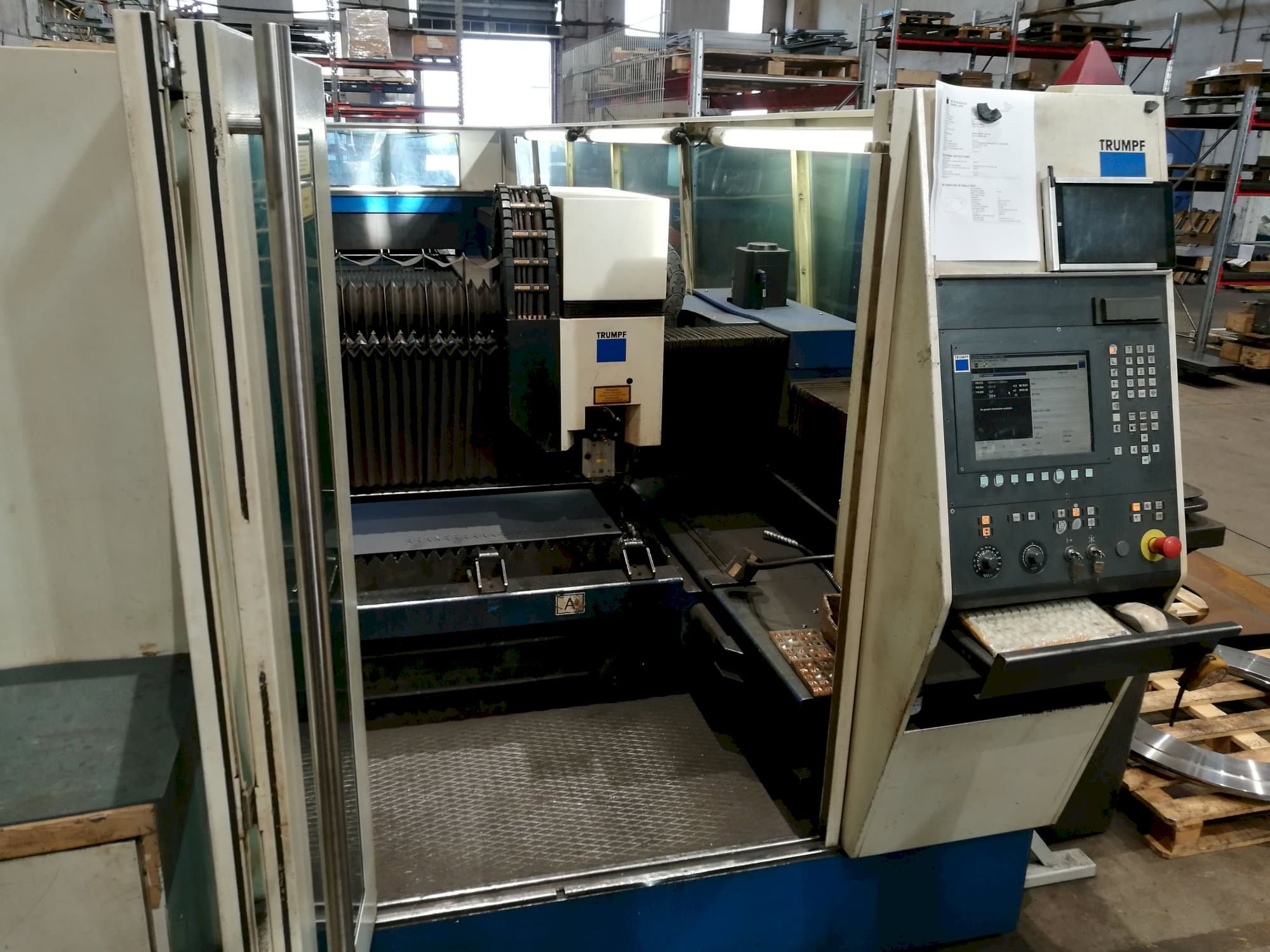

Trumpf TruLaser 5060 Laser Cutting Machine

Show in original language

This Trumpf TruLaser 5060 Laser Cutting Machine was manufactured in Germany in 2007 and has a working record of 63257 laser and 26193 beam hours respectively. Operated through a Trumpf control unit, the model counts with 3 laser cutting heads with an axis speed of 300 m per minute. In the past, this machine has worked mostly with steel, stainless steel and aluminum for various industry types. It presents very good conditions, as it was recently serviced in the summer of 2018. Pipe Bending

Overview

brand: TRUMPF
year: 2007
MODEL: TruLaser 5060
production hours: 63257
application type: Cutting
Location: Estonia
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: TRUMPF

Technical Information - TRUMPF TruLaser 5060

General Data

Measurements width: 5420 mm
Measurements depth: 16930 mm
Measurements height: 2500 mm
Machine weight: 16000 kg

Control Unit

CNC main language: English
CNC language customizable: Yes
Brand: TRUMPF

Main drive

Laserpower: 5 kW
Laser type: D 0004 A 6493
Laser brand: TruFlow 5000

Movement

X-AXIS Movement: 6000 mm
Y-AXIS Movement: 2000 mm
Z-AXIS Movement: 150 mm

Workpiece

Workpiece drm: 6000 mm
Workpiece x: 2000 mm
Workpiece weight: 2500 kg

Max Material thickness

Steel: 20 mm
Stainless steel: 20 mm
Aluminum: 6 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 105 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
