TRUMPF - Trulaser 5030 FiberHU-CUT-TRU-2011-00001

Name: TRUMPF Trulaser 5030 Fiber
Brand: TRUMPF
SKU: HU-CUT-TRU-2011-00001
Price: 8241200 INR
Availability: InStock

Rs. 8,241,200

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used TRUMPF Trulaser 5030 Fiber For Sale | gindumac.com

Show in original language

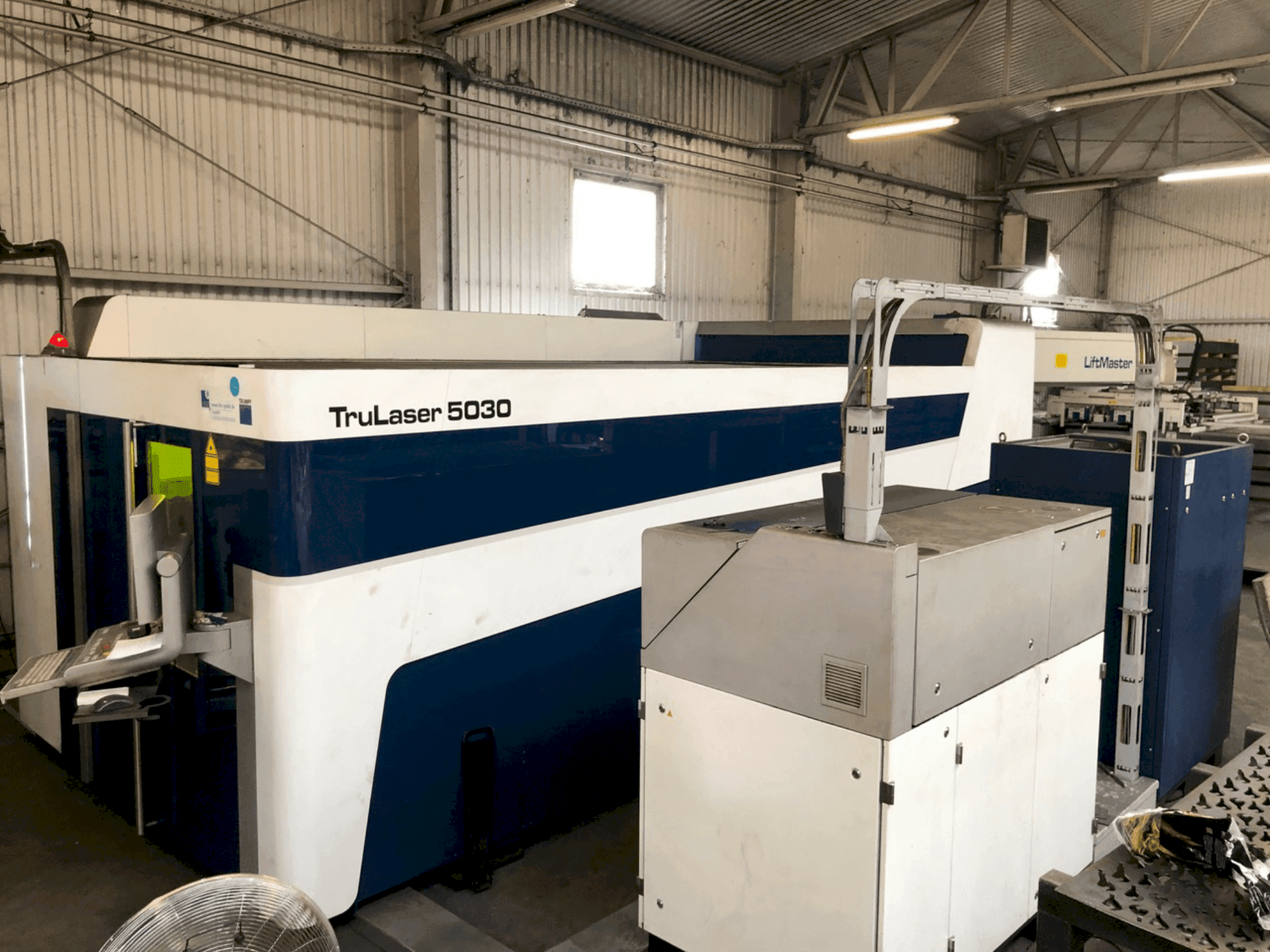

This TRUMPF Trulaser 5030 Fiber was manufactured in 2011. A robust fiber laser cutting machine, it features a 3000 Watt laser output and a working area of 3000 x 1500 x 115 mm. Capable of cutting up to 20 mm steel, 15 mm stainless steel, and 15 mm aluminum, it operates with a Siemens Sinumerik 840 D control system. If you are looking to get high-quality cutting capabilities consider the TRUMPF Trulaser 5030 Fiber machine we have for sale. Contact us for more information.

Overview

brand: TRUMPF
year: 2011
MODEL: Trulaser 5030 Fiber
production hours: 18595
application type: Cutting
Location: Hungary
machine type: Fiber Laser Cutting Machine
availability: Immediately
control unit brand: SIEMENS

Technical Information - TRUMPF Trulaser 5030 Fiber

General Data

Measurements width: 4600 MM
Measurements depth: 9950 MM
Measurements height: 2400 MM
Machine weight: 12000 KG

Control Unit

Brand: SIEMENS
Model: Sinumerik 840 D

Main drive

Spindle speed range: 300 1/MIN

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm
Workpiece z: 115 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 15 mm
Aluminum: 15 mm

Additional equipment

- Closed machine frame with an integrated laser unit
- Torque drive combined with direct linear drives
- Enclosed beam delivery via fiber optic cable
- Water-air chiller for machine cooling
- Integrated electrical cabinets with internal lighting
- Automatic pallet changer (lengthwise installation)
- Power supply through TruDisk integrated into the machine
- Working area lighting
- Wide longitudinal conveyor
- Positioning laser diode

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Positioning accuracy: 0. 05 mm
- - Laser rated output: 3000 watts

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
