Trumpf TruLaser 5030 fiber Laser Cutting Machine

Show in original language

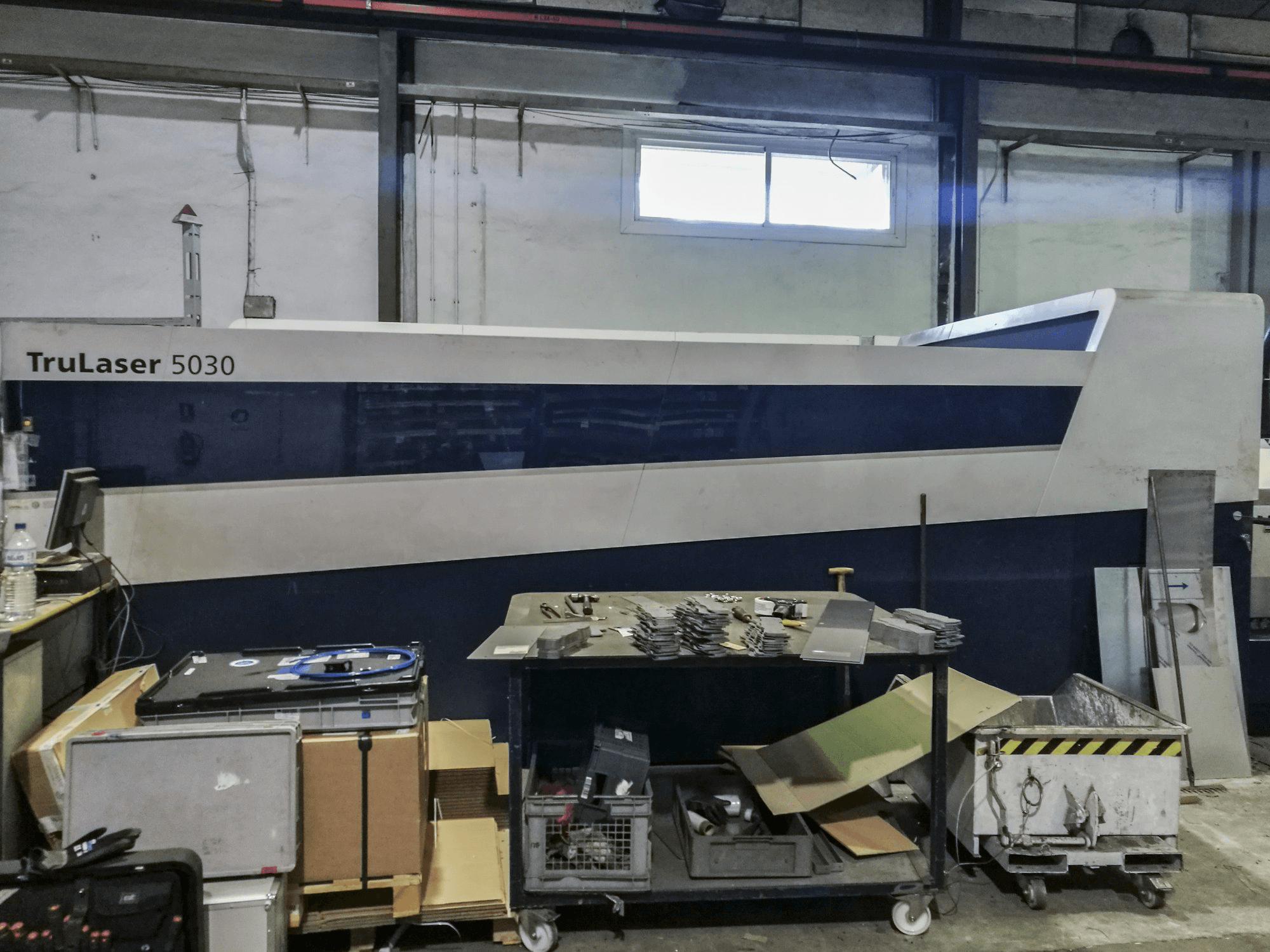

This Trumpf TruLaser 5030 fiber Laser Cutting Machine from 2012 was manufactured in Germany and has a working record of 25754 production hours. Operated through a SIEMENS SINUMERIK 840D Control unit, this fiber cutting machine incorporates a Trumpf TruDisk 5001 device and comes in good conditions thanks to a regular maintenance. Upon request, an additional Trumpf LiftMaster is available.

Overview

brand: TRUMPF
year: 2012
MODEL: TruLaser 5030 fiber
production hours: 25754
application type: Cutting
Location: Spain
machine type: Fiber Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 5030 fiber

General Data

Measurements width: 9300 mm
Measurements depth: 4600 mm
Measurements height: 2200 mm
Machine weight: 12700 kg

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840D

Main drive

Laserpower: 5 kW
Laser type: Fiber

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 115 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm

Max Material thickness

Steel: 25 mm
Stainless steel: 15 mm
Aluminum: 20 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 55 kVA

Additional equipment

- Trumpf LiftMaster (upon request)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
