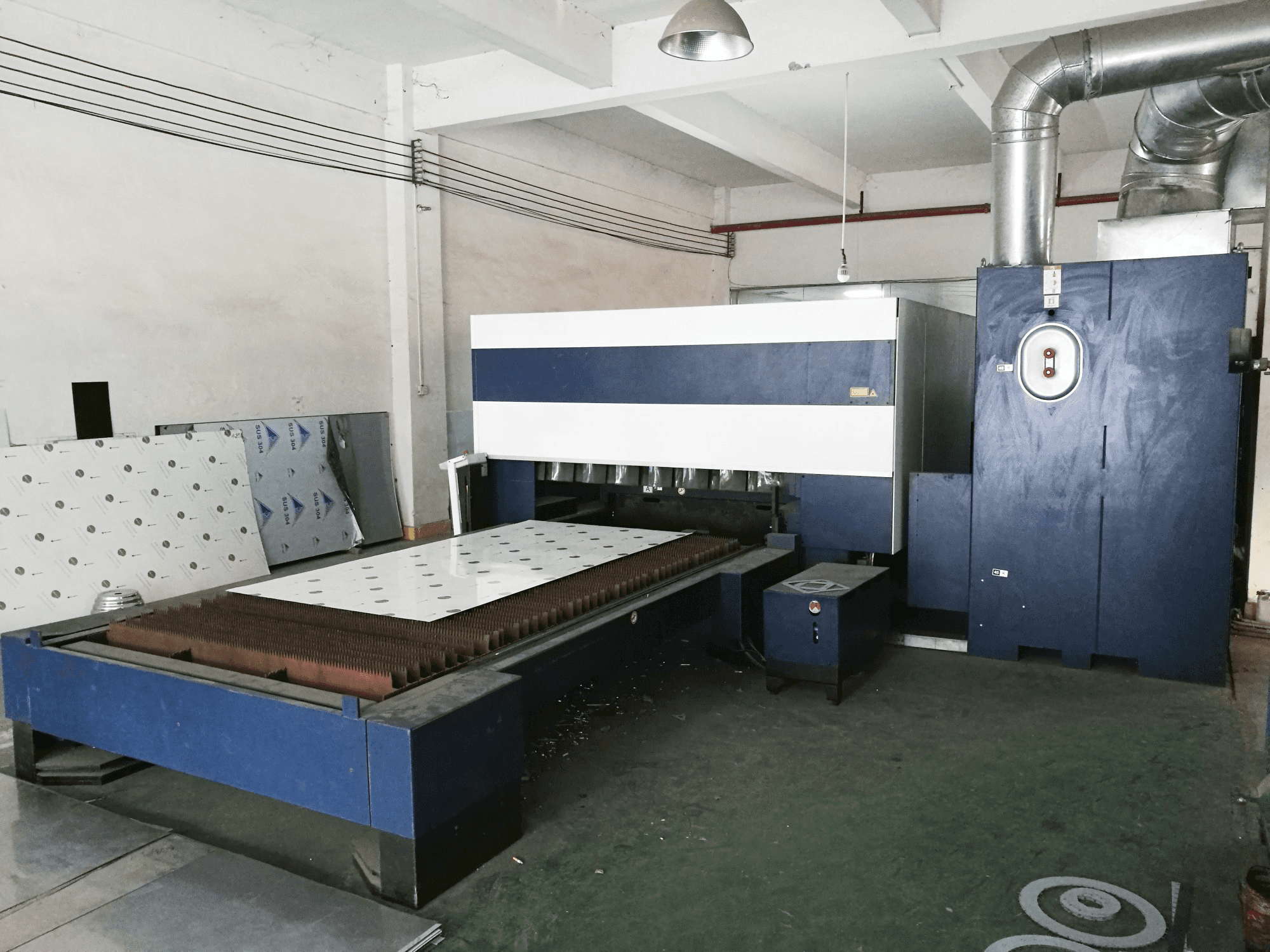

Trumpf TruLaser 3030 Laser Cutting Machine

Show in original language

This Trumpf TruLaser 3030 Laser Cutting Machine was produced in 2014 and has been in operation for 11044 hours ever since. The incorporated Control unit in this equipment is a SIEMENS SINUMERIK 840D. For its efficiency and durability, the model represents a benchmark in the sheet metal working field.

Overview

brand: TRUMPF
year: 2014
MODEL: TruLaser 3030
production hours: 11044
application type: Cutting
Location: China
machine type: Fiber Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 3030

General Data

Measurements width: 9155 mm
Measurements depth: 3400 mm
Measurements height: 2200 mm
Machine weight: 12000 kg

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840D
Interface: USB, Ethernet

Main drive

Number of spindles: 1
Laserpower: 4 kW

Movement

X-AXIS Movement: 3000 mm
X-AXIS Working Feed: 60 m/min
Y-AXIS Movement: 1500 mm
Y-AXIS Working Feed: 60 m/min
Z-AXIS Movement: 115 mm
Z-AXIS Working Feed: 60 m/min
X-Y-Simultaneous Working Feed: 85 m/min
Pa Accuracy: 0.1
Ps Accuracy: 0.03

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm

Table

Outer length: 3000 mm
Outer width: 1500 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 15 mm
Aluminum: 10 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 88 kVA
Air pressure: 6 bar
He consumption: 13.1 l/h
CO2 consumption: 1.1 l/h
N2 consumption: 5.8 l/h
Lubrication tank: 95 L

Additional equipment

- Laser cutting head f = 130
- Laser cutting head f = 250

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
