Trumpf TruLaser 2525 Laser Cutting Machine

Show in original language

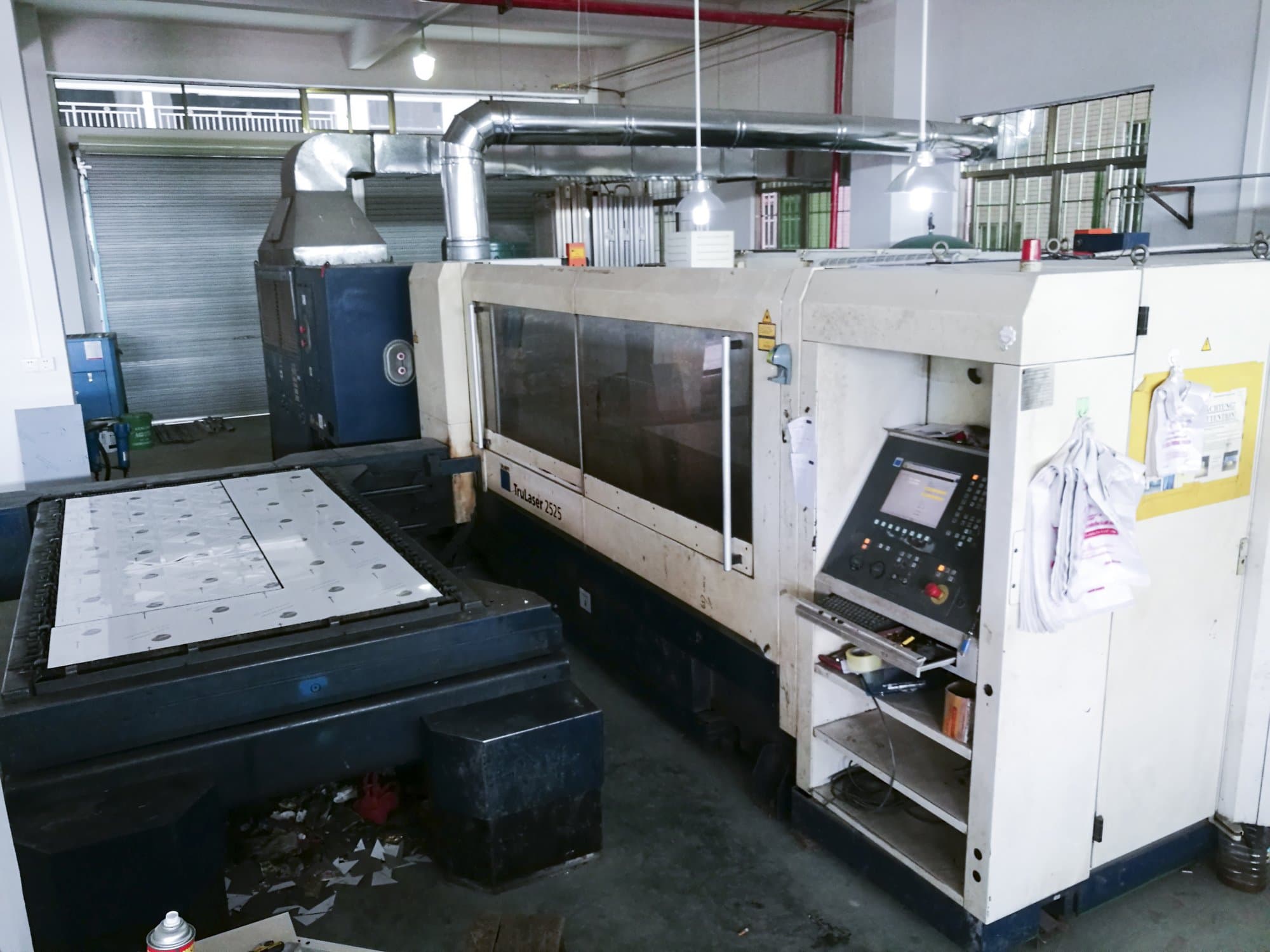

This Trumpf TruLaser 2525 Laser Cutting Machine from 2009 is a compact equipment, with a production record of 46000 hours. Operated through a SIEMENS SINUMERIK 840D Control unit, the machine is especially fit for handling thin sheets and stands out for its German-manufactured quality laser.

Overview

brand: TRUMPF
year: 2009
MODEL: TruLaser 2525
production hours: 46000
application type: Cutting
Location: China
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 2525

General Data

Measurements width: 7800 mm
Measurements depth: 6100 mm
Measurements height: 2000 mm
Machine weight: 8450 kg

Control Unit

Model: SINUMERIK 840D
Interface: USB, Ethernet
Brand: SIEMENS

Main drive

Number of spindles: 1
Laserpower: 3.2 kW

Movement

X-AXIS Movement: 2500 mm
X-AXIS Working Feed: 60 m/min
Y-AXIS Movement: 1250 mm
Y-AXIS Working Feed: 60 m/min
Z-AXIS Movement: 115 mm
Z-AXIS Working Feed: 60 m/min
Pa Accuracy: 0.1
Ps Accuracy: 0.03

Workpiece

Workpiece x: 2500 mm
Workpiece y: 1250 mm
Workpiece weight: 500 kg

Table

Outer length: 2500 mm
Outer width: 1250 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 12 mm
Aluminum: 8 mm

Media

Main electronic connection: 400V / 50 Hz
Power consumption: 65 kVA
Air pressure: 6 bar
He consumption: 13.1 l/h
CO2 consumption: 1.1 l/h
N2 consumption: 5.8 l/h
Lubrication tank: 95 L
Chip conveyor: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
