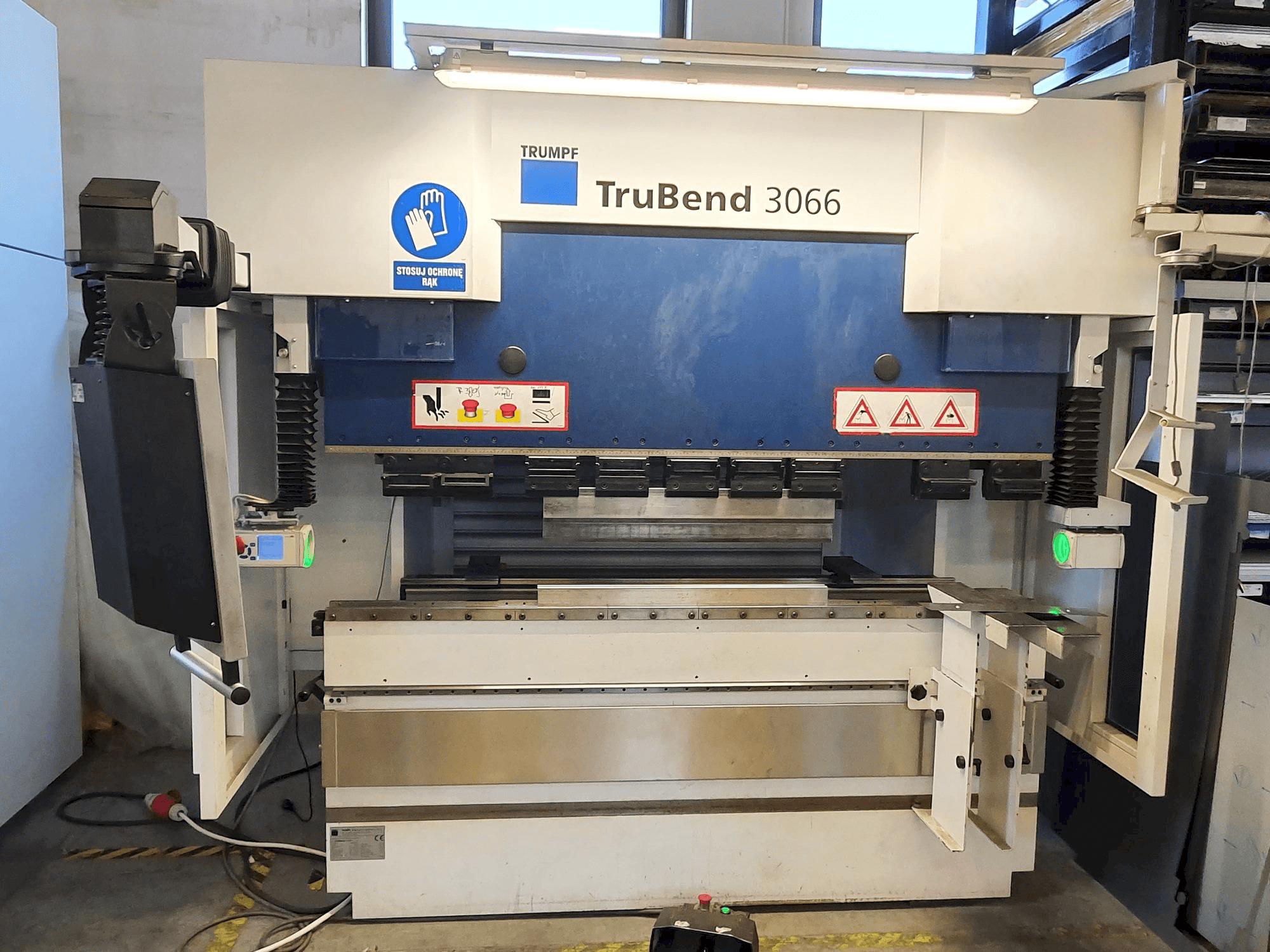

TRUMPF - TruBend 3066PL-BEN-TRU-2012-00001

Additional equipment

• - Tools included

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Tool clamping system: promecam
  • - Upper tool mathias s2033 / 28 / r 0,6 / 8 / h128 / 70t / m
  • - Rolleritools lower tool h46 / 88 * / v = 8-12 / r 0. 5-0. 8 max 80t / m
  • - Length of the bending edge is 2080 mm
  • - Max distance between table and bending beam 470 mm
  • - Speed 200 mm / s
  • - Working speed 10mm / s
  • - Return 180 mm / s
  • - X axis speed 500 mm / s, r axis speed 200 mm / s
  • - Y-axis stroke 200 mm, x axis displacement 600 mm, x-axis bumper range 880mm axis displacement r 340 mm
• Qualitative Machine Benefits:
  • - Very good condition, on production.
  • - Servicing always by trumpf poland
  • - It is small 3 axis press brake (y, z, r - cnc and z1 z2 - manual)
  • - There is a standard version 2-d delem graphic control t3000 color.
  • - The machine has the option of 3d-visualisoerung trubend serie 3000

Payment Terms

• Payment in advance

• Asset Financing
