TRENS SBL 500 CNC Lathe

Show in original language

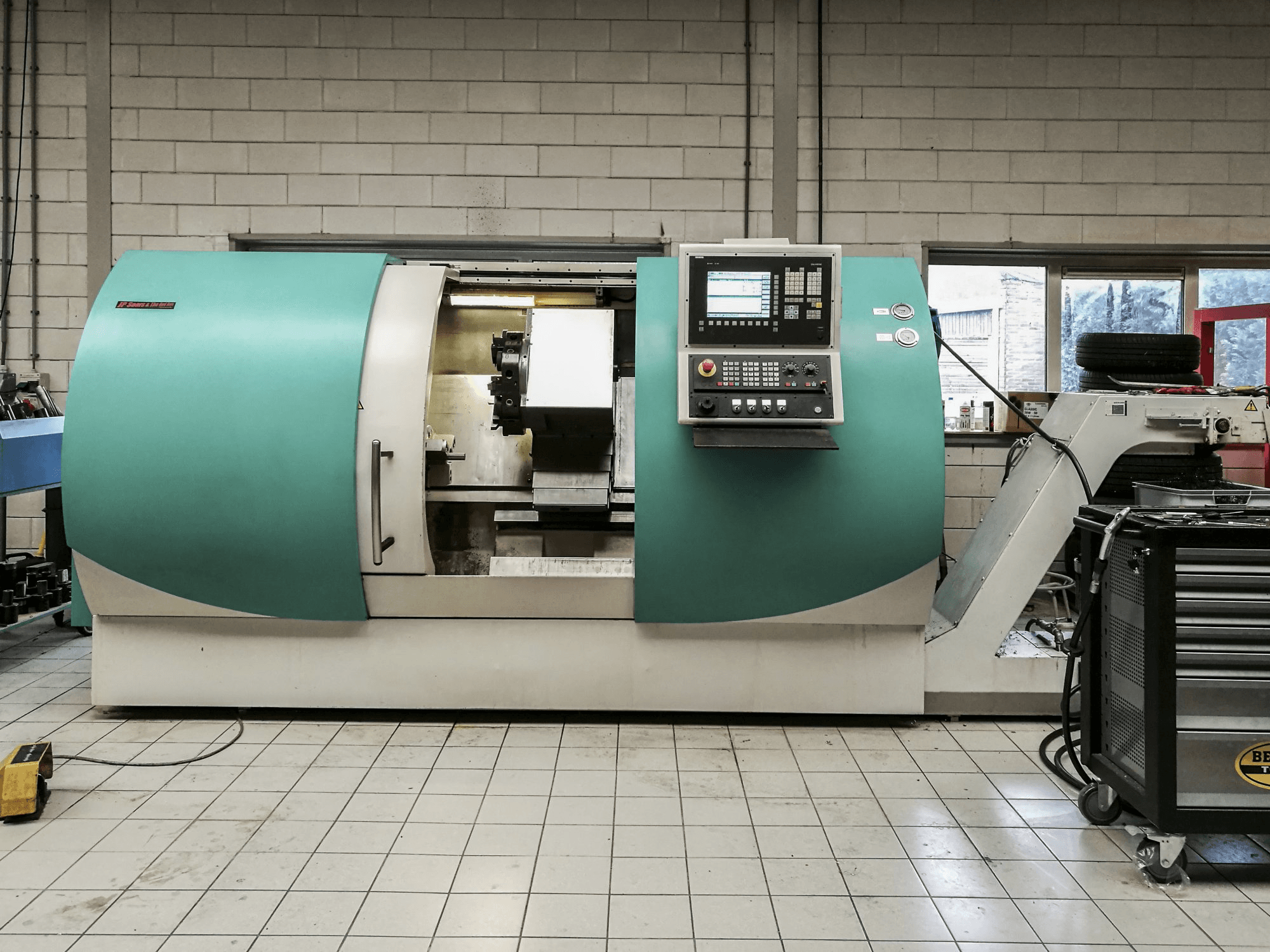

This Slovakian TRENS SBL 500 CNC Lathe from 2005 has a working record of approximately 4000 production hours and is equipped with a SIEMENS SINUMERIK 810D Control unit. This rigid and accurate system has mainly worked with stainless steel and aluminum during the past, producing accessories for the construction industry. As this model was not used more than 25 hours per week during the last seven years, but inspected regularly, it stands in very good conditions. The machine is live-tooling ready and includes an additional tool holder.

Overview

brand: TRENS
year: 2005
MODEL: SBL 500 CNC
production hours: 4000
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRENS SBL 500 CNC

General Data

Measurements width: 3650 mm
Measurements depth: 1900 mm
Measurements height: 1935 mm
Machine weight: 6620 kg

Control Unit

Brand: SIEMENS
Model: SINUMERIK 810D

Main drive

Number of spindles: 1
Spindle speed range: 4200 1/min

Movement

X-AXIS Movement: 270 mm
Z-AXIS Movement: 1655 mm

Workpiece

Workpiece drm: 410 mm
Workpiece x: 270 mm
Workpiece z: 905 mm

Turret

Number of turrets: 12
Max tool length: 40 mm

Tools

Max tool diameter: 40 mm
Max tool length: 750 mm

Media

Main electronic connection: 400 V
Power consumption: 52 kVA
Chip conveyor: Yes

Additional equipment

- 25x Tool holder

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
