BOEHRINGER - VDF 400 CMDE-TUR-BOE-1998-00002
Do you have further questions? Contact us.
![sales contact](https://storage.googleapis.com/gindumac-public/team/sergi_guardia.jpg)
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
![whatsapp](https://gindumac.s3.eu-central-1.amazonaws.com/images/email-icons/whatsapp.png)
- GINDUMAC
- Products
- Machine Tools
- ➤ Used BOEHRINGER VDF 400 CM Lathe For sale | gindumac.com

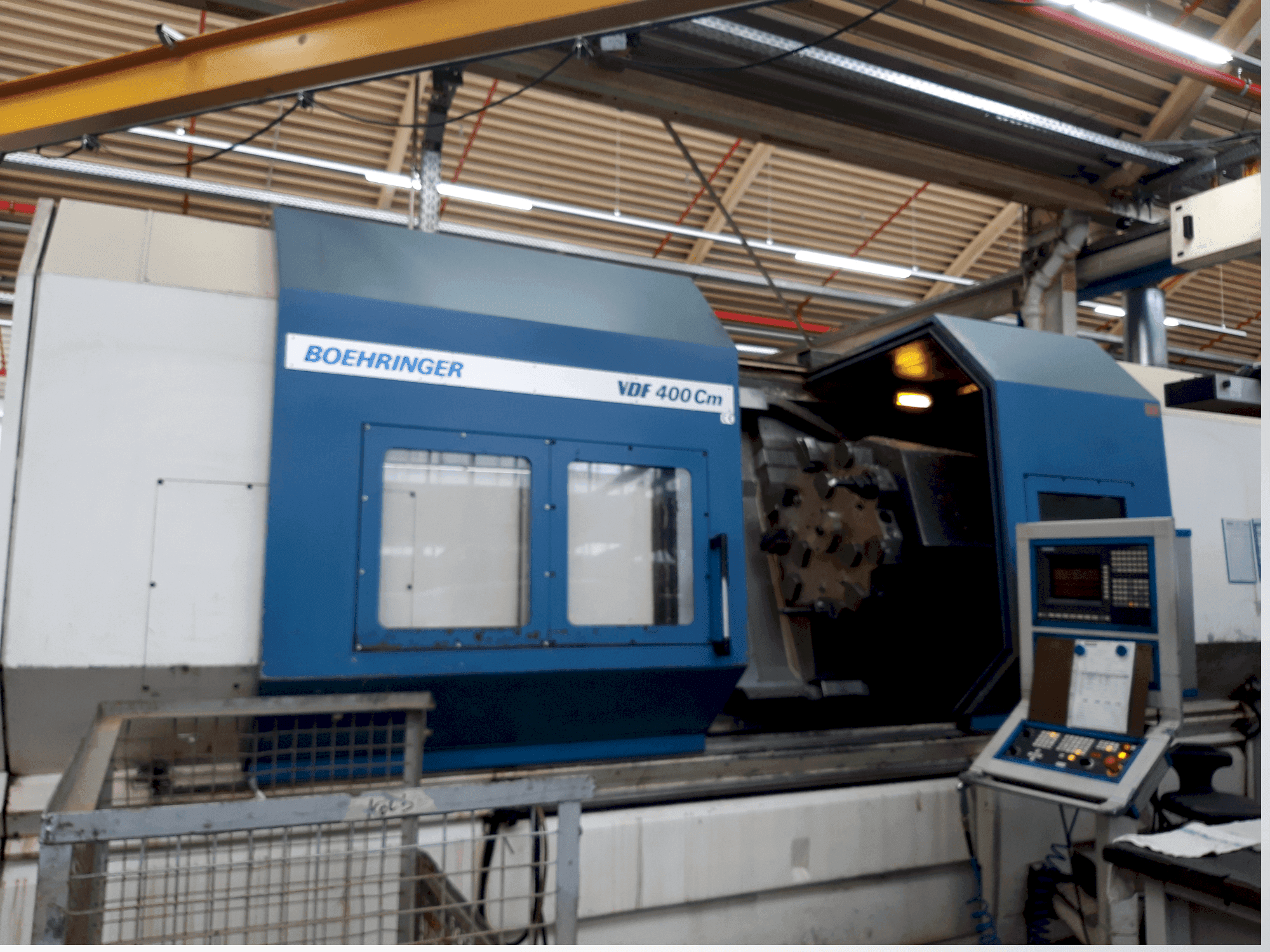

This Lathes was manufactured in 1998. The BOEHRINGER VDF 400 CM features a Siemens Sinumerik 840 C control, a spindle bore of 132 mm, and a maximum turning diameter of 700 mm. It includes a high-capacity coolant system and an integrated chip conveyor for efficient operation. Ideal for those looking to buy this BOEHRINGER VDF 400 CM Lathes. Contact us for more information.
Overview
- brand: BOEHRINGER
- year: 1998
- MODEL: VDF 400 CM
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- availability: 30 12 2024
- control unit brand: Siemens
Technical Information - BOEHRINGER VDF 400 CM
General Data
- Measurements width: 3420 mm
- Measurements depth: 5365 mm
- Measurements height: 2855 mm
- Machine weight: 23000 kg
Control Unit
- Brand: Siemens
- Model: Sinumerik 840 C
Main drive
- Spindle speed range: 7-2000 rpm 1/MIN
- Spindle motor power: 65 kW (max, 60% ED)
- Spindle bore: 132 mm
Workpiece
- Workpiece drm over bed: 785/750/750 mm
Additional equipment
- - Chip conveyor: integrated longitudinally with a discharge height of 1250 mm
- - Coolant device: large capacity tank (min. 340 l), high delivery rate (40 l/min at 1 bar)
Additional Information
- Technical Machine Benefits:
- - High feed force
- - Dynamic ac servo motor per axis
- - Collision protection for drive elements
- - Programmable coolant supply for each tool
- - Turning length in mm 2000.
- - Swing diameter above the bed in mm 750.
- - Traverse path of the bed slide 2224.
- Qualitative Machine Benefits:
- - Simple maintenance and installation of chip conveyor
- - High coolant delivery rate supports modern cutting and drilling tools
- - Steady rest: Originally installed but removed due to defectiveness. Tailstock: Included with a quill outer diameter of 130 mm and stroke of 120 mm. Hydraulic unit: Central unit for various machine functions with variable clamping pressure adjustment. Feed drive: Features high dynamics and protection class IP 64. Main spindle head: DIN 55026-A15.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
