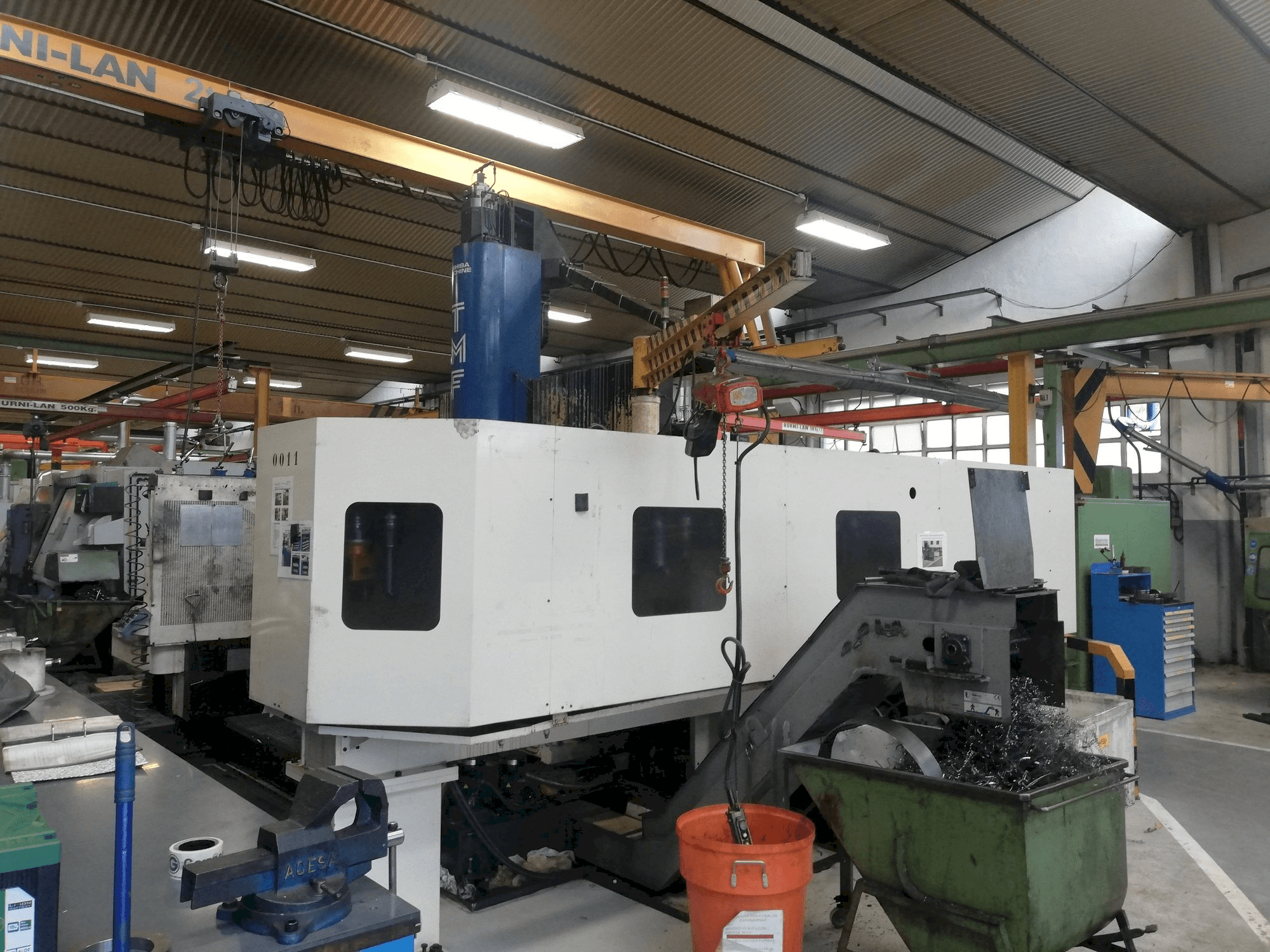

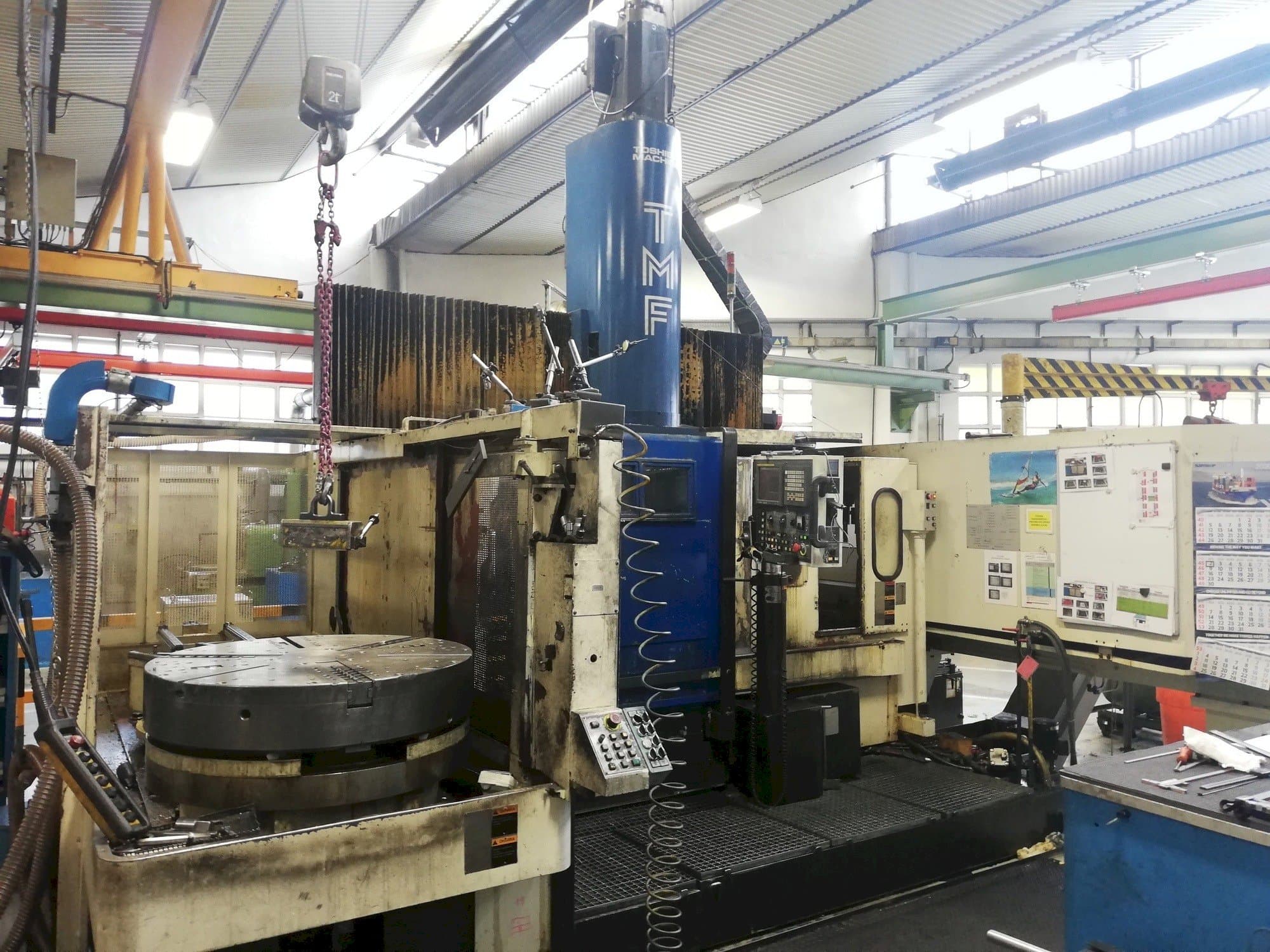

TOSHIBA TMF-10 Turning

Show in original language

This TOSHIBA TMF-10 Lathes Machine was manufactured in 2000. It operates with a Fanuc Series 18I - T Model A Control Unit. This 2 axis machine works with a spindle speed range 25-2500 rpm. The machine works in a good condition.

Overview

brand: Toshiba
year: 2000
MODEL: TMF-10
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Toshiba TMF-10

General Data

Measurements width: 6940 mm
Measurements depth: 5450 mm
Measurements height: 4920 mm
Machine weight: 22200 kg

Control Unit

Model: Series 18I - T Model A
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 25-2500 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 725 mm
Z-AXIS Movement: 800 mm

Workpiece

Workpiece x: 725 mm
Workpiece z: 800 mm

Turret

Number of turrets: 1

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Palet changer
- - Palet diameter 1,016 mm
- - Maximum swin 1,200 mm
- - Maximun cutting height 690 mm
- - Maximum cutting diameter 1,200 mm
- - Maximum load on pallet 1,000 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
