TORNOS SAS 16.6 Swiss Type Turning

Show in original language

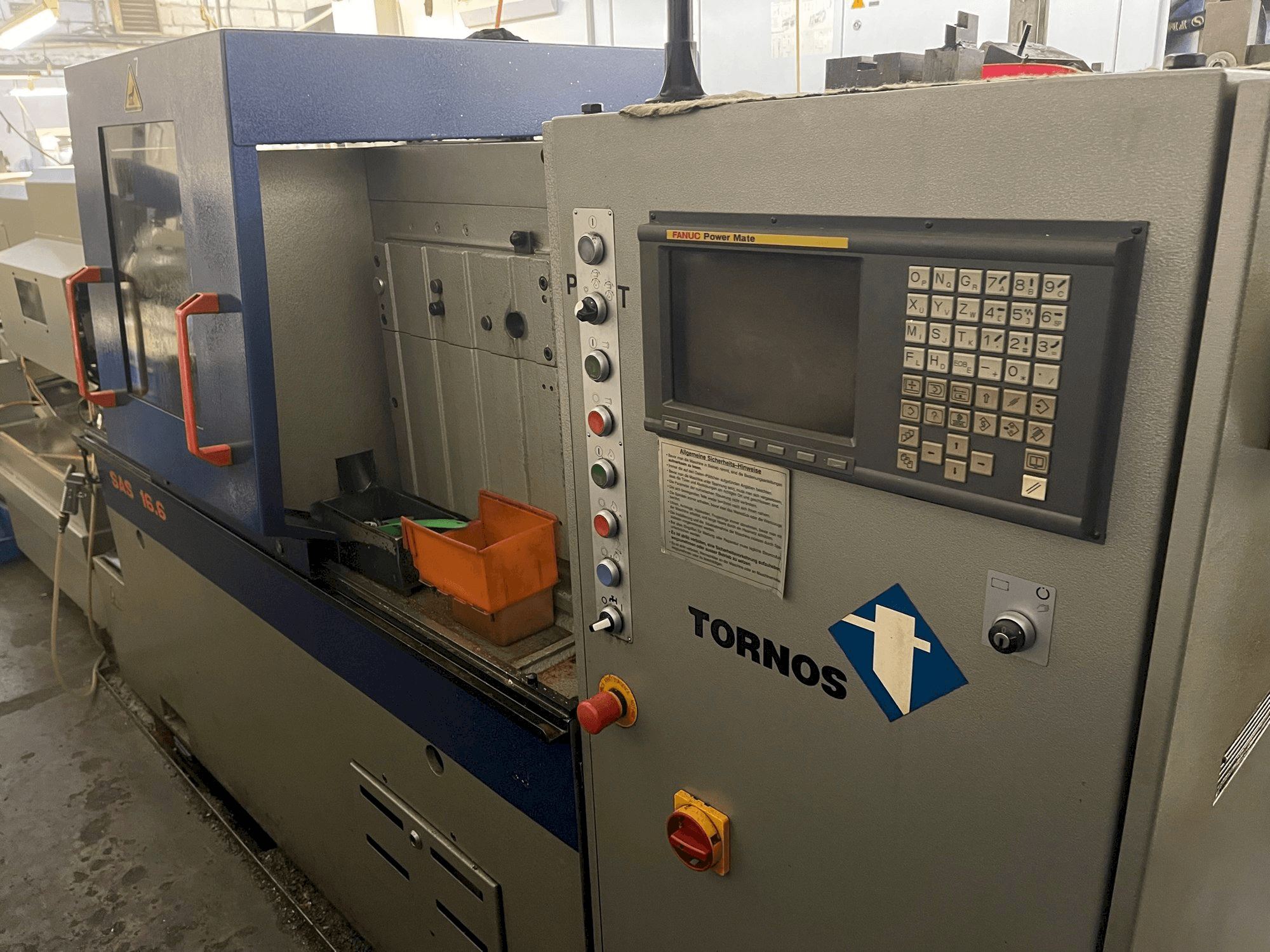

This TORNOS SAS 16.6 Swiss Type Turning was manufactured in the year 2011 in Switzerland and has 37276 production hours. It is equipped with a FANUC POWER MATE control unit. The machine has a spindle speed of 8000 rpm.

Overview

brand: TORNOS
year: 2011
MODEL: SAS 16.6
production hours: 37276
application type: Turning
Location: Poland
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - TORNOS SAS 16.6

Control Unit

Model: POWER MATE
Brand: FANUC

Main drive

Number of spindles: 6
Spindle speed range: 250-8000 1/MIN

Media

Main electronic connection: 380-420 V 50 Hz +/- 5%

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max turning diameter: 16 mm
- - 6 spindles, 16mm (. 630") dia. Capacity
- - Locking of the barrel by hirt gearing
- - Indexing of barrel by manifold
- - Progr. Production cycle speed from 3-75 ppm
- - Progr. Acceleration of unproductive moves from 3-75 ppm
- - Automatic central lubrication system
- - Cutting oil tank cap. Of 300 l
- - Auxiliary motor for the coolant pump
- - Electrical cabinet with cn control panel
Qualitative Machine Benefits:
- - The machine is in very good condition. Connected ready for tests.
- - 10 hp (7. 5 kw) motor ac type to drive the spindles
- - 2,4 hp (1,8 kw 3000 rpm) motor ac 5,9 nm type to drive the camshaft
- - 6 clamping tubes capacity 16mm
- - Standard slide pos. 1-6
- - Bar loading basic + feed tubes
- - Swing stop in position 6 as 29/7 including standard function cams

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
