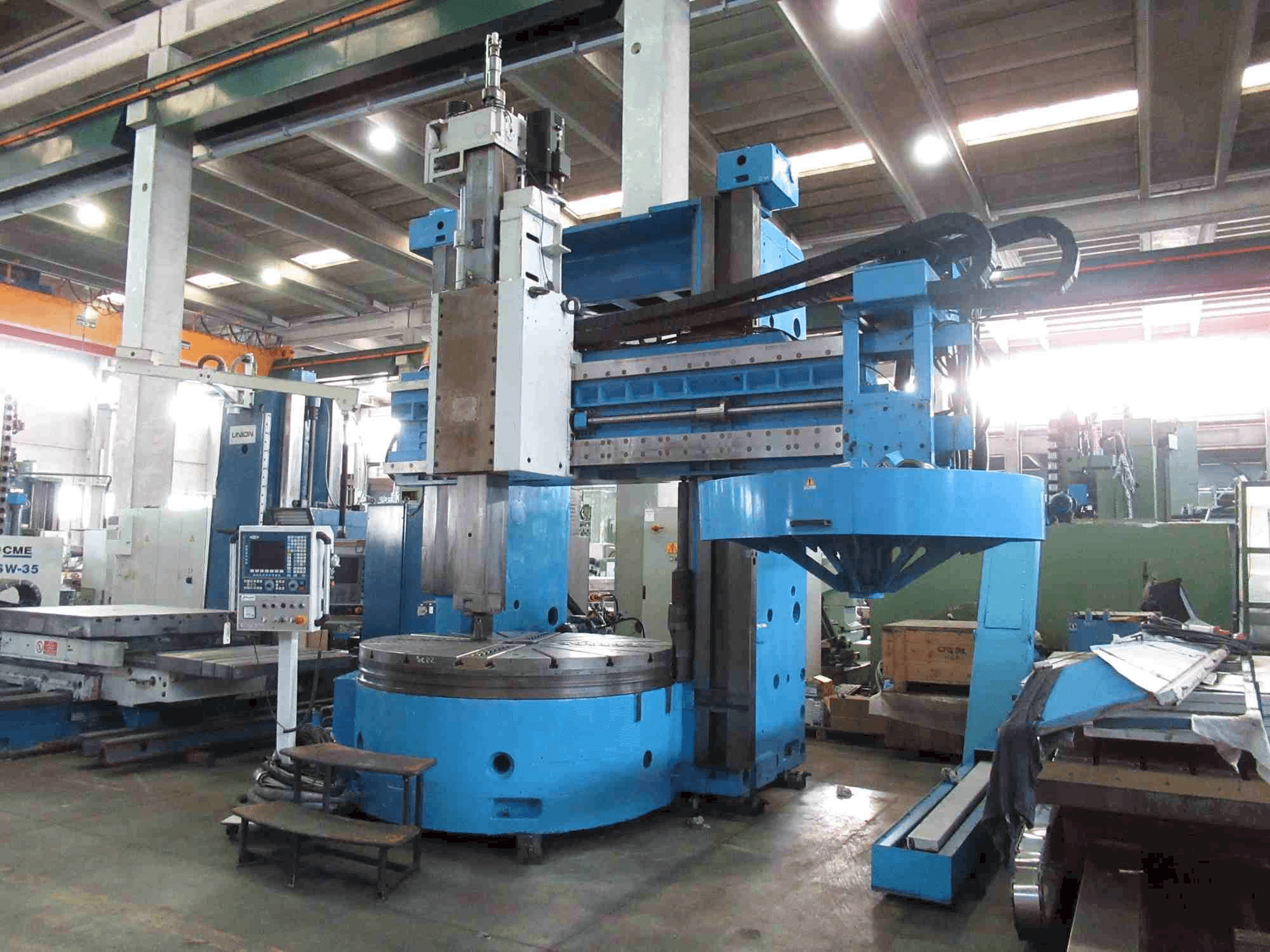

Titan SC 22 CNC Lathe

Show in original language

This Titan SC 22 CNC Lathe was built in the year 1990 and retrofitted in 2005. It is operated with a CNC FAGOR 8055 control unit. This 3 axis machine incorporates a table diameter 2000 mm, a max. turning diameter 2200 mm, and a table turning speed 1-250 rpm. it includes a tool holders, and a safety protections as an additional equipment. It presents very good conditions.

Overview

brand: Titan
year: 1990
MODEL: SC 22 CNC
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FAGOR

Technical Information - Titan SC 22 CNC

General Data

Machine weight: 40000 kg

Control Unit

Model: 8055
Brand: FAGOR

Tools

Slots in storage: 16

Additional equipment

- Chip conveyor
- Safety protections
- Tool holders

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table diameter 2000 mm
- - Max. Turning diameter 2200 mm
- - Max. Working height 1800 mm
- - Max. Weight on table 30 tons
- - Table turning speed 1-250 rpm
- - Ram vertical tool travel 1115 mm
- - Ram size 250 x 250 mm
- - C axis, milling speed 1000 rpm, power 17 kw
- - Main motor power 60 kw
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
