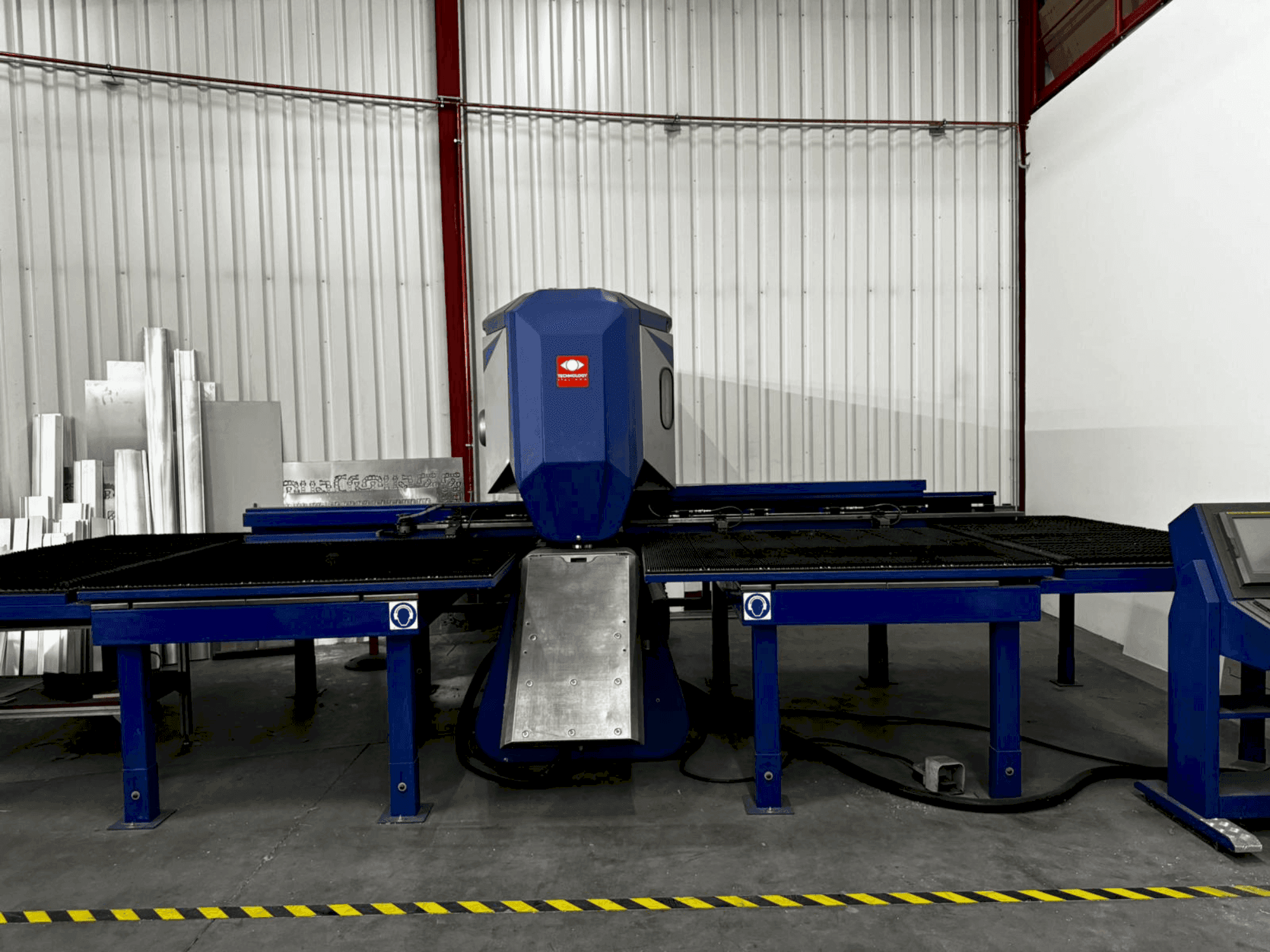

TECHNOLOGY - Tecnotransfer 1500x3000DE-PUN-TEC-2007-00001

Additional equipment

• - Integrated Auto-Index system
• - Automatic tool change system with 15 stations
• - Waste extraction system at the die
• - Pedal for opening/closing sheet clamps
• - Pedal for single punching operation
• - Automatic collision prevention for tilting parts and cutouts
• - Interactive CAD with export function
• - Import of CAD drawings in common formats
• - Interactive nesting (freehand, bump nesting)
• - Automatic positioning of special tools

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Workpiece repositioning: automatic
  • - C-frame structure: c-frame (schwanenhals)
  • - Operating manuals included
  • - Technical support available
  • - Processable sheets with automatic repositioning: 1500 x 6000 mm
  • - Steel and ball plates for sheet metal support
  • - Front horizontal plane for sheet metal unloading
  • - Number of stored stations: 15
  • - Number of rotating stations: 15
  • - Number of rotating stations: 15
• Qualitative Machine Benefits:
  • - Maximum punching diameter with technology tools: 100 mm
  • - Maximum punching diameter with trumpf tools: 80 mm
  • - Maximum punching and nibbling thickness: 6 mm
  • - Automatic tool sharpening recovery: 10 mm
  • - Tool change time: 4 seconds
  • - Tool change time: 4 seconds
  • - Tool change time: 4 seconds
  • - Automatic sheet metal processing, including residual grid destruction

Extra information

• - Machine still under power

Payment Terms

• Payment in advance

• Asset Financing
