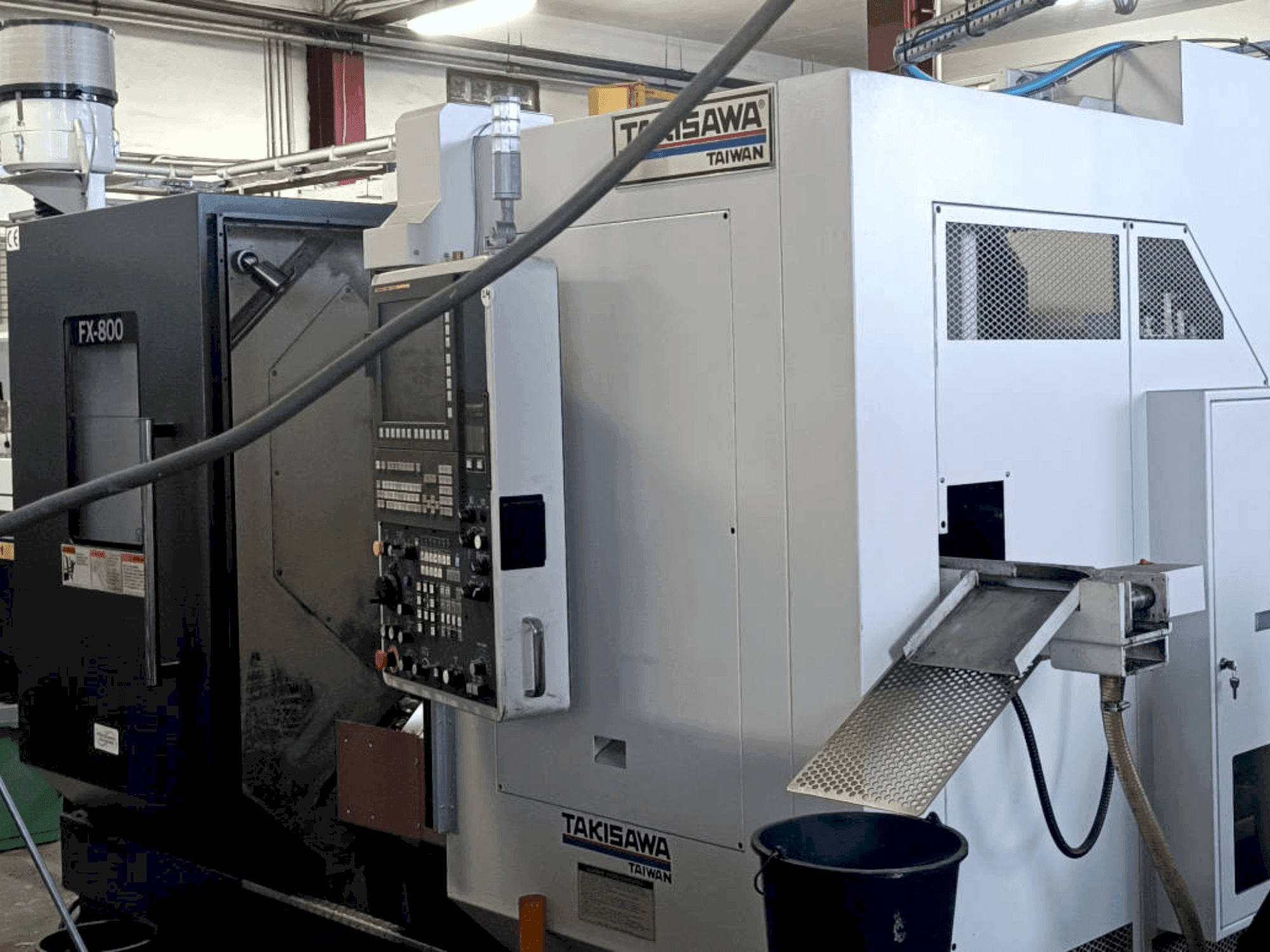

Takisawa - FX800DE-TUR-TAK-2017-00004

Additional equipment

• - Hydraulic clamping chuck Ø208 with hard clamping jaws // Hainbuch collet chuck SK 65 axfix
• - Clamping cylinders with clamping sleeves
• - Bar loader for 1500 mm bars with adjustable options
• - Parts removal unit up to Ø65 mm with conveyor belt
• - Coolant pumps (9 bar)
• - Air through the 2nd spindle for blowing and ejection
• - Extraction system with filter
• - Special parting-off holder for parting blades from EWS
• - Various clamping heads SK 65 // Various ER32 collets
• - Camera surveillance // Tool monitoring: RAKU RAKU

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Tool shank size: □25 mm
  • - Drill bar diameter: Ø40 mm
  • - 4 driven tool holders (axial), for er32 collet (angle heads) // 4 driven tool holders (radial), for er32 collet
  • - Power output of driven tools: 3. 7/5. 5 kw each
  • - Both spindles equipped with a disc brake (parking brake)
  • - Bar work capabilities up to 1500 mm // bar diameter through the main spindle: Ø65 (Ø67) // bar diameter through the feed spindle: Ø50 (Ø52) (occupied by automatic ejection)
  • - Camera for machine tool interior with sapphire lens and durable housing // real-time monitoring with optional touchscreen
  • - Ip68/169k rating for up to 100 bar high pressure
  • - Maintenance-free, high resolution, and suitable for 24/7 operation
  • - Various monitoring concepts and online support available

Extra information

• - Easy installation with one hole and one PO connection
