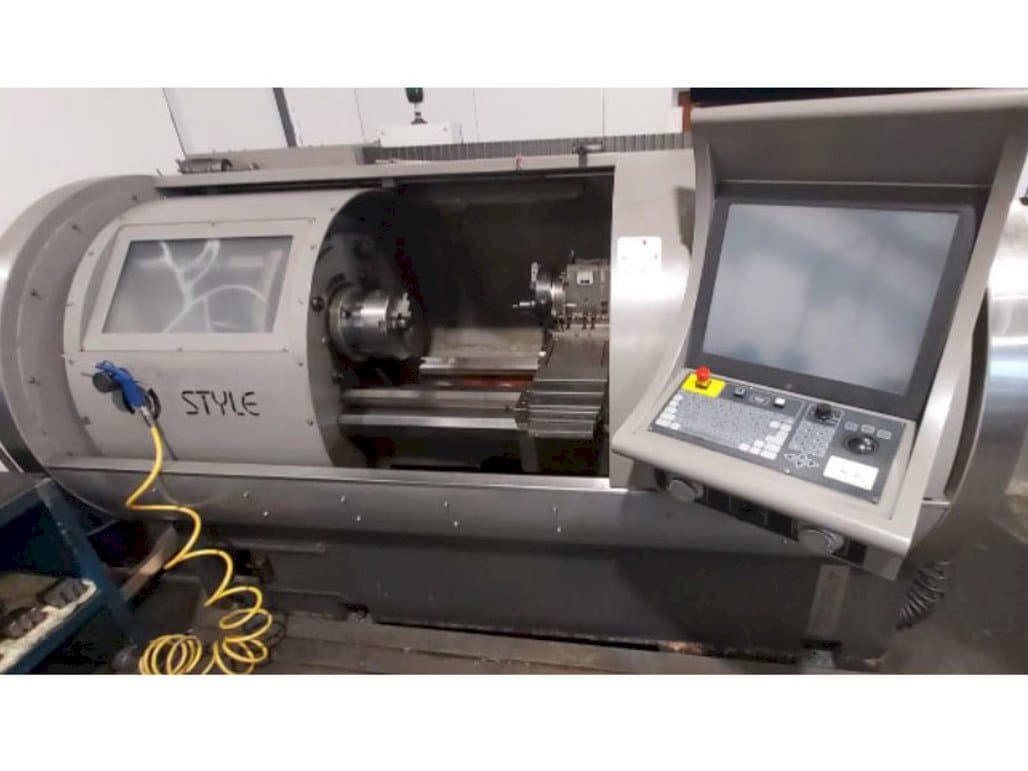

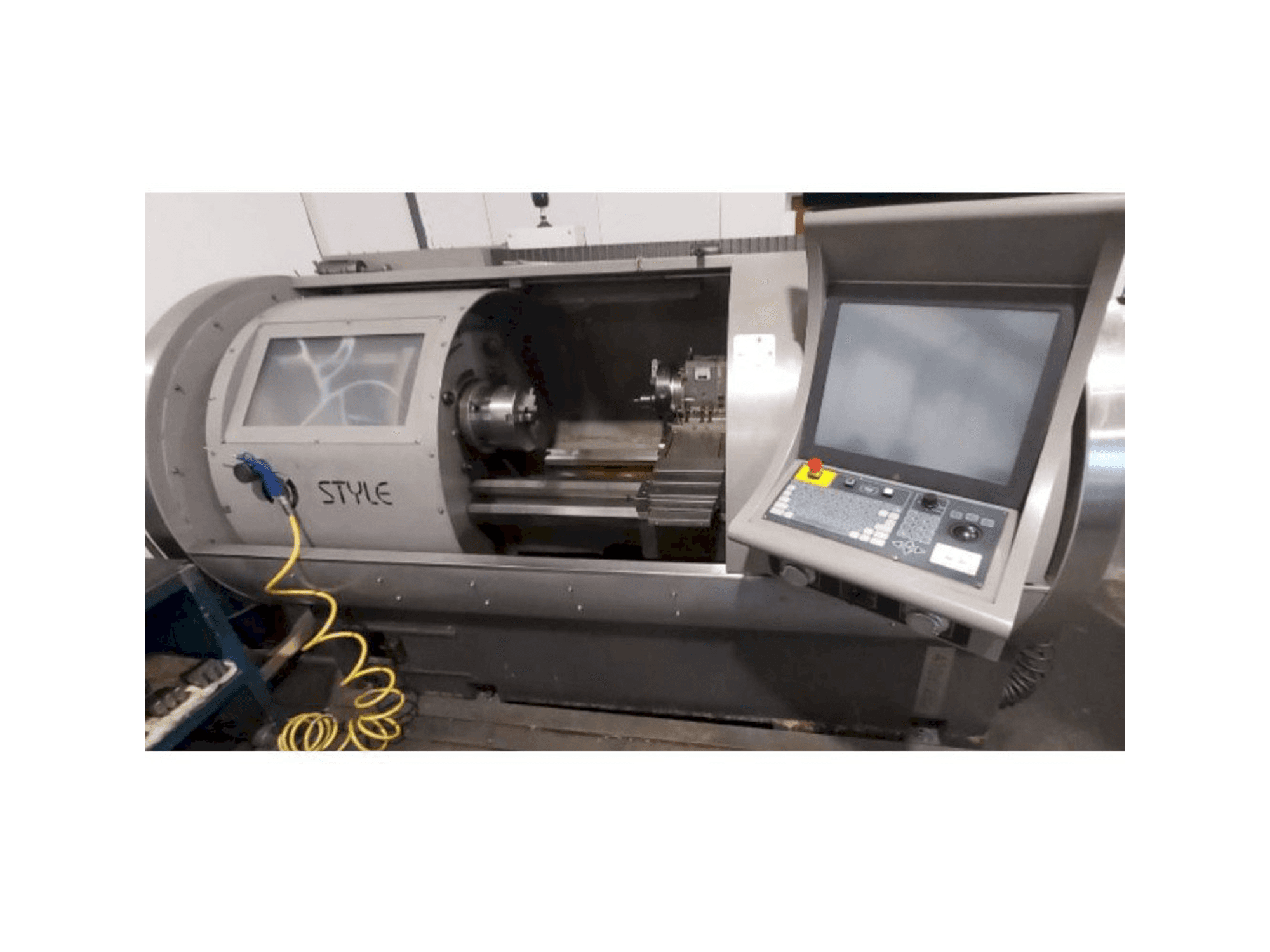

This STYLE 410 Lathe from 2007 was made in The Netherlands. Operated through a Style control 2018 edition Version 4.306411 Alpha control unit. This 2 axis machine counts with 1 spindle, 1 turret, and can work with a maximum turning length 1250 mm.

Overview

brand: STYLE
year: 2007
MODEL: 410
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - STYLE 410

General Data

Machine weight: 2400 kg

Control Unit

Model: control 2018 edition Version 4.306411 Alpha

Main drive

Number of spindles: 1
Number of axis: 2

Turret

Number of turrets: 1

Tools

Slots in storage: 8

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning diameter over bed 410 mm
- - Max. Turning diameter over cross slide 250 mm
- - Max. Turning length 1250 mm
- - Distance between centres 1000 mm
- - Bar capacity 80 mm
- - Bed widths 330 mm
- - Main motor power 16 kw
- - 250 mm 3 jaw chuck
- - Tailstock
Qualitative Machine Benefits:
- - Good condition
- - Regularly serviced

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
