Star RNC-16B Lathe

Show in original language

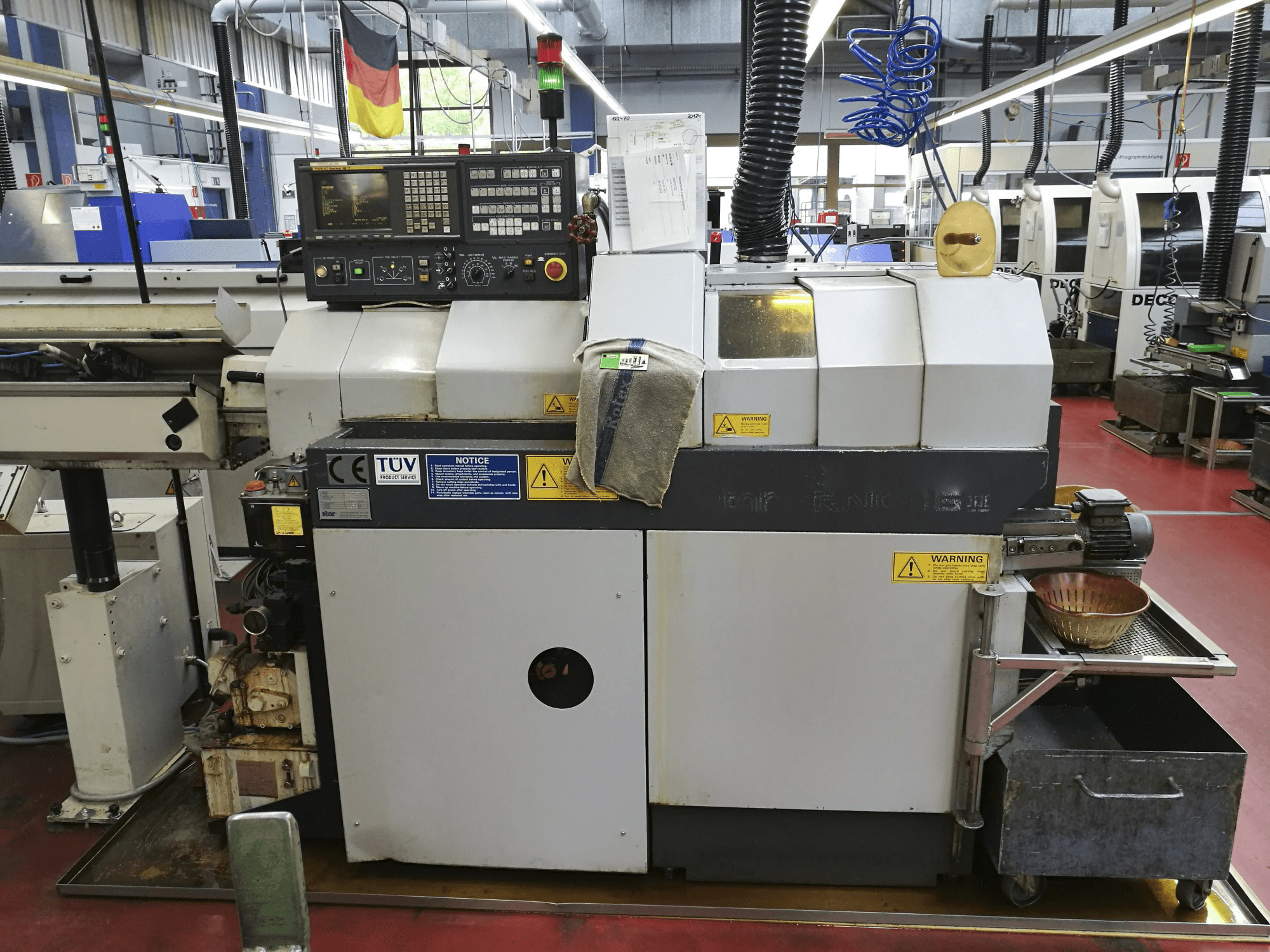

This Star RNC-16B Lathe from 1995 was made in Japan and has a production history of 84000 working hours. With a FANUC Series 18-T Control unit and a 3-spindle drilling head, this machine has mainly worked with 16 mm steel bars during the past and comes with a FMB Minimag 3200 Bar loader and several tool holder included.

Overview

brand: Star
year: 1995
MODEL: RNC-16B
production hours: 84000
application type: Turning
Location: Germany
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Star RNC-16B

General Data

Measurements width: 1195 mm
Measurements depth: 1815 mm
Measurements height: 1710 mm
Machine weight: 1500 kg

Control Unit

Model: Series 18-T
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 300-8000 1/min

Movement

X-AXIS Movement: 12000 mm/min
Y-AXIS Movement: 15000 mm/min
Z-AXIS Movement: 15000 mm/min

Tools

Max tool diameter: 16 mm
Max tool length: 130 mm

Media

Main electronic connection: 230 V
Power consumption: 5 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Bar loader FMB Minimag 3200
- 3-spindle drilling head
- 5x Tool holder type 3

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
