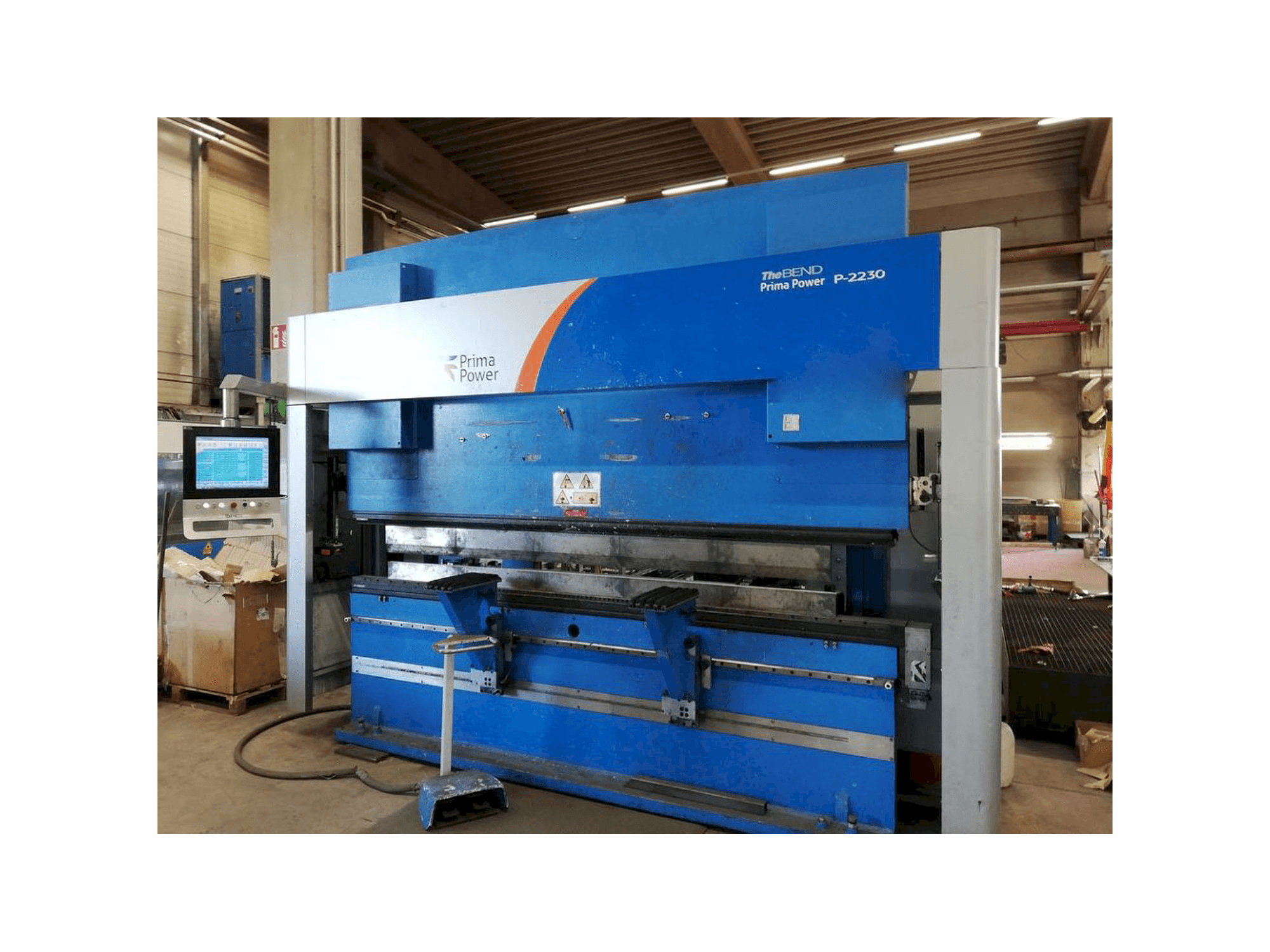

Prima Power P-2230 Bending Machine

Show in original language

This Prima Power P-2230 Bending Machine was manufactured in 2013 in Portugal and has an overall production time of 12843 working hours. Equipped with a Prima Electro Control unit, this high performance machine has mainly worked with 20 mm steel and stainless sheets during the past. Several Wila & Schmid tools are included within the machine as additional equipment.

Overview

brand: Prima Power
year: 2013
MODEL: P-2230
production hours: 12843
application type: Punching
Location: Austria
machine type: CNC Punching Machine
availability: Sold
control unit brand: PRIMA POWER

Technical Information - Prima Power P-2230

General Data

Measurements width: 3900 mm
Measurements depth: 2200 mm
Measurements height: 3000 mm
Machine weight: 10500 kg

Control Unit

Model: Prima Electro
CNC main language: German
CNC language customizable: Yes
Brand: PRIMA POWER

Main drive

Pressing force: 2200 kN
Bending length: 3000 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 800 mm
Workpiece weight: 3300 kg

Max Material thickness

Steel: 20 mm
Stainless steel: 12 mm

Media

Main electronic connection: 400 V

Additional equipment

- 3 sets under and upper bending tools from Wila & Schmid

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
