Muratec MW20 Lathe

Show in original language

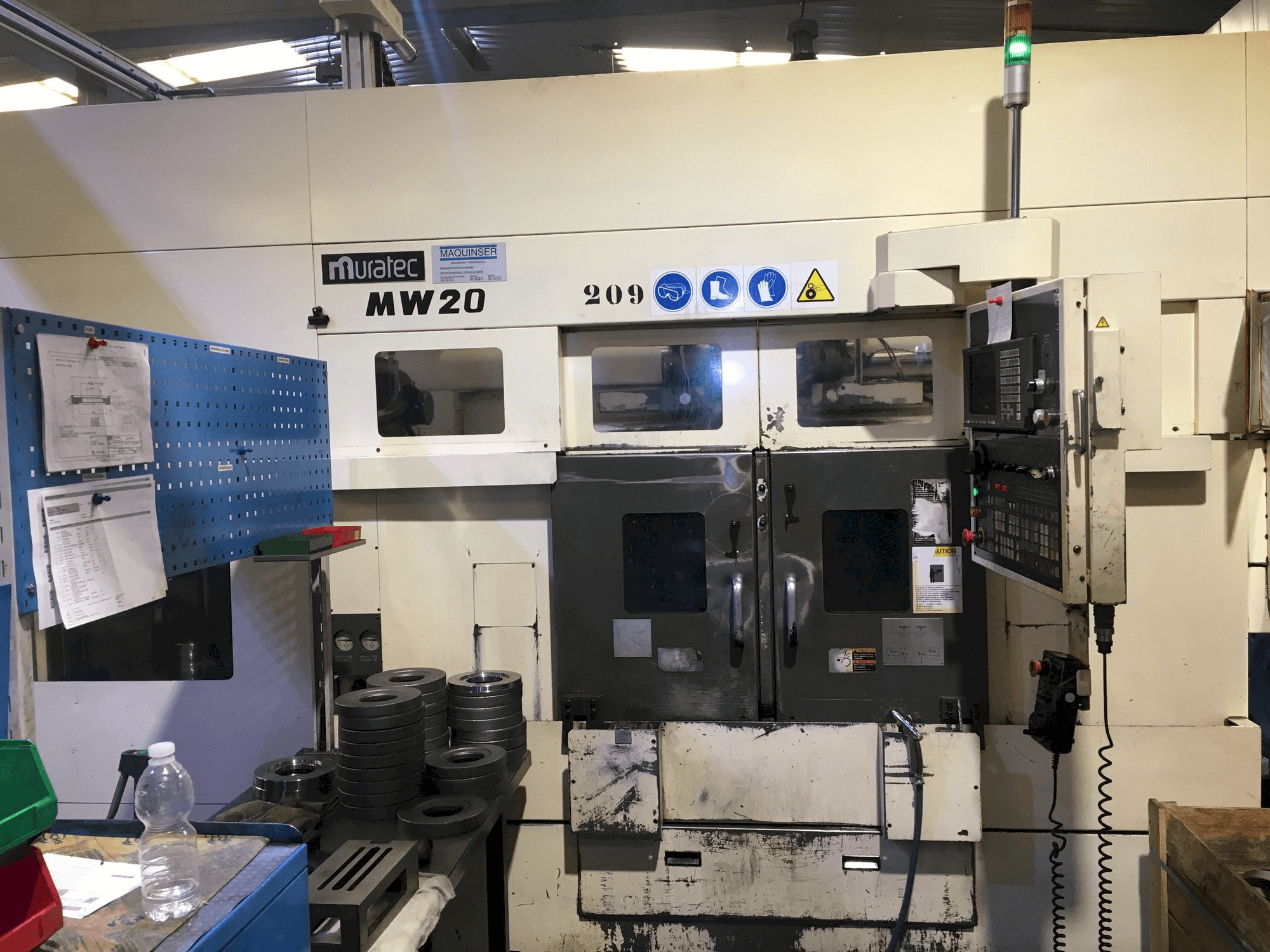

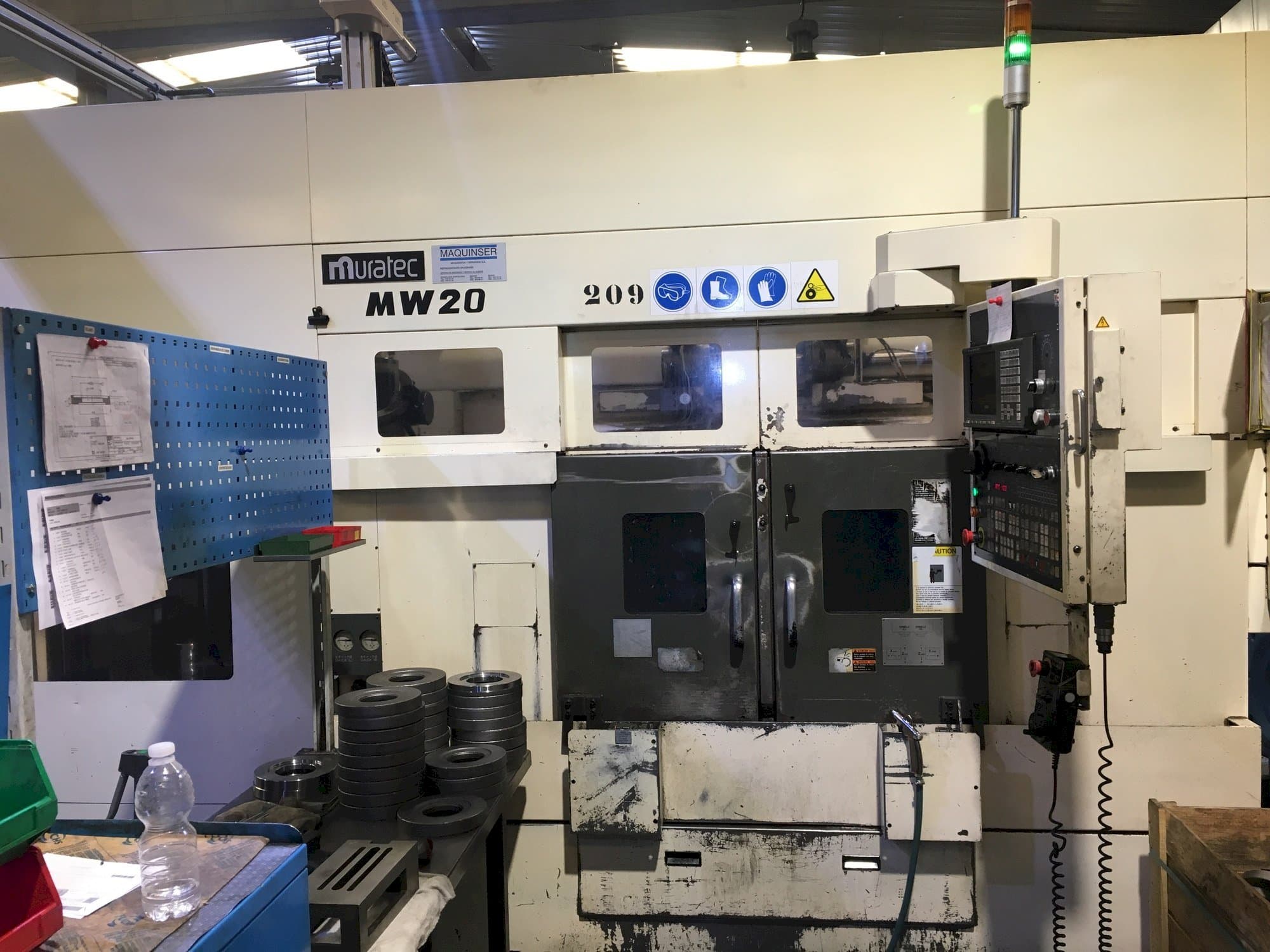

This Muratec MW20 Lathe from Japan was manufactured in 1996. It is operated through a GE Fanuc Series 20-T control unit. This machine incorporates two spindles and a spindle speed up to 3500 rpm. It is in good condition.

Overview

brand: Muratec
year: 1996
MODEL: MW20
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Muratec MW20

General Data

Measurements width: 2360 mm
Measurements depth: 2130 mm
Measurements height: 2100 mm
Machine weight: 7000 kg

Control Unit

Model: Series 20-T
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 35-3500 rpm 1/MIN

Movement

X-AXIS Movement: 190 mm
Z-AXIS Movement: 170 mm

Workpiece

Workpiece x: 190 mm
Workpiece z: 170 mm
Workpiece weight: 8 kg

Turret

Number of turrets: 10

Tools

Max tool diameter: 40 mm
Max tool length: 25 mm

Media

Main electronic connection: 200 V
Power consumption: 50,3 kVA

Additional Information

Machine history

Industries: Automotive

Machine Benefits

Qualitative Machine Benefits:
- - Good status
- - It has had a weekly and exhaustive maintenance

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
