Muratec MT20 Lathe

Show in original language

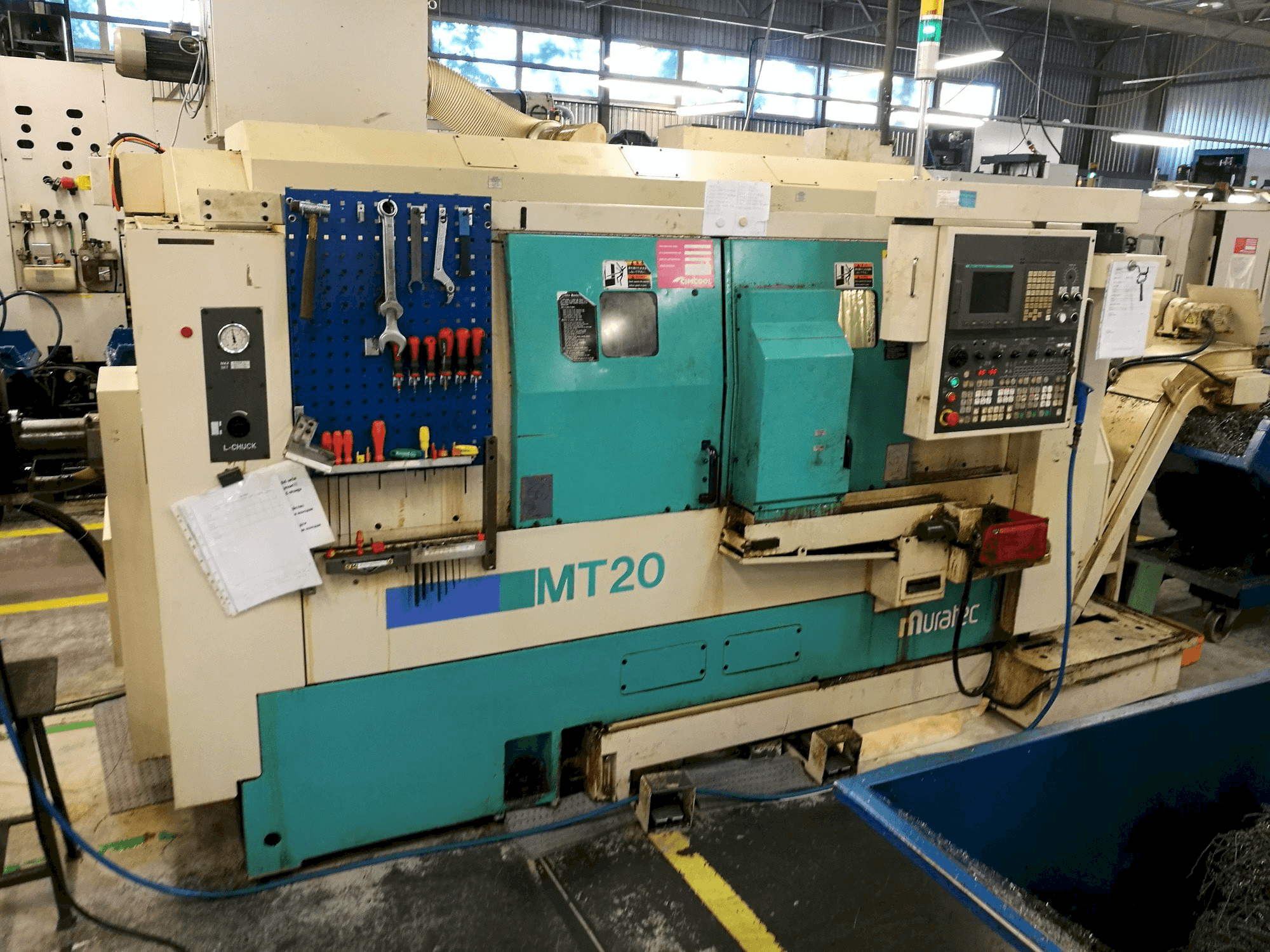

This Muratec MT20 Lathe was manufactured in the year 2003 in Japan. It has a production record of approximately 25000 working hours. It is equipped with a Muratec Fanuc CNC control unit. This machine counts with a spindle speed up to 42000 rpm. During the past, it has mainly worked with black steel. It includes a feeder as additional equipment.

Overview

brand: Muratec
year: 2003
MODEL: MT20
production hours: 25000
application type: Turning
Location: Estonia
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - Muratec MT20

General Data

Measurements width: 3700 mm
Measurements depth: 2100 mm
Measurements height: 2200 mm

Control Unit

Model: Fanuc CNC
CNC main language: English

Main drive

Spindle speed range: 4200 rpm 1/MIN

Movement

X-AXIS Movement: 230 mm
Y-AXIS Movement: 100 mm
Z-AXIS Movement: 250/810 MM

Workpiece

Workpiece drm: 260 mm
Workpiece x: 170 mm

Media

Main electronic connection: 3 phases 50 Hz 200

Additional equipment

- Feeder

Additional Information

Machine history

Material type: Black steel
Material thickness: 260 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
