MORI SEIKI MT2000S Lathe

Show in original language

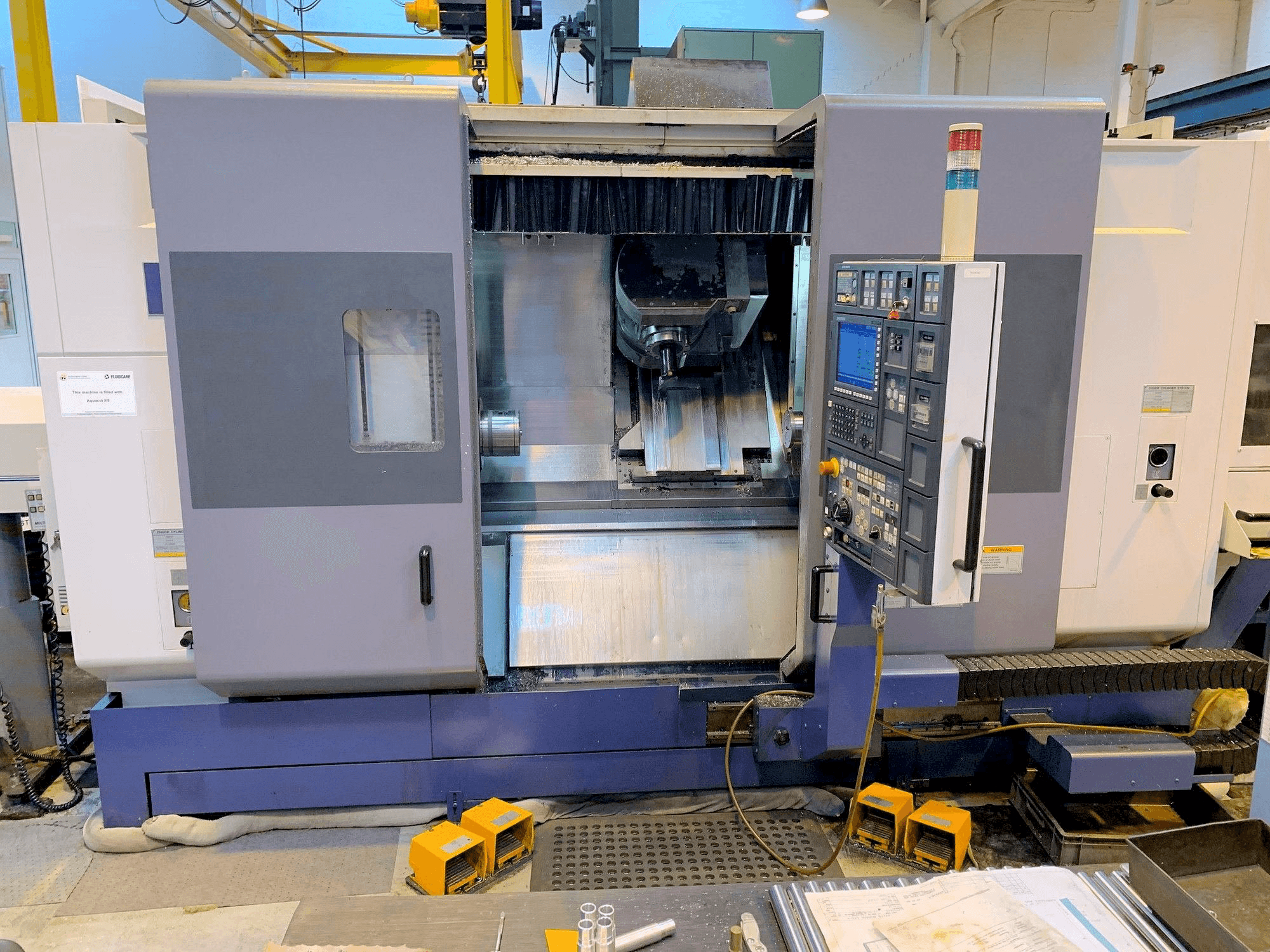

This MORI SEIKI MT2000S Lathe was manufactured on Japan in 2001. Equipped with a Mori Seiki MSX 501 III Control unit, this machine operates with a spindle speed up to 4500 rpm. This machine also counts with a milling head and a sub spindle.

Overview

brand: MORI SEIKI
year: 2001
MODEL: MT2000S
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold

Technical Information - MORI SEIKI MT2000S

General Data

Machine weight: 13500 kg

Control Unit

Model: MSX 501 III

Main drive

Number of spindles: 1
Spindle speed range: 4500 1/MIN

Turret

Number of turrets: 1

Tools

Slots in storage: 60

Media

Power consumption: 77 kVA
Chip conveyor: Yes

Additional equipment

- Barfeed magazine

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 700 mm
- - Max. Machining diameter 900mm
- - Distance between centres 1282 mm
- - Max. Cutting diameter/length 548/1018 mm
- - Milling head rpm 8000
- - Spindle/subspindle bore 73/56 mm
- - Subspindle speed 6000 rpm
- - C axis (0. 001degree) also on subspindle
- - Collet chuck
- - Coolant

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
