Miyano LZ-01RY2 Lathe machine

Show in original language

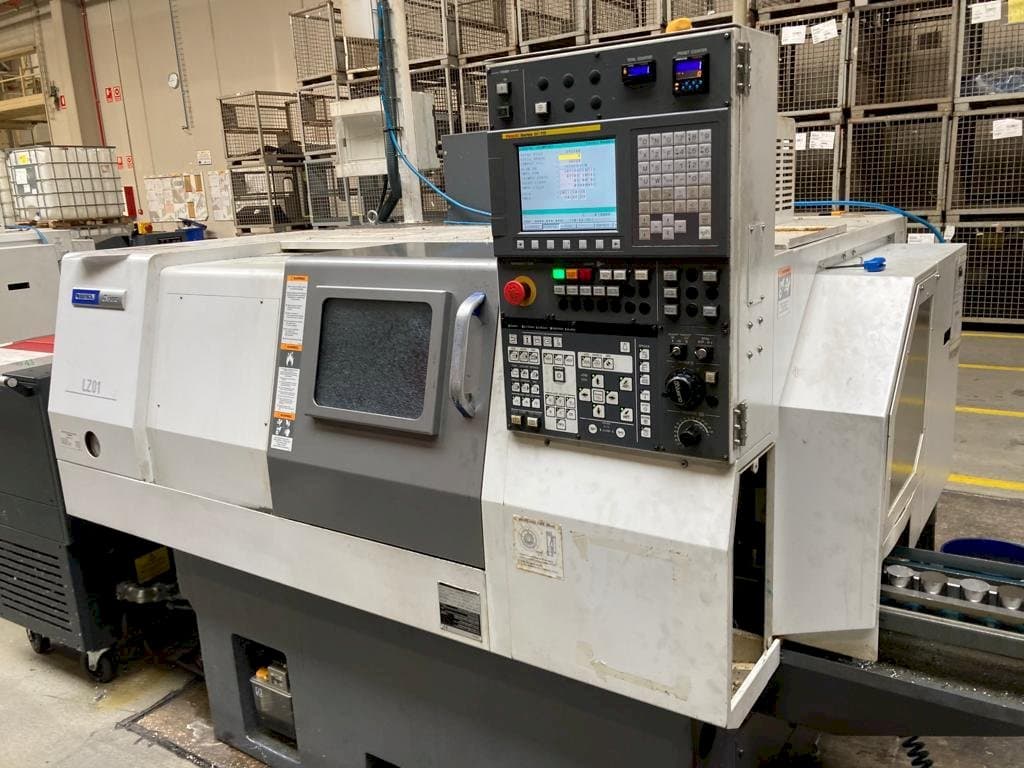

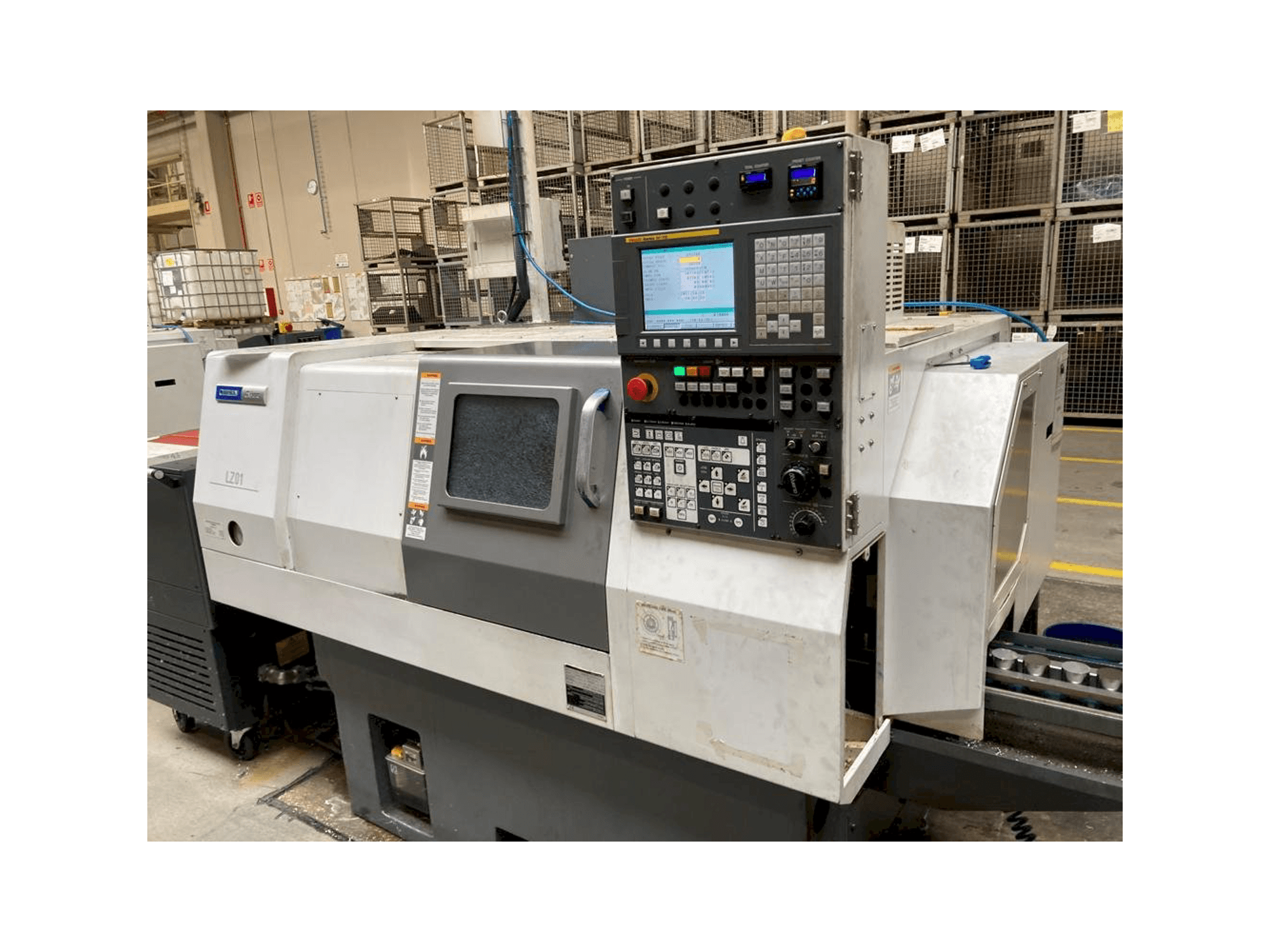

This Miyano LZ-01RY2 Lathe machine was built in 2018 in Japan and has been operative for 6770 hours. It’s equipped with a FANUC Series Oi-TD Control unit. This 4 axis machine works with a spindle speed between 60 - 6000 and a universal automatic parts feeder. This machine comes with a high pressure equipment Müller Combiloop CL4-400.

Overview

brand: Miyano
year: 2018
MODEL: LZ-01RY2
production hours: 6770
application type: Turning
Location: Spain
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - Miyano LZ-01RY2

General Data

Measurements width: 2100 mm
Measurements depth: 1555 mm
Measurements height: 1680 mm
Machine weight: 4000 kg

Control Unit

Model: Series Oi-TD
Brand: FANUC

Main drive

Spindle speed range: 60 - 6000 1/MIN

Movement

X-AXIS Movement: 245 mm
Y-AXIS Movement: (+-35) mm
Z-AXIS Movement: 240 mm

Workpiece

Workpiece drm: 490 MM

Tools

Slots in storage: 12

Additional equipment

- High Pressure Equipment Müller Combiloop CL4-400

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Bar diameter on main spindle 70 mm
- - Max. Bar diameter on main subspindle 80 mm
- - Inner diameter of spindle 46 mm
- - Number of motorized stations on turret 6
- - Maximum workpiece size in the feeder Ø70x80 mm
- - Minimum workpiece size in the feeder Ø10x10 mm
- - Maximum workpiece weight in the feeder 0,7x2 kg
Qualitative Machine Benefits:
- - Perfect condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
