- Microcut Modern BNC-2260XL Lathe

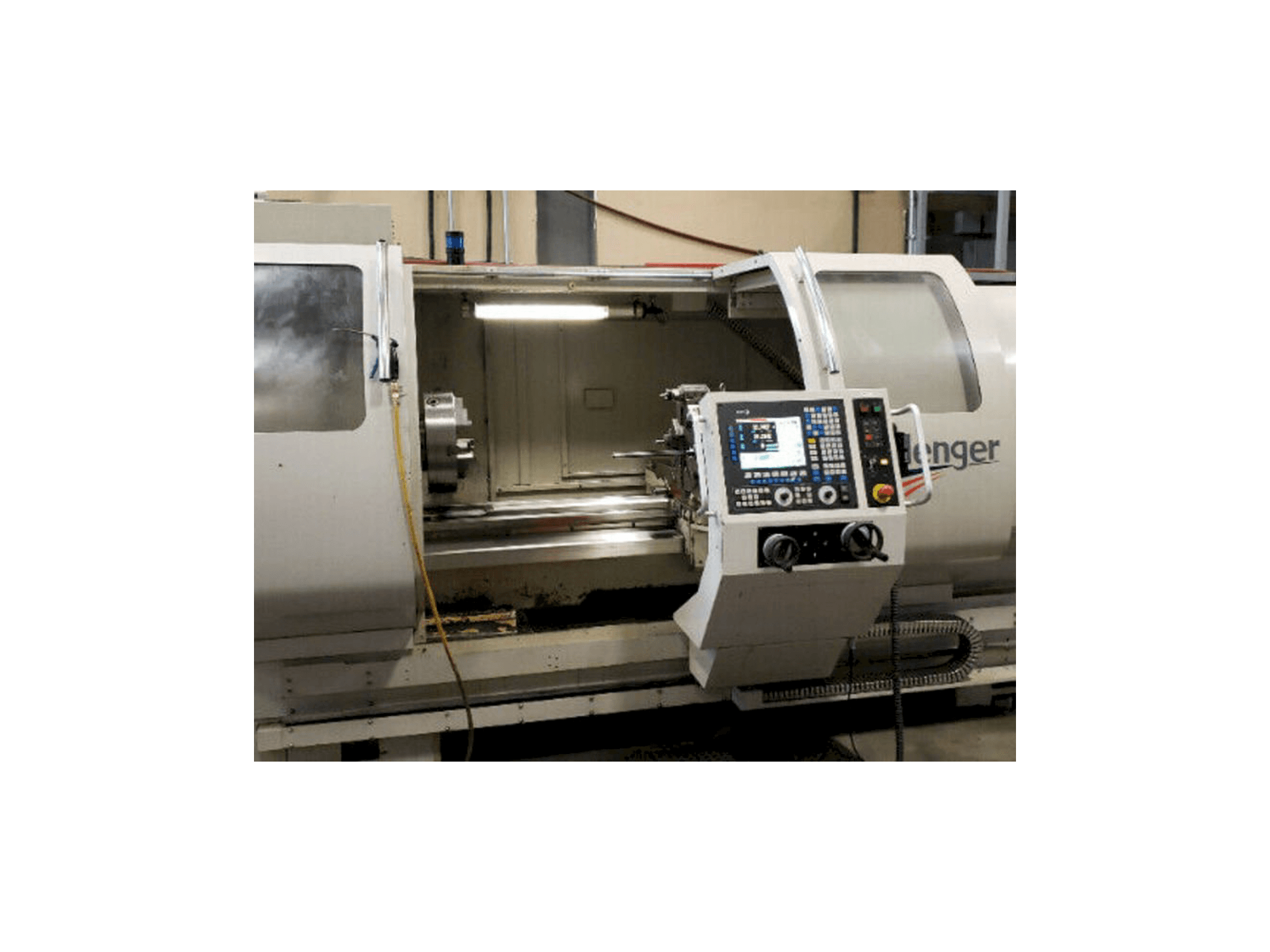

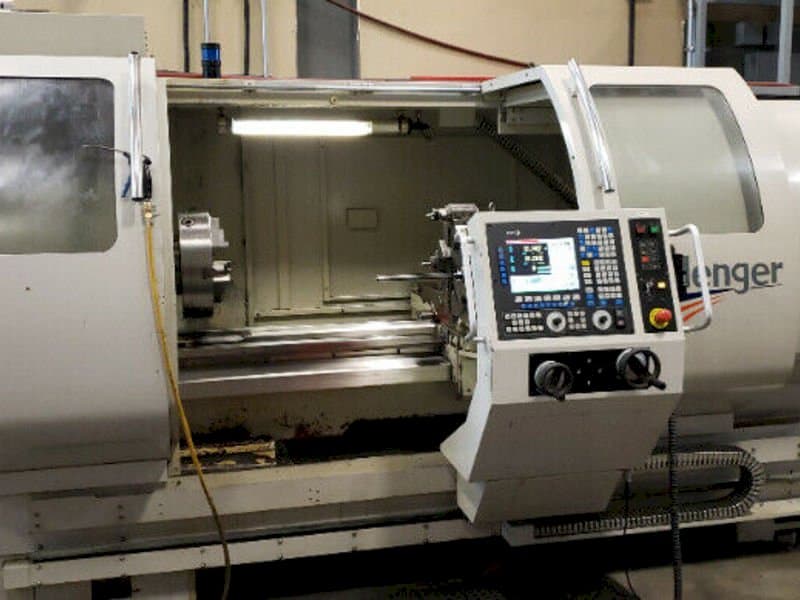

This Microcut Modern BNC-2260XL Lathe was manufactured in the year 2008. This machine operates with a spindle speed range of 80-3500 rpm.
Overview
- brand: MICROCUT
- year: 2008
- MODEL: Modern BNC-2260XL
- application type: Turning
- Location: Canada
- machine type: Horizontal Turning Machine
- availability: Sold
Technical Information - MICROCUT Modern BNC-2260XL
General Data
- Measurements width: 42672 mm
- Measurements height: 1524 mm
- Machine weight: 3293 kg
Main drive
- Spindle speed range: 80-3500 1/MIN
Movement
- X-AXIS Movement: 2032 mm
- X-AXIS Rapid traverse: 6096 mm/min
- X-AXIS Accuracy: 0.00508 mm
- Z-AXIS Movement: 457 mm
- Z-AXIS Rapid traverse: 8001 mm/min
- Z-AXIS Accuracy: 0.00508 mm
Table
- Distance between: 1524 mm
Tail Stock
- Pinol way: 178 mm
- Pinol tool taper: MT-5
Additional Information
- Technical Machine Benefits:
- - Spindle nose d1-8
- - Spindle bearing taper roller p5
- - Ac servo motor 20 hp
- - Xz feed motor 2. 5 hp
- - Coolant pump 1/8 hp
- - Width of bed: 46 mm
- - Swing over bed: 560 mm
- - Swing over cross slide: 305 mm
- - Z ball screw 50mm x 10mm c5
- - X ball screw 25mm x 5mm c5
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
