Mazak Super QuickTurn 15MS Lathe

Show in original language

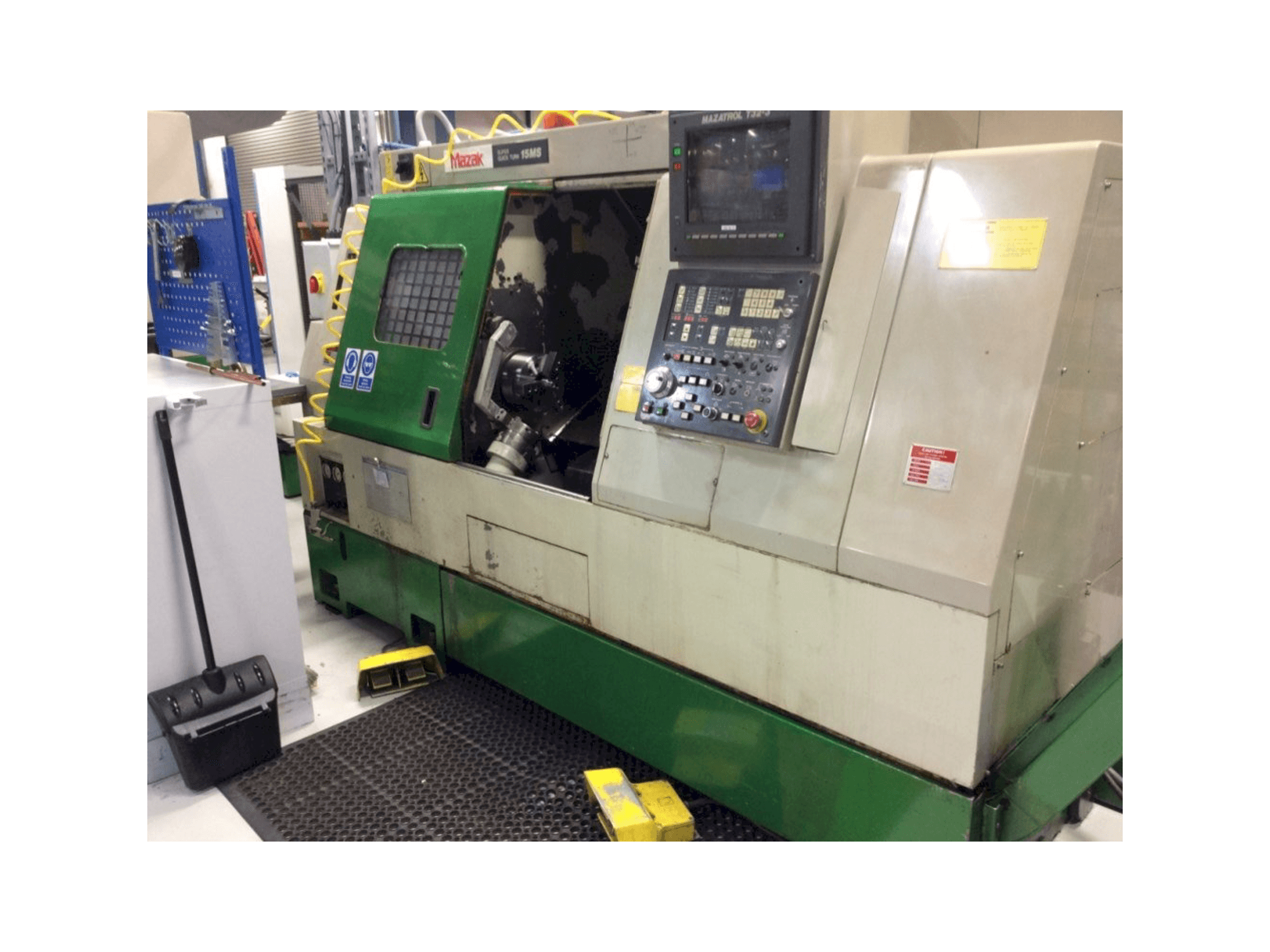

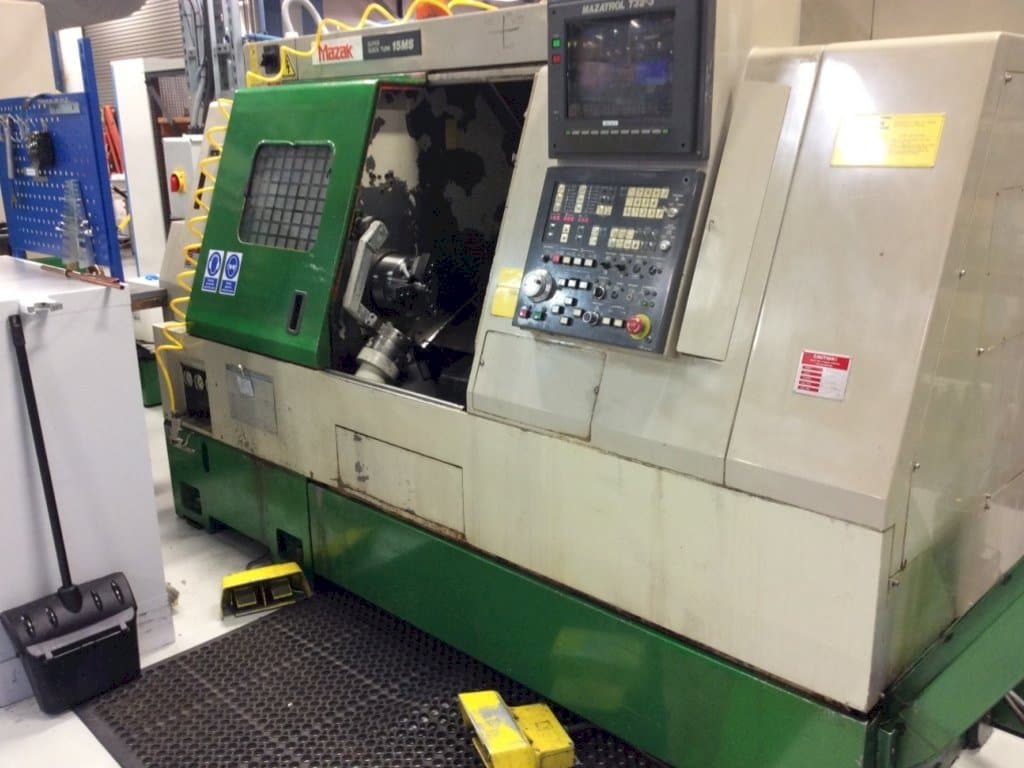

This Mazak Super QuickTurn 15MS Lathe was made in 1992 in Japan. Operated through a Mazak Mazatrol T32-3 Control unit, this twin spindle lathe can perform with a speed up to 5000 rpm. It incorporates a 12 station driven tool turret and a tool measuring probe. Several additional equipment is included.

Overview

brand: Mazak
year: 1992
MODEL: Super QuickTurn 15MS
application type: Turning
Location: Ireland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Super QuickTurn 15MS

General Data

Measurements width: 1885 mm
Measurements depth: 1290 mm
Measurements height: 1760 mm
Machine weight: 4300 kg

Control Unit

Model: Mazatrol T32-3
CNC main language: English
CNC language customizable: Yes
Brand: MAZATROL

Main drive

Number of spindles: 2
Spindle speed range: 5000 1/MIN

Movement

X-AXIS Movement: 220 mm
Y-AXIS Movement: 510 mm

Workpiece

Workpiece drm: 240 mm
Workpiece z: 508 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Main electronic connection: 400 V
Power consumption: 60 kVA
Chip conveyor: Yes

Additional equipment

- Selection of Tool Holders
- Tool Measuring Probe
- Kitagawa B-208 Hydrualic Chuck
- Kitagawa B-206 Hydrualic Chuck

Additional Information

Machine history

End product: Medical device parts

Machine Benefits

Technical Machine Benefits:
- - Twin spindle lathe
- - 12 station driven tool turret
- - Tool measuring probe
- - 52mm bar capacity

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
