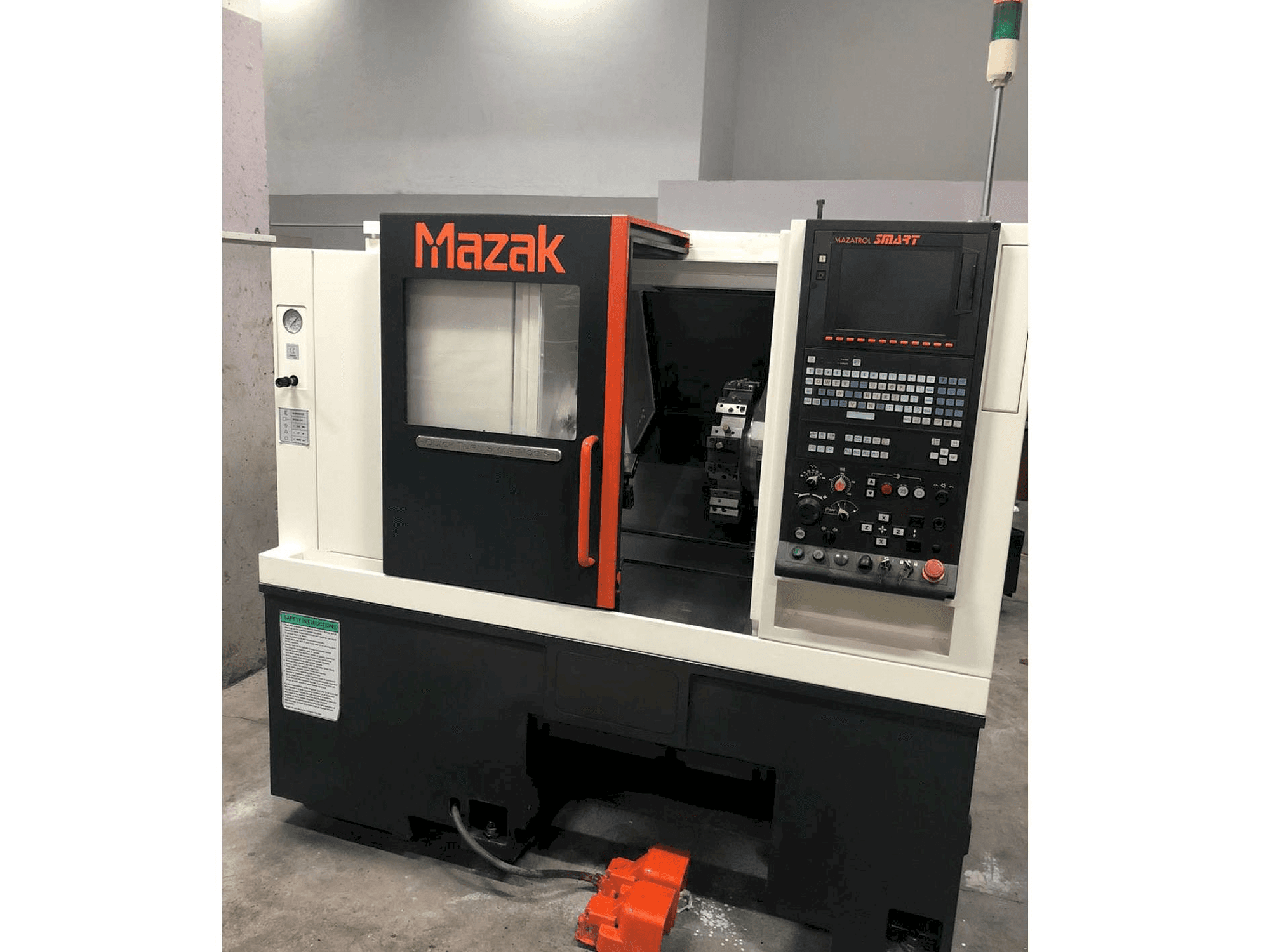

Mazak Quick Turn Smart 100 S

Show in original language

This Mazak Quick Turn Smart 100 S lathe was manufactured in 2011. This 2 axis is equipped with a MAZATROL smart control unit. This machine works with a spindle speed up to 6000 rpm and a machining diameter 280 mm. It is in very good conditions.

Overview

brand: Mazak
year: 2011
MODEL: Quick Turn Smart 100 S
application type: Turning
Location: Turkey
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Quick Turn Smart 100 S

General Data

Measurements width: 1700 MM
Measurements depth: 1630 MM
Measurements height: 1800 MM
Machine weight: 3500 KG

Control Unit

Model: SMART
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Spindle motor power: (30MIN/100%) 11/7.5 KW
Number of axis: 2

Movement

X-AXIS Movement: 200 MM
X-AXIS Rapid traverse: 33 M/MIN
Z-AXIS Movement: 340 MM
Z-AXIS Rapid traverse: 36 M/MIN

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Main electronic connection: 50/60 HZ
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Swing over bed 580 mm
- - Maximum machining diameter 280 mm
- - Maximum machining length 310 mm
- - Maximum bar work capacity 52 mm
- - Chuck size 6 in
- - Tailstock, coolant
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
