➤ Used Mazak Multiplex 6200II For Sale | gindumac.com

Show in original language

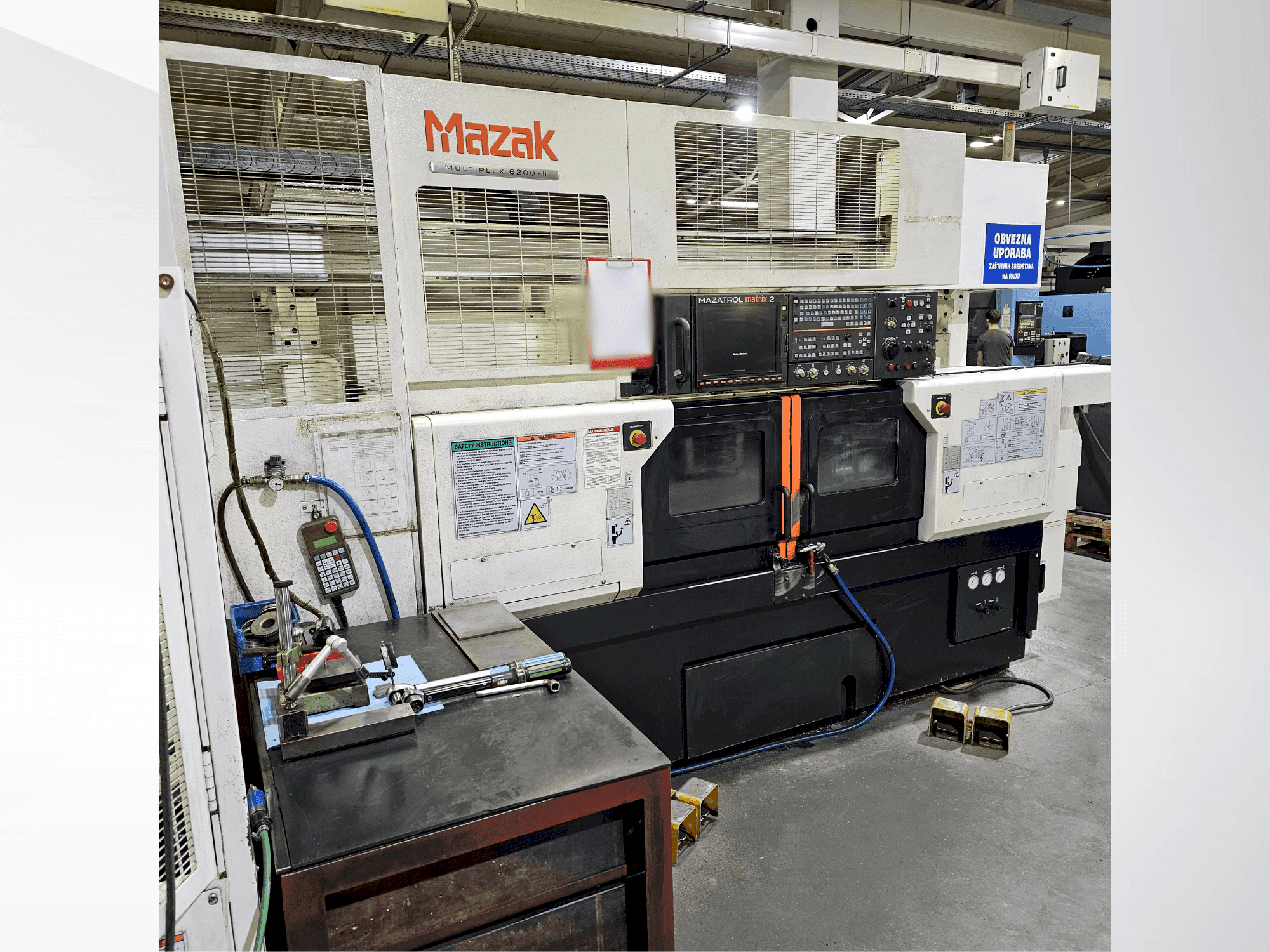

This 5-axis Mazak Multiplex 6200II multi-spindle turning machine was manufactured in 2011. It features dual spindles with a maximum speed of 5000 RPM and dual turrets, each supporting 12 tools. The machine offers a chuck size of 320 mm and a maximum machining diameter of 1190 mm. If you are looking to get high-quality turning capabilities, consider the Mazak Multiplex 6200II machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: Mazak
year: 2011
MODEL: Multiplex 6200II
application type: Turning
Location: Croatia
machine type: Multi-Spindle Turning Machine
availability: Immediately
control unit brand: MAZATROL

Technical Information - Mazak Multiplex 6200II

General Data

Measurements width: 2121 MM
Measurements depth: 3570 MM
Measurements height: 2000 MM
Machine weight: 8480 KG

Control Unit

Brand: MAZATROL

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: AC 22 kW / 15 kW
Main motor power: AC 3.7 kW
Number of axis: 5

Movement

X-AXIS Movement: 240 mm
X-AXIS Rapid traverse: 30500 mm/min
Y-AXIS Movement: ± 51 mm
Z-AXIS Movement: (Left/Right): 440 mm / 495 mm
C-AXIS Movement: 360° with 0.001° increments MM
C-AXIS Rapid traverse: 30500 mm/min

Workpiece

Workpiece drm: 1190 mm

Turret

Number of turrets: 2
Number of tool slots: 12 x 2 (all positions can mount rotary tools)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck size: 320 mm
- - Distance between spindles (home position): 260 mm
- - Distance between spindles (home position): 260 mm
- - Tool shank height: 25 mm
- - Boring bar diameter: 40 mm
- - Turret indexing time: 0. 2 seconds per step
- - Rotary tool speed: 4500 rpm (optional: 6000 rpm)
- - Drilling capacity: 20 mm
- - Milling capacity: 20 mm
- - Tapping capacity: m12
Qualitative Machine Benefits:
- - Coolant pump: 0. 10 kw x 2
- - Power requirement: 60. 3 kva
- - Air pressure: 0. 5 mpa, 400 l/min
- - Coolant tank capacity: 220 l

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
