- Mazak Integrex 200 III-S Lathe machine

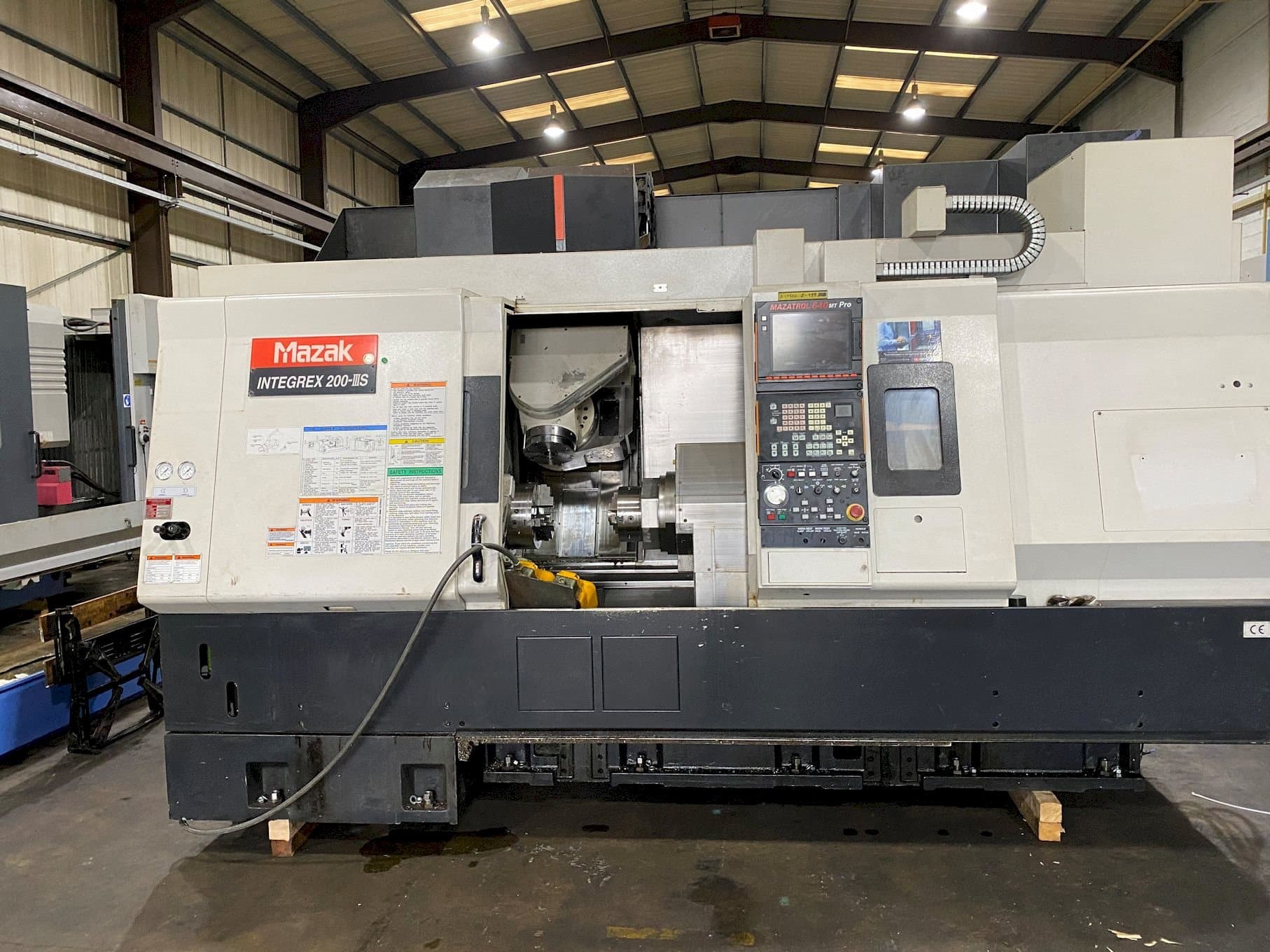

This Mazak Integrex 200 III-S Lathe machine was manufactured in 2004 in Japan. This 6 axis machine is operated through a MAZATROL 640MT PRO control unit. It work with a spindle speed up to 5000 rpm and a spindle motor Power of 22/15 kW. This machine is in good conditions.
Overview
- brand: Mazak
- year: 2004
- MODEL: Integrex 200 III-S
- application type: Turning
- Location: United Kingdom
- machine type: Turn-Mill Centre
- availability: Sold
- control unit brand: Mazak
Technical Information - Mazak Integrex 200 III-S
General Data
- Measurements width: 3820 mm
- Measurements depth: 2060 mm
- Measurements height: 2597 mm
- Machine weight: 9600 kg
Control Unit
- Brand: Mazak
- Model: MAZATROL 640MT PRO
Main drive
- Number of spindles: 2
- Spindle speed range: 5000 1/MIN
Movement
- X-AXIS Movement: 580 mm
- Y-AXIS Movement: +/- 80 mm
- Z-AXIS Movement: 1045 mm
- B-AXIS Movement: -30 /+195 DEGREES MM
Tools
- Slots in storage: 40
- Max weight: 10 KG
- Max tool diameter: 90 MM
- Type of tool holder: Capto C6
Media
- Power consumption: 78.6 kVA
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Swing over bed 660 mm
- - Maximum cutting length 1000 mm
- - Maximum cutting diameter 380 mm
- - Bar capacity 65 mm
- - Milling motor power 15 kw, max. Rpm 12. 000
- - C axis 0. 001 degrees
- - Spindle motor power 22/15 kw
- - Rapid feedrates xyz: 38 x 26 x 38m/min
- - Sub-spindle speed 5000 rpm, power 18. 5 kw, c axis 0. 001 degrees
- - 3 jaw chuck 200 mm, tool setter, coolant, swarf conveyor, b axis
- Qualitative Machine Benefits:
- - Good condition
- - Machine manual
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
